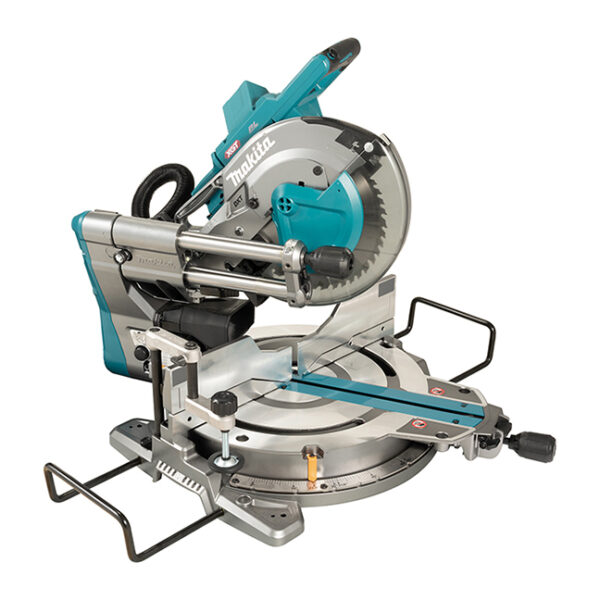

Makita LS004GZ 40V MAX XGT 10″ Brushless Mitre Saw with AWS




UOM: EA SKU: LS004GZ Categories: , , UPC: 088381748544


Makita LS004GZ 40V MAX XGT 10″ Brushless Mitre Saw with AWS

The Makita LS004GZ 40V MAX XGT 10″ Brushless Mitre Saw with AWS includes:

  • Tool only – batteries and charger sold separately
  • 10″ C.T. Blade 45T (B-62103)
  • Dust Bag (122852-0)
  • Vertical Vise (126617-2)
  • Triangle Rule (762001-3)
  • Holder 200 (327095-1)
  • Hex Wrench 6 (781044-6)
  • Model model no. LS004GZ
  • Cuts up to 3-5/8″ x 11″
  •  AWS (Auto-Start Wireless System):
        • Uses Bluetooth® technology to communicate between tool and vacuum
        • Enables wireless control when used with Makita AWS cordless tools
  • Independent AWS push-button switch:
        • Allows operator to run dust extractor when mitre saw not running
        • Maximizes dust collection and cleaning after operation
  • Brushless DC motor:
        • High power to weight and size ratio
        • Generates less heat buildup
        • Ideal for prolonged use in manufacturing / production applications
  • “Zero clearance” rail forward design: enables saw to be placed against wall to maximize effective work space
  • Gear reduction system maximizes cutting capacity
  • Sliding left and right side fences:
        • Adjust outwards when bevel cutting
        • Adjust inwards for increased support of small or delicate materials
  • Electric brake stops blade 3-5 seconds after trigger release for increased operator safety
  • Soft start gradually increases speed to eliminate start up shock
  • Constant speed control
  • LED cut line indication:
        • Enables easy and precise alignment of blade and material
        • Allows fast and accurate cutting with no adjustment required
  • Bevel capacity: 48o left or right
  • Mitre capacity: 60o left or right with positive stops at 0o, 15o, 22.5o, 31.6o & 45o
  • Mitre angle lock with free spin releasing and locking levers
  • Dual dust collection ports for improved dust collection
  • 2-stage safety switch for increased operator safety
  • Ergonomic vertical soft rubber grip design for vibration absorption and comfortable operation
  • Battery voltage and chemistry: 40V Lithium Ion
  • Blade diameter: 10″ (255 mm)
  • Arbor size: 5/8″ (15.88 mm)
  • No load speed: 3,600 RPM
  • Vibration level: 2.5 m/s2
  • Noise level: 91 dB(A)
  • Dimensions (L x W x H): 31-3/4″ x 25-3/8″ x 26″  (805 mm x 644 mm x 660 mm)
  • Net weight: 57.1 lbs (25.9 kg)
