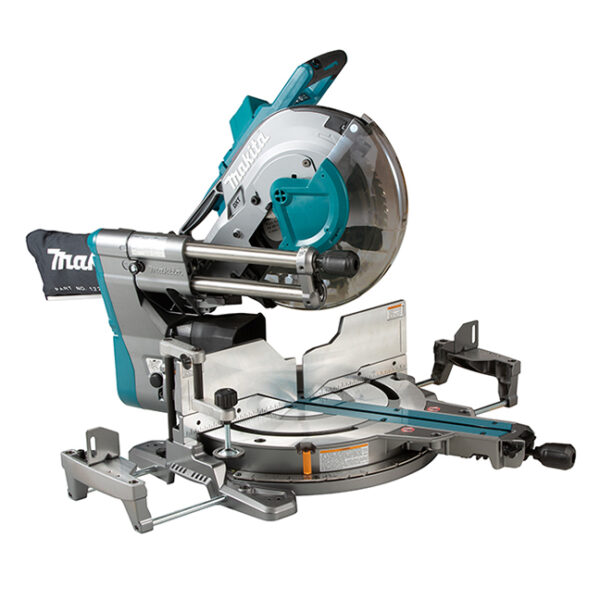

Makita LS003GZ 40V MAX XGT 12″ Brushless Mitre Saw with AWS

Makita LS003GZ 40V MAX XGT 12" Brushless Mitre Saw with AWS

$1,099.00

Available on backorder

UOM: EA SKU: LS003GZ Categories: , , , , UPC: 088381746304

Description

Makita LS003GZ 40V MAX XGT 12″ Brushless Mitre Saw with AWS

The Makita LS003GZ 40V MAX XGT Brushless 12” Mitre Saw with AWS includes:

  • Tool only – batteries and charger sold separately
  • 12″ C.T. Blade 60T (B-66983)
  • Dust Bag (122852-0)
  • Triangle Rule (762001-3)
  • Vertical Vise (126617-2)
  • Holder 90 (327145-2)
  • Hex Wrench 6 (781044-6)

Also available:

Features:
  • Model model no. LS003GZ
  • Cuts up to 4-1/4″ x 14-1/4″
  •  AWS (Auto-Start Wireless System):
        • Uses Bluetooth® technology to communicate between tool and vacuum
        • Enables wireless control when used with Makita AWS cordless tools
  • Independent AWS push-button switch:
        • Allows operator to run dust extractor when mitre saw not running
        • Maximizes dust collection and cleaning after operation
  • Brushless DC motor:
        • High power to weight and size ratio
        • Generates less heat buildup
        • Ideal for prolonged use in manufacturing / production applications
  • “Zero clearance” rail forward design: enables saw to be placed against wall to maximize effective work space
  • Gear reduction system maximizes cutting capacity
  • Sliding left and right side fences:
        • Adjust outwards when bevel cutting
        • Adjust inwards for increased support of small or delicate materials
  • Electric brake stops blade 3-5 seconds after trigger release for increased operator safety
  • Soft start gradually increases speed to eliminate start up shock
  • Constant speed control
  • LED cut line indication:
        • Enables easy and precise alignment of blade and material
        • Allows fast and accurate cutting with no adjustment required
  • Bevel capacity: 48o left or right
  • Mitre capacity: 60o left or right with positive stops at 0o, 15o, 22.5o, 31.6o & 45o
  • Mitre angle lock with free spin releasing and locking levers
  • Dual dust collection ports for improved dust collection
  • 2-stage safety switch for increased operator safety
  • Ergonomic vertical soft rubber grip design for vibration absorption and comfortable operation
Specifications:
  • Battery voltage and chemistry: 40V Lithium Ion
  • Blade diameter: 12″ (305 mm)
  • Arbor size: 1″ (25.4 mm)
  • No load speed: 3,600 RPM
  • Vibration level: 2.5 m/s2
  • Noise level: 91 dB(A)
  • Dimensions (L x W x H)35-1/4″ x 27-1/4″ x 28-1/2″  (898 mm x 690 mm x 725 mm)
  • Net weight: 65.7 lbs (29.8 kg)
Basic Cutting capacities (H x W) with 305 mm (12″) diameter blade
Miter Angle Bevel Angle
45º (Left) 45º (Right)
61 mm x 382 mm
(2-3/8″ x 15″)
71 mm x 363 mm
(2-13/16″ x 14-1/4″)

92 mm x 382 mm
(3-5/8″ x 15″)
107 mm x 363 mm
(4-1/4″ x 14-1/4″)
44 mm x 382 mm
(1-3/4″ x 15″)
54 mm x 363 mm
(2-1/8″ x 14-1/4″)
45° (left and right)
61 mm x 268 mm
(2-3/8″ x 10-1/2″)
71 mm x 255 mm
(2-13/16″ x 10″)
92 mm x 268 mm
(3-5/8″ x 10-1/2″)
107 mm x 255 mm
(4-1/4″ x 10″)
44 mm x 268 mm
(1-3/4″ x 10-1/2″)
54 mm x 255 mm
(2-1/8″ x 10″)
60° (left and right)
92 mm x 185 mm
(3-5/8″ x 7-1/4″)
107 mm x 178 mm
(4-1/4″ x 7″)

Additional information

Weight 66 lbs
