Makita LS004GM102 40V MAX XGT 10″ Brushless Dual Compound Sliding Mitre Saw with AWS Kit

Description

Makita LS004GM102 40V MAX XGT 10″ Brushless Dual Compound Sliding Mitre Saw with AWS Kit

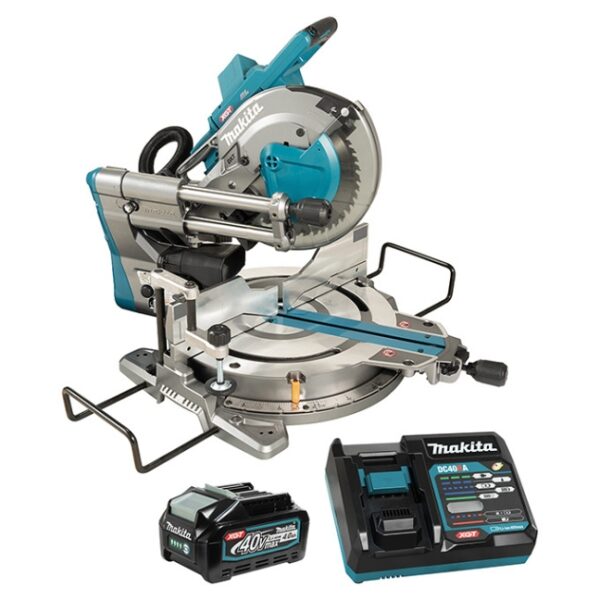

The Makita LS004GM102 40V MAX XGT 10″ Brushless Dual Compound Sliding Mitre Saw with AWS Kit includes:

• LS004GZ 40V MAX XGT 10″ Brushless Mitre Saw with AWS
• 40V Max (4.0Ah) Li-Ion Battery BL4040 (191E81-6)
• Rapid Charger (DC40RA)
• 10″ C.T. Blade 45T (B-62103)
• Dust Bag (122852-0)
• Vertical Vise (126617-2)
• Triangle Rule (762001-3)
• Holder 200 (327095-1)
• Hex Wrench 6 (781044-6)

Features:

• Model model no. LS004GM102
• Cuts up to 3-5/8″ x 11″
•  AWS (Auto-Start Wireless System):
  • • • Uses Bluetooth® technology to communicate between tool and vacuum
      • Enables wireless control when used with Makita AWS cordless tools
• Independent AWS push-button switch:
  • • • Allows operator to run dust extractor when mitre saw not running
      • Maximizes dust collection and cleaning after operation
• Brushless DC motor:
  • • • High power to weight and size ratio
      • Generates less heat buildup
      • Ideal for prolonged use in manufacturing / production applications
• “Zero clearance” rail forward design: enables saw to be placed against wall to maximize effective work space
• Gear reduction system maximizes cutting capacity
• Sliding left and right side fences:
  • • • Adjust outwards when bevel cutting
      • Adjust inwards for increased support of small or delicate materials
• Electric brake stops blade 3-5 seconds after trigger release for increased operator safety
• Soft start gradually increases speed to eliminate start up shock
• Constant speed control
• LED cut line indication:
  • • • Enables easy and precise alignment of blade and material
      • Allows fast and accurate cutting with no adjustment required

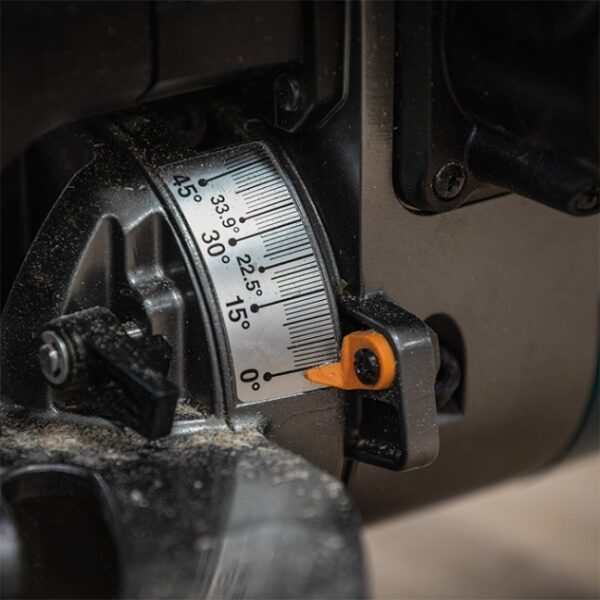

• Bevel capacity: 48^o left or right
• Mitre capacity: 60^o left or right with positive stops at 0^o, 15^o, 22.5^o, 31.6^o & 45^o
• Mitre angle lock with free spin releasing and locking levers
• Dual dust collection ports for improved dust collection
• 2-stage safety switch for increased operator safety
• Ergonomic vertical soft rubber grip design for vibration absorption and comfortable operation

Specifications:

• Battery voltage and chemistry: 40V Lithium Ion
• Blade diameter: 10″ (255 mm)
• Arbor size: 5/8″ (15.88 mm)
• No load speed: 3,600 RPM
• Vibration level: 2.5 m/s²
• Noise level: 91 dB(A)
• Dimensions (L x W x H): 31-3/4″ x 25-3/8″ x 26″  (805 mm x 644 mm x 660 mm)
• Net weight: 57.1 lbs (25.9 kg)

Also available:

• LS002GZ 40V MAX XGT Brushless 8-1/2” Mitre Saw with AWS – tool only
• LS004GZ 40V MAX XGT 10″ Brushless Mitre Saw with AWS – tool only
• LS003GZ 40V MAX XGT 12″ Brushless Mitre Saw with AWS – tool only
