Description

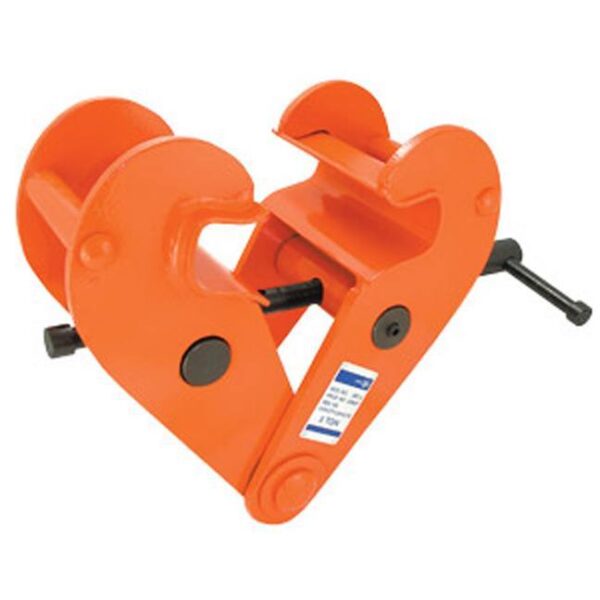

Jet 120607 5 Ton Beam Clamp With Locking Screw
The Jet 120607 5 Ton Beam Clamp With Locking Screw:
- Product no. 120607
- Model no. JBC-5
- Use for suspending loads or inverted as a clamp for vertically lifting flanged beams
- Jaw design distributes load away from the edges to reduce stress on beam flanges
- Equal width jaws provide the best possible stability
- Threaded handle provides easy installation and portability
- Locking screw prevents the clamp jaws from accidentally loosening
- Adjusts to fit securely on a wide range of beam and flange widths
- Built-in suspension bar provides ultra low headroom
- Complies with ANSI B30.11 and B30.20 specifications (certificate included)
- Tested to 150% or rated capacity
- Maximum angle from vertical 15º when used for lifting beams
| JBC Series Beam Clamp Specifications and Comparison Chart | |||||
| Product no. | Model no. | Rated Capacity (tons) | Rated Capacity (lbs) | I-Beam Flange Width | Weight lbs (kg) |
| 120603 | JBC-1 | 1 | 2,000 | 2.95″ to 9.05″ | 13 (5.9) |
| 120605 | JBC-2 | 2 | 4,000 | 2.95″ to 9.05″ | 15.2 (7) |
| 120606 | JBC-3 | 3 | 6,000 | 3.35″ to 11″ | 28.8 (13.1) |
| 120607 | JBC-5 | 5 | 10,000 | 3.5″ to 12″ | 38 (17.3) |
| JBC Series Beam Clamp Dimensions | ||||||
| Product no. | Model no. | Maximum A | Minimum B | Maximum B | C | D |
| 120603 | JBC-1 | 9.65″ | 7.48″ | 14.17″ | 2.76″ | 0.20″ |
| 120605 | JBC-2 | 9.65″ | 7.48″ | 14.17″ | 2.91″ | 0.28″ |
| 120606 | JBC-3 | 11.22″ | 9.84″ | 17.52″ | 4.65″ | 0.31″ |
| 120607 | JBC-5 | 12.60″ | 10.43″ | 19.09″ | 5.51″ | 0.39″ |
| Product no. | Model no. | E | Maximum F | Minimum F | Minimum G | H |
| 120603 | JBC-1 | 8.46″ | 5.31″ | 3.07″ | 1.10″ | 0.80″ |
| 120605 | JBC-2 | 8.46″ | 5.31″ | 3.07″ | 1.10″ | 0.80″ |
| 120606 | JBC-3 | 10.24″ | 6.30″ | 4.33″ | 2.17″ | 0.87″ |
| 120607 | JBC-5 | 10.63″ | 6.50″ | 4.92″ | 2.05″ | 1.10″ |
