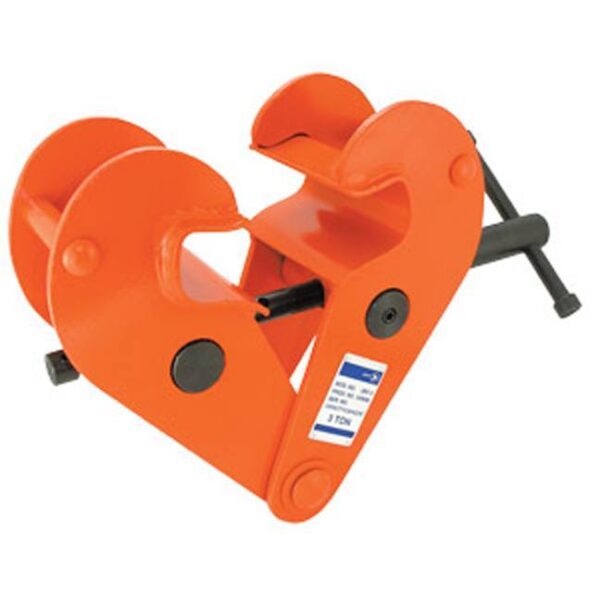

Jet 120606 3 Ton Beam Clamp With Locking Screw

$428.23

Special Order Item (Ships within 3-5 Business Days)

Backorder

UOM: EA SKU: 120606 Categories: , UPC: 059629801888

Description

Jet 120606 3 Ton Beam Clamp With Locking Screw

The Jet 120606 3 Ton Beam Clamp With Locking Screw:

  • Product no. 120606
  • Model no. JBC-3
  • Use for suspending loads or inverted as a clamp for vertically lifting flanged beams
  • Jaw design distributes load away from the edges to reduce stress on beam flanges
  • Equal width jaws provide the best possible stability
  • Threaded handle provides easy installation and portability
  • Locking screw prevents the clamp jaws from accidentally loosening
  • Adjusts to fit securely on a wide range of beam and flange widths
  • Built-in suspension bar provides ultra low headroom
  • Complies with ANSI B30.11 and B30.20 specifications (certificate included)
  • Tested to 150% or rated capacity
  • Maximum angle from vertical 15º when used for lifting beams
JBC Series Beam Clamp Specifications and Comparison Chart
Product no. Model no. Rated Capacity (tons) Rated Capacity (lbs) I-Beam Flange Width  Weight lbs (kg)
120603 JBC-1 1 2,000 2.95″ to 9.05″ 13 (5.9)
120605 JBC-2 2 4,000 2.95″ to 9.05″ 15.2 (7)
120606 JBC-3 3 6,000 3.35″ to 11″ 28.8 (13.1)
120607 JBC-5 5 10,000 3.5″ to 12″ 38 (17.3)



JBC Series Beam Clamp Dimensions
Product no. Model no. Maximum A Minimum B Maximum B C D
120603 JBC-1 9.65″ 7.48″ 14.17″ 2.76″ 0.20″
120605 JBC-2 9.65″ 7.48″ 14.17″ 2.91″ 0.28″
120606 JBC-3 11.22″ 9.84″ 17.52″ 4.65″ 0.31″
120607 JBC-5 12.60″ 10.43″ 19.09″ 5.51″ 0.39″

Product no. Model no. E Maximum F Minimum F Minimum G H
120603 JBC-1 8.46″ 5.31″ 3.07″ 1.10″ 0.80″
120605 JBC-2 8.46″ 5.31″ 3.07″ 1.10″ 0.80″
120606 JBC-3 10.24″ 6.30″ 4.33″ 2.17″ 0.87″
120607 JBC-5 10.63″ 6.50″ 4.92″ 2.05″ 1.10″

Additional information

Weight 26.96 lbs
