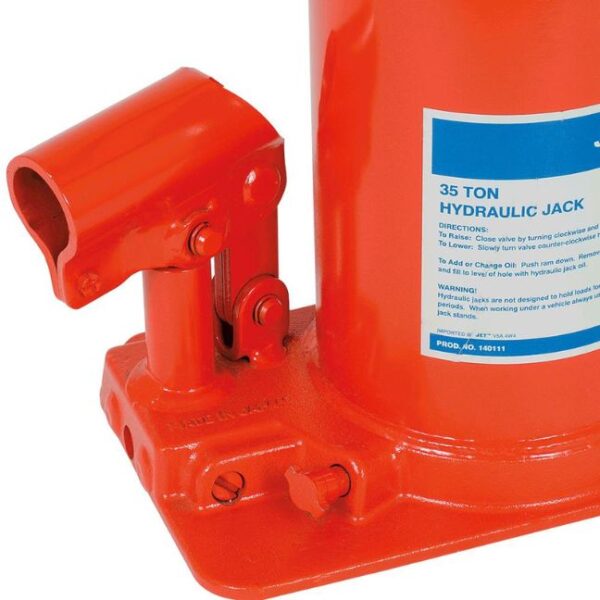

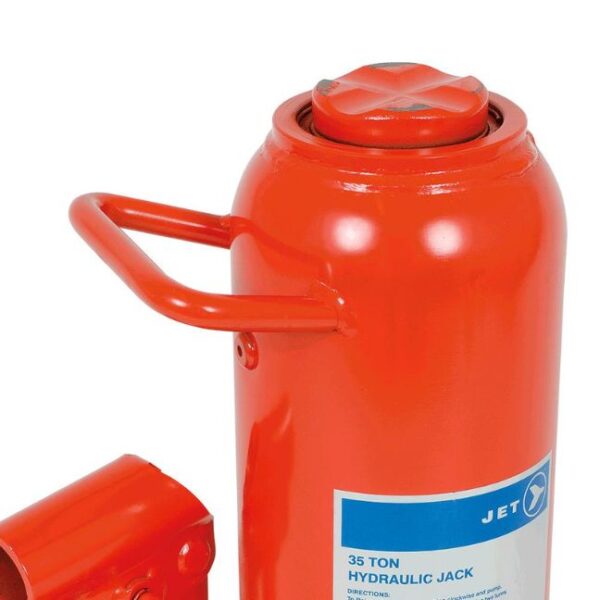

Jet 140111 JHJ-35 35 Ton Hydraulic Bottle Jack

$480.26

Special Order Item (Ships within 3-5 Business Days)

Backorder

UOM: EA SKU: 140111 Categories: , , UPC: 059629801758

Description

Jet 140111 JHJ-35 35 Ton Hydraulic Bottle Jack

The Jet 140111 JHJ-35 35 Ton Hydraulic Bottle Jack:

Features:

  • Product no. 140111
  • Model no. JHJ-35
  • Standard model
  • JET bottle jacks – a Canadian standard for over 45 years
  • Work in upright, angle or horizontal positions
  • Electrically welded base and cylinder ensure strength and eliminate leaks
  • Special valving allows the handle to remain in the upright position when used horizontally
  • Cleated steel lift saddle provides the safest operator conditions
  • Convenient extension screw allows low pick up height adjustment
  • Fully serviceable
  • Common release valve assemblies and other interchangeable parts allow quick repairs
  • Not affected by temperature extremes
  • Adheres rigidly to JIS (Japanese Industrial Standards) and ANSI (American National Standards Institute) standards
  • Tested to over 150% of rated capacities
  • Made in Japan
JTJ Series Super Heavy Duty Hydraulic Toe Jack Comparison Chart
Product no. Model no. Rated  Capacity (Tons) Closed Height Piston Travel Head Screw Height Maximum Height
140101 JHJ-2 2 7-1/8″ 4-1/2″ 2″ 13-5/8″
140102 JHJ-3 3 7-1/2″ 4-1/2″ 2-3/8″ 14-3/8″
140103 JHJ-5 5 7-7/8″ 4-3/4″ 2-3/4″ 15-3/8″
140104 JHJ-8 8 7-7/8″ 4-3/4″ 2-3/4″ 15-3/8″
140105 JHJ-12-1/2 12-1/2 9-1/2″ 5-7/8″ 3-1/8″ 18-1/2″
140106 JHJ-12-1/2LP 12-1/2 6-3/4″ 3-3/4″ 3″ 13-1/2″
140107 JHJ-17-1/2 17-1/2 10-7/16″ 6-1/2″ 3-1/8″ 20-1/16″
140108 JHJ-17-1/2LP 17-1/2 6-3/4″ 3-1/2″ 2-3/4″ 13″
140109 JHJ-22-1/2 22-1/2 10-5/8″ 6-1/4″ 16-7/8″
140110 JHJ-22-1/2LP 22-1/2 7-1/8″ 3-3/8″ 1-9/16″ 12-1/16″
140111 JHJ-35 35 11″ 6-1/4″ 17-1/4″
140112 JHJ-60 60 12″ 6-3/4″ 18-3/4″



JTJ Series Super Heavy Duty Hydraulic Toe Jack Comparison Chart (cont’d)
Product no. Model no. Rated  Capacity (Tons) Base Size (L x W) Handle Type (piece) Weight lbs (kg)
140101 JHJ-2 2 4-5/16″ x 2-9/16″ 2 5.5 (2.5)
140102 JHJ-3 3 4-1/2″ x 2-13/16″ 2 6.8 (3)
140103 JHJ-5 5 5-3/16″ x 2-15/16″ 3 8.8 (4)
140104 JHJ-8 8 6″ x 3-1/2″ 3 12.2 (5.6)
140105 JHJ-12-1/2 12-1/2 6-1/2″ x 4-3/16″ 3 17.7 (8)
140106 JHJ-12-1/2LP 12-1/2 6-1/2″ x 4-3/16″ 1 12.8 (5.8)
140107 JHJ-17-1/2 17-1/2 7-1/8″ x 4-5/8″ 3 24 (10.9)
140108 JHJ-17-1/2LP 17-1/2 7-1/8″ x 4-5/8″ 1 16.4 (7.5)
140109 JHJ-22-1/2 22-1/2 7-3/16″ x 5-1/16″ 3 29.5 (13.4)
140110 JHJ-22-1/2LP 22-1/2 7-3/16″ x 5-1/16″ 1 19.7 (9)
140111 JHJ-35 35 7-9/16″ x 5-9/16″ 1 41 (18.5)
140112 JHJ-60 60 9-5/16″ x 7-3/8″ 1 82 (36.9)

Additional information

Weight 20 lbs
