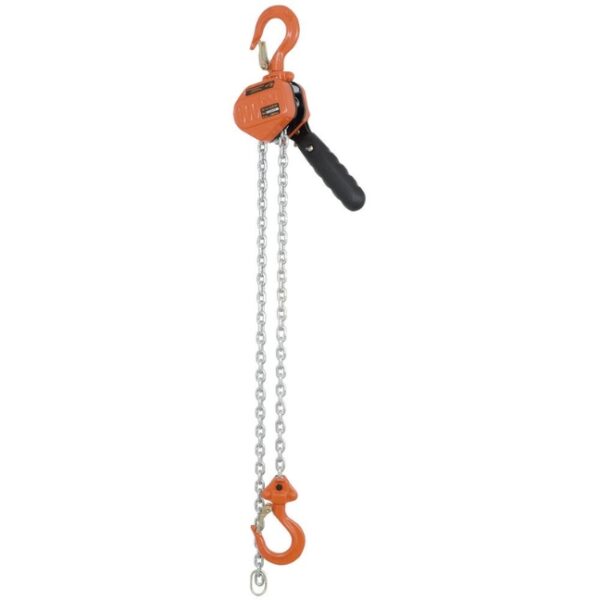

Jet 110804 1/2 Ton 5′ Lift KLP Series Lever Chain Hoist
The Jet 110804 1/2 Ton 5 ft. Lift KLP Series Lever Chain Hoist features:
- Product no. 110804
- Model no. KLP-50-5
- High impact gear case and brake cover designed for heavy duty service
- Equipped grade 100 load chain
- Load sprocket features caged ball bearings for smooth, easy operation
- Weston-style brake with dual pawl for safe, reliable operation
- Premium grade, non-asbestos brake discs ensure long life
- Top and bottom safety hooks are designed to bend slowly to provide warning of overloads
- Deformation indicators on the hooks allow accurate measurement and easy maintenance
- Cast steel safety latches exceed industry standards
- Tested to 150% of rated capacity – certificate included
- Complies with ANSI B30.16 standards
- ISO 9001-2000 certified factory
| KLP Series Lever Chain Hoist Comparison | ||
| Product no. | 110803 | 110804 |
| Model no. | KLP-25-5 | KLP-50-5 |
| Rated Lifting Capacity | 1/4 ton | 1/2 ton |
| Standard Lift | 5 ft | 5 ft. |
| Number of Falls | 1 | 1 |
| Load Chain Diameter | 3.2 mm | 4.3 mm |
| Minimum Distance Between Hooks | 7.87″ | 9.84″ |
| Force Required to Lift Capacity | 44 lbs | 52.8 lbs |
| Lift Per Full Turn | 0.42″ | 0.33″ |
| Minimum Distance Between Hooks (A) | 7.78″ | 9.84″ |
| Lever Length (B) | 5.70″ | 6.3″ |
| Lever Length (C) | 2.68″ | 3.19″ |
| Overall Width (D) | 3.43″ | 3.96″ |
| Hook Throat Opening (E) | 0.83″ | 0.96″ |
| Weight lbs | 3.3 | 5.95 |
JET KLP Series hoists are also available in the following sizes:
| KLP Series Lever Chain Hoist Comparison & Selection Chart | |||||
| Product no. | Model no. | Rated Lifting Capacity | Standard Lift | Number of Falls | Load Chain Diameter |
| 110402 | KLP-75-5 | 3/4 ton | 5 ft. | 1 | 5.6 mm |
| 110406 | KLP-75-10 | 3/4 ton | 10 ft. | 1 | 5.6 mm |
| 110403 | KLP-150-5 | 1-1/2 ton | 5 ft. | 1 | 7.1 mm |
| 110407 | KLP-150-10 | 1-1/2 ton | 10 ft. | 1 | 7.1 mm |
| 110404 | KLP-300-5 | 3 ton | 5 ft. | 1 | 10.0 mm |
| 110408 | KLP-300-10 | 3 ton | 10 ft. | 1 | 10.0 mm |
| 110405 | KLP-600-5 | 6 ton | 5 ft. | 2 | 10.0 mm |
| KLP Series Lever Chain Hoist Comparison & Selection Chart (cont’d) | |||||
| Product no. | Model no. | Minimum Distance Between Hooks | Force Required to Lift Capacity | Lever Length | Weight lbs(kg) |
| 110402 | KLP-75-5 | 11″ | 42 lbs | 10-1/2″ | 14 (6.4) |
| 110406 | KLP-75-10 | 11″ | 42 lbs | 10-1/2″ | 16 (7.3) |
| 110403 | KLP-150-5 | 13-3/4″ | 46 lbs | 16-1/2″ | 22.8 (10.4) |
| 110407 | KLP-150-10 | 13-3/4″ | 46 lbs | 16-1/2″ | 24.3 (11) |
| 110404 | KLP-300-5 | 16-1/2″ | 68 lbs | 16-1/2″ | 39.7 (18) |
| 110408 | KLP-300-10 | 16-1/2″ | 68 lbs | 16-1/2″ | 38 (17.2) |
| 110405 | KLP-600-5 | 22-7/16″ | 81 lbs | 16-1/2″ | 61 (27.7) |
| KLP Series Lever Chain Hoist w/OVERLOAD PROTECTION Comparison Chart | |||||
| Product no. | Model no. | Rated Lifting Capacity | Standard Lift | Number of Falls | Load Chain Diameter |
| 110412 | KLP-75-5L | 3/4 ton | 5 ft. | 1 | 5.6 mm |
| 110413 | KLP-150-5L | 1-1/2 ton | 5 ft. | 1 | 7.1 mm |
| 110414 | KLP-300-5L | 3 ton | 5 ft. | 1 | 10.0 mm |
| KLP Series Lever Chain Hoist w/OVERLOAD PROTECTION Comparison Chart (cont’d) | |||||
| Product no. | Model no. | Head Room | Force Required to Lift Capacity | Length of Hand Chain Pulled to Lift Load 1ft. | Weight lbs(kg) |
| 110412 | KLP-75-5L | 11″ | 42 lbs | 10-1/2″ | 15 (6.75) |
| 110413 | KLP-150-5L | 13-3/4″ | 46 lbs | 16-1/4″ | 23 (10) |
| 110414 | KLP-300-5L | 16-1/2″ | 68 lbs | 16-1/4″ | 36 (16) |
