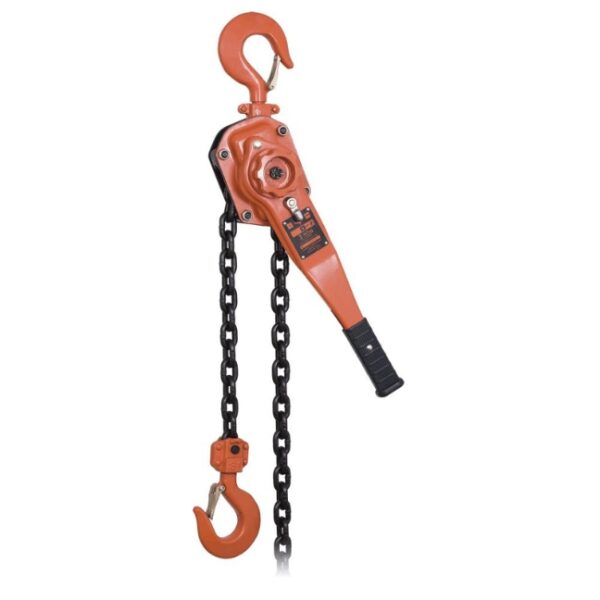

Jet 110403 1-1/2 Ton 5′ Lift KLP Series Lever Chain Hoist

$533.78

In Stock

UOM: EA SKU: 110403 Categories: , UPC: 059629869451

Description

Jet 110403 1-1/2 Ton 5′ Lift KLP Series Lever Chain Hoist

The Jet 110403 1-1/2 Ton 5′ Lift KLP Series Lever Chain Hoist:

  • Model no. KLP-150-5
  • High impact gear case and brake cover designed for heavy duty service
  • Equipped grade 100 load chain
  • Load sprocket features caged ball bearings for smooth, easy operation
  • Weston-style brake with dual pawl for safe, reliable operation
  • Premium grade, non-asbestos brake discs ensure long life
  • Top and bottom safety hooks are designed to bend slowly to provide warning of overloads
  • Deformation indicators on the hooks allow accurate measurement and easy maintenance
  • Cast steel safety latches exceed industry standards
  • Tested to 150% of rated capacity – certificate included
  • Complies with ANSI B30.16 standards
  • ISO 9001-2000 certified factory
KLP Series Lever Chain Hoist Comparison & Selection Chart
Product no. Model no. Rated Lifting Capacity  Standard Lift Number  of Falls Load Chain Diameter Minimum Distance Between Hooks Force Required to Lift Capacity Lever Length Weight  lbs(kg)
110402 KLP-75-5 3/4 ton 5 ft. 1 5.6 mm 11″ 42 lbs 10-1/2″ 14 (6.4)
110406 KLP-75-10 3/4 ton 10 ft. 1 5.6 mm 11″ 42 lbs 10-1/2″ 16 (7.3)
110403 KLP-150-5 1-1/2 ton 5 ft. 1 7.1 mm 13-3/4″ 46 lbs 16-1/2″ 22.8 (10.4)
110407 KLP-150-10 1-1/2 ton 10 ft. 1 7.1 mm 13-3/4″ 46 lbs 16-1/2″ 24.3 (11)
110404 KLP-300-5 3 ton 5 ft. 1 10.0 mm 16-1/2″ 68 lbs 16-1/2″ 39.7 (18)
110408 KLP-300-10 3 ton 10 ft. 1 10.0 mm 16-1/2″ 68 lbs 16-1/2″ 38 (17.2)
110405 KLP-600-5 6 ton 5 ft. 2 10.0 mm 22-7/16″ 81 lbs 16-1/2″ 61 (27.7)



KLP Series Lever Chain Hoist w/OVERLOAD PROTECTION Comparison Chart
Product no. Model no. Rated Lifting Capacity  Standard Lift Number  of Falls Load Chain Diameter Head Room Force Required to Lift Capacity Length of Hand Chain Pulled to Lift Load 1ft. Weight  lbs(kg)
110412 KLP-75-5L 3/4 ton 5 ft. 1 5.6 mm 11″ 42 lbs 10-1/2″ 15 (6.75)
110413 KLP-150-5L 1-1/2 ton 5 ft. 1 7.1 mm 13-3/4″ 46 lbs 16-1/4″ 23 (10)
110414 KLP-300-5L 3 ton 5 ft. 1 10.0 mm 16-1/2″ 68 lbs 16-1/4″ 36 (16)



Dimensions
Product no. Model no. Rated Lifting Capacity A B C D G H
110402 KLP-75-5 3/4 ton 5-13/16″ 3-1/2″ 37.5 mm 10-1/2″ 28 mm 11″
110406 KLP-75-10 3/4 ton 5-13/16″ 3-1/2″ 37.5 mm 10-1/2″ 28 mm 11″
110403 KLP-150-5 1-1/2 ton 6-1/2″ 4-1/4″ 47 mm 16-1/2″ 33.5 mm 13-3/4″
110407 KLP-150-10 1-1/2 ton 6-1/2″ 4-1/4″ 47 mm 16-1/2″ 33.5 mm 13-3/4″
110404 KLP-300-5 3 ton 7-11/16″ 4-1/2″ 62.5 mm 16-1/4″ 43.5 mm 16-1/2″
110408 KLP-300-10 3 ton 7-11/16″ 4-1/2″ 62.5 mm 16-1/4″ 43.5 mm 16-1/2″
110405 KLP-600-5 6 ton 7-11/16″ 4-1/2″ 78 mm 16-1/4″ 22-7/16″
110412 KLP-75-5L 3/4 ton 5-13/16″ 3-1/2″ 37.5 mm 10-1/2″ 28 mm 11″
110413 KLP-150-5L 1-1/2 ton 6-1/2″ 4-1/4″ 47 mm 16-1/2″ 33.5 mm 13-3/4″
110414 KLP-300-5L 3 ton 7-11/16″ 4-1/2″ 62.5 mm 16-1/4″ 43.5 mm 16-1/2″

Additional information

Weight 22.10 lbs
