Description

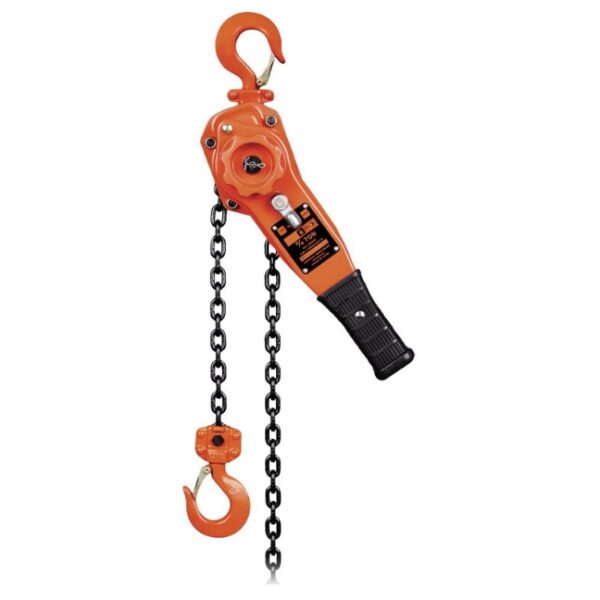

Jet 110407 1-1/2 Ton 10′ Lift KLP Series Lever Chain Hoist
The Jet 110407 1-1/2 Ton 10′ Lift KLP Series Lever Chain Hoist:
- Model no. KLP-150-10
- High impact gear case and brake cover designed for heavy duty service
- Equipped grade 100 load chain
- Load sprocket features caged ball bearings for smooth, easy operation
- Weston-style brake with dual pawl for safe, reliable operation
- Premium grade, non-asbestos brake discs ensure long life
- Top and bottom safety hooks are designed to bend slowly to provide warning of overloads
- Deformation indicators on the hooks allow accurate measurement and easy maintenance
- Cast steel safety latches exceed industry standards
- Tested to 150% of rated capacity – certificate included
- Complies with ANSI B30.16 standards
- ISO 9001-2000 certified factory
KLP Series Lever Chain Hoist Comparison & Selection Chart |
|||||||||
| Product no. | Model no. | Rated Lifting Capacity | Standard Lift | Number of Falls | Load Chain Diameter | Minimum Distance Between Hooks | Force Required to Lift Capacity | Lever Length | Weight lbs(kg) |
| 110402 | KLP-75-5 | 3/4 ton | 5 ft. | 1 | 5.6 mm | 11″ | 42 lbs | 10-1/2″ | 14 (6.4) |
| 110406 | KLP-75-10 | 3/4 ton | 10 ft. | 1 | 5.6 mm | 11″ | 42 lbs | 10-1/2″ | 16 (7.3) |
| 110403 | KLP-150-5 | 1-1/2 ton | 5 ft. | 1 | 7.1 mm | 13-3/4″ | 46 lbs | 16-1/2″ | 22.8 (10.4) |
| 110407 | KLP-150-10 | 1-1/2 ton | 10 ft. | 1 | 7.1 mm | 13-3/4″ | 46 lbs | 16-1/2″ | 24.3 (11) |
| 110404 | KLP-300-5 | 3 ton | 5 ft. | 1 | 10.0 mm | 16-1/2″ | 68 lbs | 16-1/2″ | 39.7 (18) |
| 110408 | KLP-300-10 | 3 ton | 10 ft. | 1 | 10.0 mm | 16-1/2″ | 68 lbs | 16-1/2″ | 38 (17.2) |
| 110405 | KLP-600-5 | 6 ton | 5 ft. | 2 | 10.0 mm | 22-7/16″ | 81 lbs | 16-1/2″ | 61 (27.7) |
KLP Series Lever Chain Hoist w/OVERLOAD PROTECTION Comparison Chart |
|||||||||
| Product no. | Model no. | Rated Lifting Capacity | Standard Lift | Number of Falls | Load Chain Diameter | Head Room | Force Required to Lift Capacity | Length of Hand Chain Pulled to Lift Load 1ft. | Weight lbs(kg) |
| 110412 | KLP-75-5L | 3/4 ton | 5 ft. | 1 | 5.6 mm | 11″ | 42 lbs | 10-1/2″ | 15 (6.75) |
| 110413 | KLP-150-5L | 1-1/2 ton | 5 ft. | 1 | 7.1 mm | 13-3/4″ | 46 lbs | 16-1/4″ | 23 (10) |
| 110414 | KLP-300-5L | 3 ton | 5 ft. | 1 | 10.0 mm | 16-1/2″ | 68 lbs | 16-1/4″ | 36 (16) |
Dimensions |
||||||||
| Product no. | Model no. | Rated Lifting Capacity | A | B | C | D | G | H |
| 110402 | KLP-75-5 | 3/4 ton | 5-13/16″ | 3-1/2″ | 37.5 mm | 10-1/2″ | 28 mm | 11″ |
| 110406 | KLP-75-10 | 3/4 ton | 5-13/16″ | 3-1/2″ | 37.5 mm | 10-1/2″ | 28 mm | 11″ |
| 110403 | KLP-150-5 | 1-1/2 ton | 6-1/2″ | 4-1/4″ | 47 mm | 16-1/2″ | 33.5 mm | 13-3/4″ |
| 110407 | KLP-150-10 | 1-1/2 ton | 6-1/2″ | 4-1/4″ | 47 mm | 16-1/2″ | 33.5 mm | 13-3/4″ |
| 110404 | KLP-300-5 | 3 ton | 7-11/16″ | 4-1/2″ | 62.5 mm | 16-1/4″ | 43.5 mm | 16-1/2″ |
| 110408 | KLP-300-10 | 3 ton | 7-11/16″ | 4-1/2″ | 62.5 mm | 16-1/4″ | 43.5 mm | 16-1/2″ |
| 110405 | KLP-600-5 | 6 ton | 7-11/16″ | 4-1/2″ | 78 mm | 16-1/4″ | – | 22-7/16″ |
| 110412 | KLP-75-5L | 3/4 ton | 5-13/16″ | 3-1/2″ | 37.5 mm | 10-1/2″ | 28 mm | 11″ |
| 110413 | KLP-150-5L | 1-1/2 ton | 6-1/2″ | 4-1/4″ | 47 mm | 16-1/2″ | 33.5 mm | 13-3/4″ |
| 110414 | KLP-300-5L | 3 ton | 7-11/16″ | 4-1/2″ | 62.5 mm | 16-1/4″ | 43.5 mm | 16-1/2″ |
