DeWalt DCN692B 20V MAX XR Dual Speed Framing Nailer

DeWalt DCN692M1 20V MAX XR Dual Speed Framing Nailer


Available on backorder

SKU: DCN692B Categories: , , , , , UPC: 885911349000


DeWalt DCN692B 20V MAX XR Dual Speed Framing Nailer

The DeWalt DCN692B 20V MAX XR Dual Speed Framing Nailer includes:

  • Tool Only: Batteries and Charger sold separately

Also available as a kit: DCN692M1 with 4.0Ah battery and charger

Dual Speed Settings:

  • Speed Setting 1: For driving shorter 2″ to 3″ nails: lower vibration, more shots per charge, faster nailing (compared to Speed Setting 2)
  • Speed Setting 2: For driving longer 3-1/4″ to 3-1/2″ nails: more power to drive longer nails consistently

Dual Firing Modes:

  •  Bump-fire mode fires nails at up to 2 nails per second
  • Sequential-operating mode for precision nail placement

Other Features:

  • Drives up to 700 nails per battery charge
  • Fires paper collated 30 – 34 degree clipped or full round offset head nails
  • No gas means more consistent performance, lower running costs and no cleaning
  • Brushless motor delivers the power to drive nails into both soft and hard joints
  • Tool-free depth adjustments increase productivity
  • Tool-free stall release

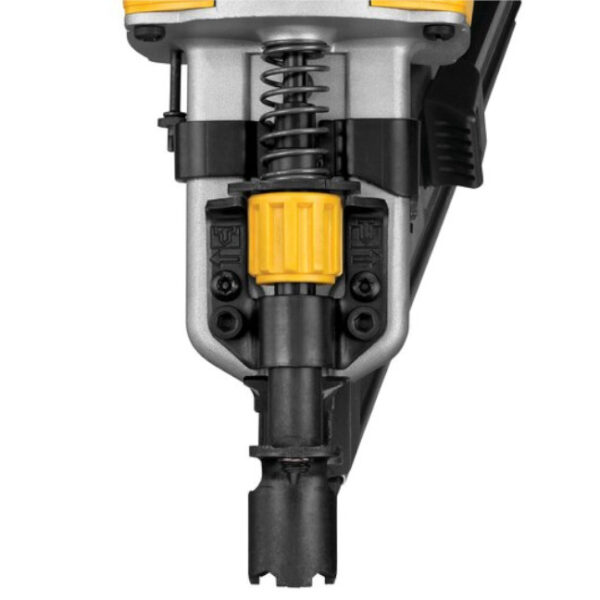

  • Easy-access nose piece for quick removal of jammed nails
  • Trigger lock-off disables trigger when tool is not in use
  • Battery level and stall indicator
  • Handy integrated belt hook


  • Voltage: 20V
  • Nail diameter: .113 to .131 gauge
  • Magazine angle: 33 degrees
  • Nail length capacity: 2″ to 3-1/2″
  • Magazine capacity: 55 nails
  • Magazine loading: lock & load
  • Height: 13.5″
  • Width: 4″
  • Length: 13.25″
  • Weight: 7.8 lbs

 Click here for a selection of 33 degree strip nails

Additional information

Weight 7 lbs
