DeWalt DCN692M1 20V MAX XR Dual Speed Framing Nailer Kit



UOM: EA SKU: DCN692M1 Categories: , , UPC: 885911348843


DeWalt DCN692M1 20V MAX XR Dual Speed Framing Nailer Kit

The DeWalt DCN692M1 20V MAX XR Dual Speed Framing Nailer includes:

  • DCB101 fast charger
  • 20V Max XR (4.0 Ah) Premium Li-Ion battery
  • No-mar tip


  • Product no. DCN692M1
  • Gas-free cordless nailer with Brushless Motor and powered by 20V MAX XR 4.0 Ah lithium ion battery

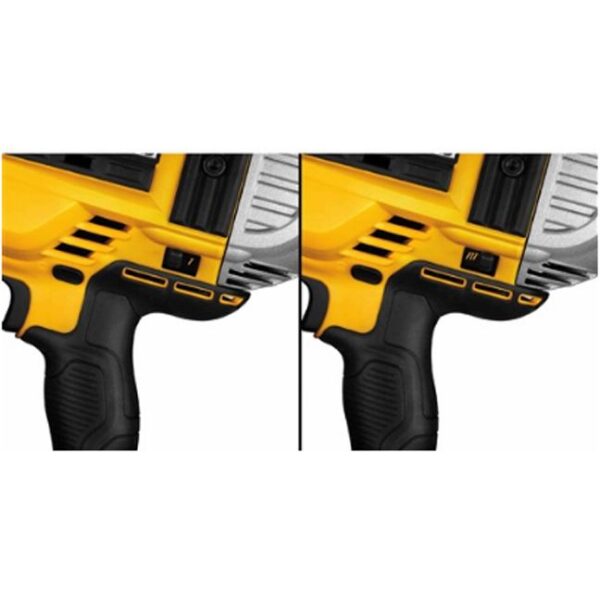

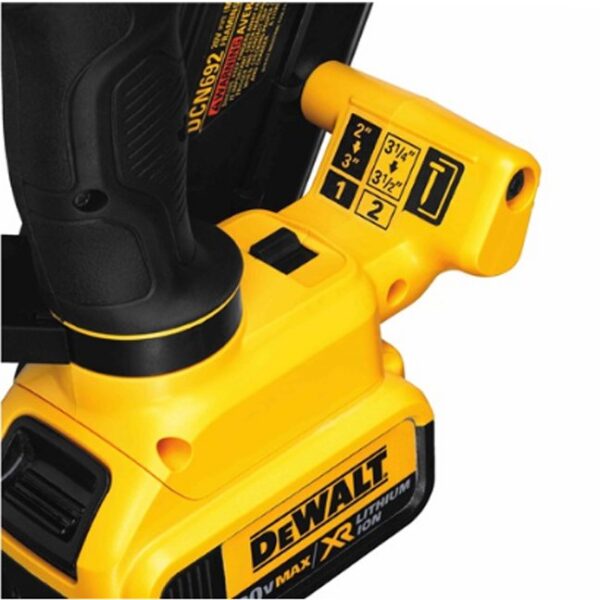

  • Dual Speed Settings:
        • Speed Setting 1: For driving shorter 2″ to 3″ nails: lower vibration, more shots per charge, faster nailing (compared to Speed Setting 2)
        • Speed Setting 2: For driving longer 3-1/4″ to 3-1/2″ nails: more power to drive longer nails consistently
  • Dual Firing Modes:
        •  Bump-fire mode fires nails at up to 2 nails per second
        • Sequential-operating mode for precision nail placement
  • Drives up to 700 nails per battery charge
  • Fires paper collated 30 – 34 degree clipped or full round offset head nails
  • No gas means more consistent performance, lower running costs and no cleaning

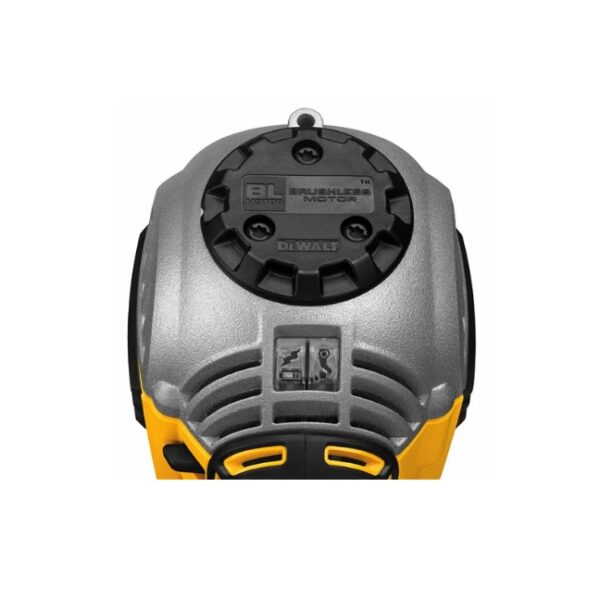

  • Brushless motor delivers the power to drive nails into both soft and hard joints
  • Tool-free depth adjustments increase productivity
  • Tool-free stall release
  • Easy-access nose piece for quick removal of jammed nails
  • Trigger lock-off disables trigger when tool is not in use
  • Battery level and stall indicator

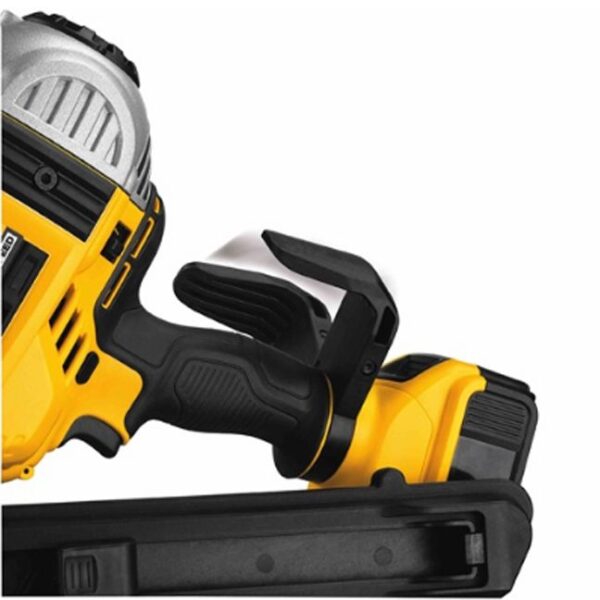

  • Handy integrated belt hook


  • Voltage: 20V
  • Nail diameter: .113 to .131 gauge
  • Magazine angle: 33 degrees
  • Nail length capacity: 2″ to 3-1/2″
  • Magazine capacity: 55 nails
  • Magazine loading: lock & load
  • Height: 13.5″
  • Width: 4″
  • Length: 13.25″
  • Weight: 7.8 lbs

 Click here for a selection of 33 degree strip nails

Additional information

Weight 9.1 lbs
