Structural Bolts A325 Galvanized

Structural Bolts A325 Galvanized

$0.70 – $8.67

Add to wishlist
UOM: N/A SKU: N/A Categories: , ,
This image is for representative purposes only - the actual product may differ. Please refer to the Product Title and the Product Description for the most accurate information.

Description

Structural Bolts A325 Galvanized

Structural Bolts A325 Galvanized:

Features:

  • Product series: SBG
  • A325 bolt complete with A563-DH heavy nut and F436 flat washer
  • Heavy hex bolts designed for steel-to-steel structural connections
  • Made of medium carbon steel
  • Hot Dip Galvanized for excellent corrosion resistance
  • Meet ASTM A325 regulations for structural joints such as:
        • Mating I-beams
        • Scaffolding
  • Material meets ASTM F3125 specifications for quality
  • Dimensions meet ASME B18.2.6 specifications
  • Length is measured from under the head
  • Partially threaded screws come with precise threaded and unthreaded portions
        • Allows you to place only the stronger unthreaded portion (grip) in joints subjected to sideways forces

Looking for other types of bolts?  Click here.

Additional information

Fastener Diameter

1/2", 5/8", 3/4", 1"
Length

1-1/4", 1-1/2", 1-3/4", 2", 2-1/4", 2-1/2", 2-3/4", 3", 3-1/4", 3-1/2", 3-3/4", 4", 4-1/4", 4-1/2", 4-3/4", 5", 5-1/4", 5-1/2", 5-3/4", 6", 6-1/2", 7", 7-1/2", 8"
Thread/Pitch

NC (National Coarse)
Finish

Hot Dipped Galvanized
Grade

A325

Related products

  • Structural Bolts A325 Plain

    Structural Bolts A325 Plain

    $0.57 – $7.19     Select options This product has multiple variants. The options may be chosen on the product page

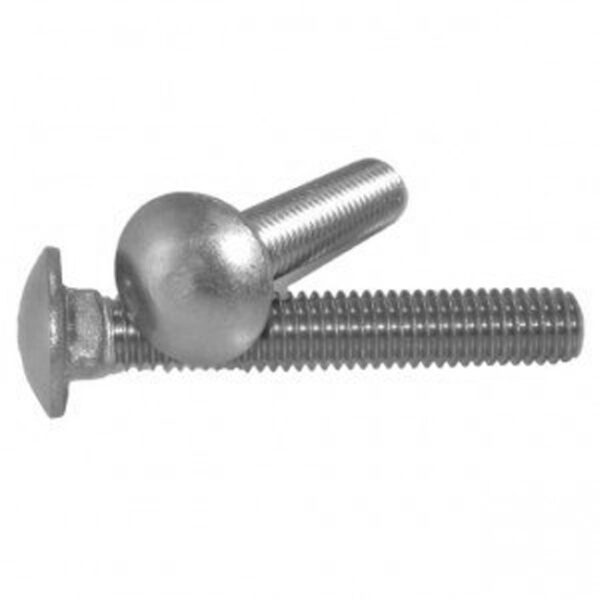

  • Carriage Bolt Zinc
