Stabila 05820 LAR 300 Rotary Laser Kit with Tripod

Description

Stabila 05820 LAR 300 Rotary Laser Kit with Tripod

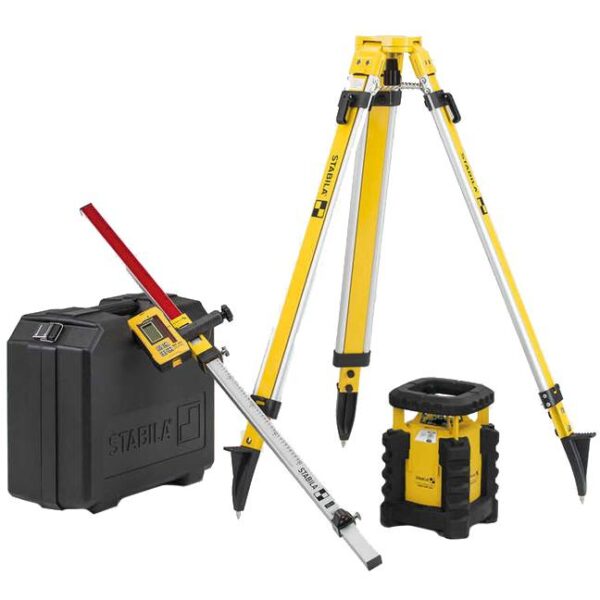

The Stabila 05820 LAR 300 Rotary Laser Kit with Tripod includes:

• LAR300 Rotary laser
• REC300 Digital receiver with clamp
• BST-S construction tripod
• Hi/Lo elevation rod
• 2 – D 1.5 V batteries
• 4 – AA 1.5 V batteries
• Carrying case

Features:

• Catalog no. 05820
• Fully automatic motor-driven rotary laser for horizontal applications:
  • • • Ready for immediate use with fast, self-leveling within 10 seconds
      • High leveling accuracy of ± 1/8 in @ 100 ft (± 0.1 mm/m).
• Quality and precision, made in Germany
• STABILA PROTECTOR system:
  • • • Perfect protection, even when the laser is dropped from a tripod at a height of up to 6 ft (1.8 m)
      • Just set up the tripod again, switch on and carry on measuring
• IP 65 Rated: dust and waterproof
• Resistant to heat and cold from 14° F to 140° F (-10°C to +60°C)
• Exceptionally easy to operate at just the touch of a button
• Large working area with set receiver – up to 2600 ft (800 m) diameter
• Correct heights quickly – digital read-out shows you exact distance from grade, arrows point you and down
• Receiver with visual and acoustic guidance as well as two displays
• 5/8“ thread for attaching to a tripod
• Hard case for easy transport
• Compatible with commercially available machine controllers

Specifications:

• Laser class: 2
• Output: <1 mW
• Laser wavelength: 635 nm
• Self-leveling range: +/- 5º
• Leveling accuracy +/- 1/8″ @ 100 ft.
• Working area diameter for set receiver: 2,600 ft.
• Operating life: 80 hours (with D battery)
• Battery type: D (alkaline)
• Protection class (Water- and dust-proof): IP65
• Tripod connection: 5/8″-11

Applications:

• Bricklaying – creating a perfect, level foundation
• Reinforced concrete construction – concreting foundations
• Carpentry and wood construction – adjusting the height of the ring beam
• Civil engineering and pipeline construction – for example, trenching
• Gardening and landscaping work – laying out garden areas, paths and paving
