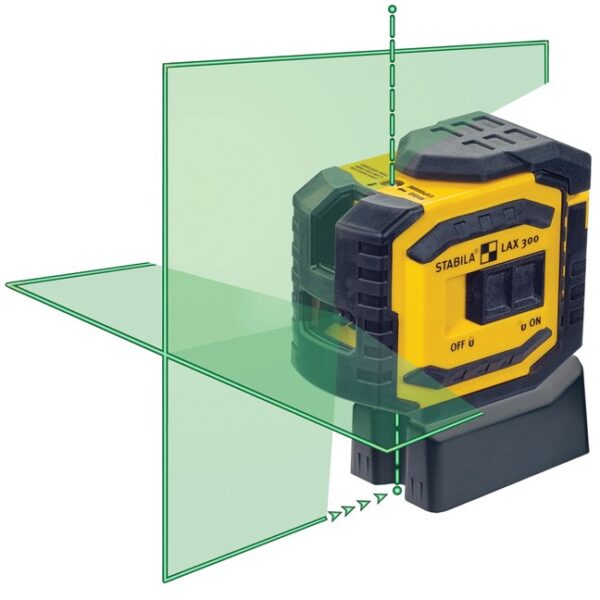

Stabila 03185 LAX300G Green Beam Cross Line Plus Plumb Dots Laser Level

Description

Stabila 03185 LAX300G Green Beam Cross Line Plus Plumb Dots Laser Level

The Stabila 03185 LAX300G Green Beam Cross Line Plus Plumb Dots Laser Level includes:

• Target plate
• Wall mount bracket
• High stability framing base
• 3 – AAA Batteries
• Pouch

Features:

• Catalog no. 03185
• Type: LAX 300G
• Self-Levelling Cross Line plus Plumb Points Laser
• Green vertical and horizontal lines plus plumb points are up to 5X brighter than red beams
• Ideal for:
  • • • Electricians, plumbers, drywall carpenters, tile installers,
      • Finish carpenters, ceiling grid installers, framers and glazers
• Precise, quick layout, plumbing and leveling
• Bright, sharp lines
• Bright, small, round points
• Plumb up and down points are easy to see and work with when the foot is in the elevated position
• Laser rotates 360º in its housing
• Rated IP 54 for protection against dust, rain and water spray
• Height adjustable foot – up to 2″
• Shock-absorbing STABILA Softgrip rubber casing
• ON/OFF switch plus automatic pendulum lock
• Rare earth magnet on reverse side has a V-groove for attachment to rounded steel surfaces
• U-shaped outer housing protects the lenses when the laser is in park position
• Pulsed laser lines allow the laser to be used outdoors at long range with the optional REC 210 line receiver (sold separately)
• Lines & Points:
  • • • One horizontal laser line
      • One vertical laser line
      • Plumb point up
      • Plumb point down
• Positioning Options:
  • • • Set directly on the floor, counter, etc.
      • Attach to a tripod or laser pole with a 1/4″ thread
      • Attach to steel with the rare earth magnet on the back of the housing
      • Strap or belt pulled tight around posts etc.

Specifications:

• Type: LAX 300G
• Laser Class: 2
• Output: <1 mW
• Laser Wavelength: 635 nm
• Self-levelling Range: approx. ± 4.5º
• Levelling Accuracy: ± 3/8″ @ 100 ft. (± 0.3 mm/m)
• Line Straightness Accuracy: ± 3/32″ @ 50 ft.
• Laser Beam Accuracy  – Up: ± 3/8″ @ 100 ft. (± 0.3 mm/m)
• Laser Beam Accuracy – Down: ± 1/2″ @ 100 ft. (± 0.4 mm/m)
• Range of Visible Point (Indoors under typical operating conditions): 100 ft. (30 m)
• Battery Run-time: 15 hours
• Batteries Included: 3 x AAA
