Simpson Strong-Tie THD SS Series Titen HD Screw Anchor Stainless Steel

Description

Simpson Strong-Tie THD SS Series Titen HD Screw Anchor Stainless Steel

Simpson Strong-Tie THD SS Series Titen HD Screw Anchor Stainless Steel:

Features:

• Product no. THD Stainless Steel Series
• Material: Type 304 stainless steel
• Best solution for corrosion protection In any kind of:
  • • • Exterior, coastal or chemical environments

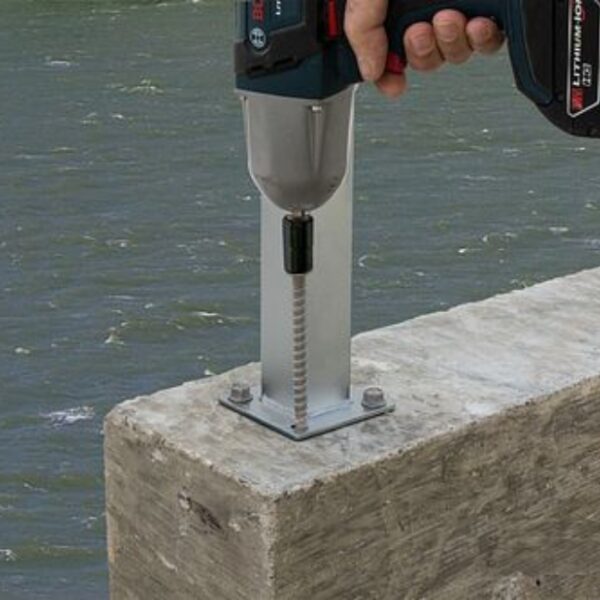

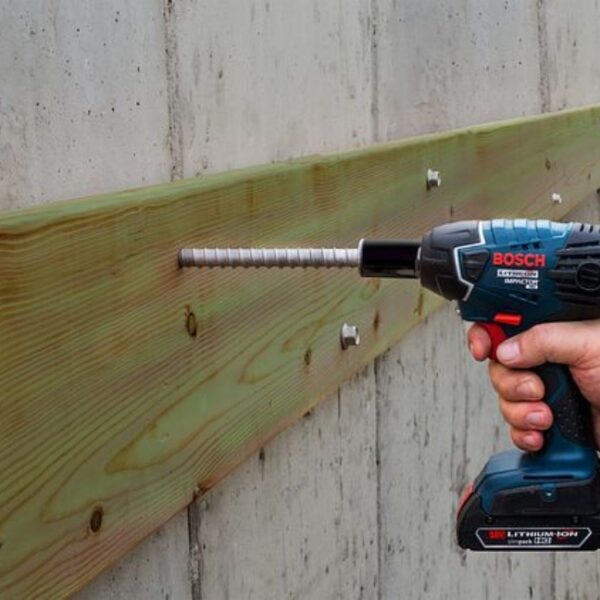

• Installs with an impact wrench or by hand tool
• Tested in accordance with ACI355.2, AC193 and AC106
• For use in:
  • • • Concrete
      • Masonry
• Serrated carbon-steel threads on the tip of the stainless-steel Titen HD:
  • • • Undercut the concrete as the anchor drives into the hole
      • Making way for the rest of the threads to interlock with the concrete
• In order for these threads to be durable enough to cut into the concrete:
  • • • They are formed from carbon steel
      • Then hardened and brazed onto the tip of the anchor
• Offers low installation torque and outstanding performance
• Thread design undercuts to efficiently transfer the load to the base material
• Standard fractional sizes
• No special drill bit required:
  • • • Designed to install using standard-sized ANSI tolerance drill bits
• Hex-washer head:
  • • • Requires no separate washer unless required by code
      • Provides a clean installed appearance
• Removable – ideal for temporary anchoring such as:
  • • • Formwork, bracing or applications where fixtures may need to be moved
• Reuse of the anchor: will not achieve listed loads and is not recommended
• Codes:
  • • • IAPMO UES ER-493 (concrete)
      • ICC-ES ESR-1056 (masonry)
      • City of LA Supplement within ER-493 (concrete)
      • City of LA Supplement within ESR-1056 (masonry)
      • Florida FL15730 (masonry); FL16230 (concrete)
