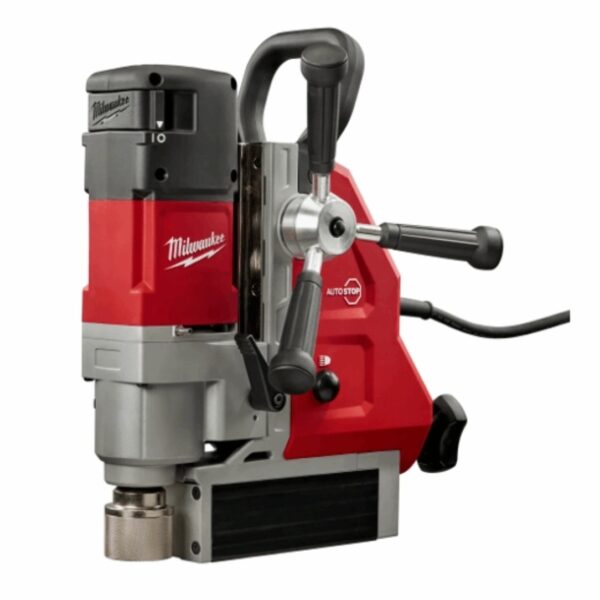

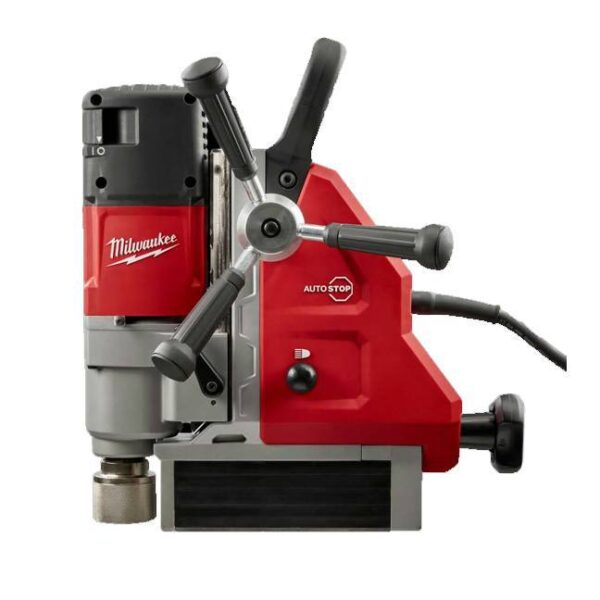

Milwaukee 4274-21 1-5/8″ AC Compact Magnetic Drill



UOM: EA SKU: 4274-21 Categories: , , , , , UPC: 045242346486


Milwaukee 4274-21 1-5/8″ AC Compact Magnetic Drill

The Milwaukee 4274-21 1-5/8″ AC Compact Magnetic Drill includes:

  • 4274-21 1-5/8″ Permanent Magnetic Drill
  • 1/2″ Chuck Adapter for Twist Drill Bits
  • Chuck Key
  • 2 – 1″ Retractable Pilot Pins
  • Safety Strap
  • Lubrication Spray Bottle
  • Plastic Carrying Case


  • Product no. 4274-21
  • Permanent Magnetic Base operates independent of the power source delivering up to 2,000 lbs of holding force
  • Magnetic Activation Knob for activating the magnet while positioning the drill on vertical or upside-down surfaces
  • Partial magnet mode for fast, easy alignment of the drill
  • Full magnet mode provides the strongest magnetic hold of 1/4″ steel for safer drilling (up to 1,600 lbs)
  • Auto-Stop Lift-Off Detection cuts powers to the drill automatically when excess rotational motion is detected
  • Tool-free Feed Handle for easily changing the handle from right to left side
  • Bale Grip Handle for easy positioning of the drill on vertical surfaces
  • 3/4″ Weldon Quick Change Chuck for quick, easy cutter changes – no set screws
  • Tool-Free Motor Head Adjustment from Annular Cutters (5-1/2″) to Twist Drill Bits (11″)
  • 2-Speed Gear Box is optimized for annular cutters up to 1-1/2″ (400 RPM) and twist bits up to 1/2″ (690 RPM)
  • On-Off Switch for quickly and easily killing power to the motor
  • Built-in LED light illuminates the work surface

*This item is not subject to a 30 Day satisfaction guarantee. Any issues related to the product must be dealt with directly by the Manufacturer (Milwaukee).*

Looking for annular cutters?  Click here.

Additional information

Weight 44.5 lbs
