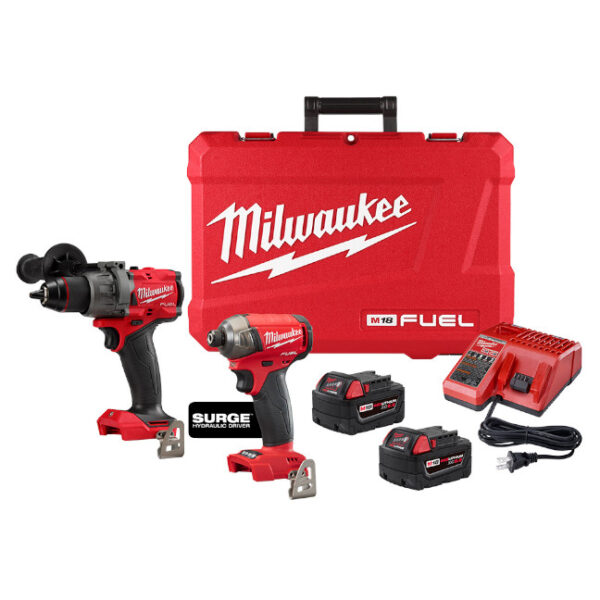

Milwaukee 3699-22 M18 FUEL™ 2-Tool Hammer Drill and SURGE™ Hydraulic Driver Combo Kit

Description

Milwaukee 3699-22 M18 FUEL™ 2-Tool Hammer Drill and SURGE™ Hydraulic Driver Combo Kit

The Milwaukee 3699-22 M18 FUEL™ 2-Tool Hammer Drill and SURGE™ Hydraulic Driver Combo Kit includes:

• 2904-20 M18 FUEL™ 1/2″ Hammer Drill/Driver
• 2760-20 M18 FUEL SURGE 1/4″ Hex Hydraulic Driver
• 2 – 48-11-1850 M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Packs
• 48-59-1812 M18™ & M12™ Multi-Voltage Charger
• Side Handle
• 2 – Belt Clips
• Carrying Case

2904-20 M18 FUEL™ 1/2″ Hammer Drill/Driver:

Features:

• Product no. 2904-22
• Most Powerful Hammer Drill
• Only 6.9″ in length for access into tight spaces and reduced fatigue
• Auto-Stop™ Control Mode enhances safety
• POWERSTATE™ Brushless Motor:
  • • • Delivers the power to complete the widest range of applications of any hammer drill driver
• Fastest Drilling and Driving applications under load
• Auto-Stop Feature:
  • • • Protects from over-rotation in a bindup for enhanced safety
      • Equipped with a dedicated autostop light on foot of tool to indicate a protection event
• 1/2″ All-metal Chuck with Carbide Teeth for maximum durability, grip and bit retention
• Mechanical Clutch for consistency in driving a wide range of fasteners
• Hammer Drill Mode for fast drilling into Brick, Block or Concrete
• All-metal belt clip for portability
• 1,400 in-lbs of torque
• LED light for better visibility in low-light situations
• Unmatched Performance with the most runtime in class with the XC5.0Ah batteries

Specifications:

• Battery voltage and chemistry: 18V Lithium Ion
• Capacity in Steel: 1/2″
• Capacities in Wood:
  • • • 1-1/2″ with Flat bit
      • 1-1/2″ with Auger bit
      • 3-1/2″ with Hole saw
      • 2-9/16″ with Self-feed bit
      • 5/8″ diameter screws
• Capacity in Masonry: 5/8″
• No load speed ranges:
  • • • Low: 0 to 500 RPM
      • High: 0 to 2,100 RPM
• Blows per minute: High: 0 to 33,000 BPM
• Peak torque: 1,400 in-lbs
• Chuck: 1/2″ All Metal Ratcheting
• Length: 6.95″
• Height: 8.23″
• Width: 2.38″
• Weight: 3.3 lbs

2760-20 M18 FUEL SURGE 1/4″ Impact Driver:

FLUID-DRIVE™ Hydraulic Powertrain:

• Reduces metal-on-metal contact inside the tool
• Minimizes wear for increased durability compared to standard impact drivers
• Delivers smoother performance, longer service life and quieter operation
• Completely sealed mechanism filled with hydraulic fluid
• Fluid is compressed and expanded 4,000 times per minute (IPM) to generate torque

50% Quieter than standard impact drivers:

• 76 dBA operating level is about 10 dBA lower than standard impact drivers
• Rule of thumb: 10 dBA reduction in noise level is perceived as 50% quieter
• In most applications SURGE is below the OSHA requirement for hearing protection

3X Less vibration:

• Smoother operation
• Superior operator control
• Less cam out
• Less operator strain and fatigue

Longer sustained torque:

• 450 in-lbs of longer sustained torque
• Delivers equal or faster driving speed than standard impact drivers
• Reaches peak torque faster
• Holds peak torque longer
• Impacts faster at 4,000 IPM

4-Mode Driver Control:

• For greater control over output speed and power
• Self-Tapping Screw Mode reduces walking when starting self-tapping screws
• Self-Tapping Screw Mode reduces over-driving, breaking and stripping out of screws

Milwaukee M18 FUEL advantage:

• POWERSTATE™ Brushless Motor delivers faster cuts, reduced heat and extended service life
• REDLITHIUM™ Battery Pack for more work per charge and more work over the life of the pack
• REDLINK PLUS™ Intelligence optimizes performance and overload protection

Specifications:

• Battery voltage and chemistry: 18V Lithium Ion
• No load speed: 3,000 RPM
• Impacts Per Minute: 4,000 IPM
• Peak torque: 450 in-lbs
• Application sound rating: 76 dBA
• Tool weight: 2.3 lbs
• Length: 5″
• Height: 7.67″
• Width: 2.38″
• Tool warranty: 5 years
• Battery warranty: 2 years

Typical small and medium fastener applications:

• Self-tapping screws
• Finish work
• Wood screws
• No Hub bands
• Small diameter hex head bolts
• Deck screws
• Cabinet screws

Typical users:

• Carpenters
• Remodelers
• Electricians
• Mechanical contractors
• HVAC contractors
