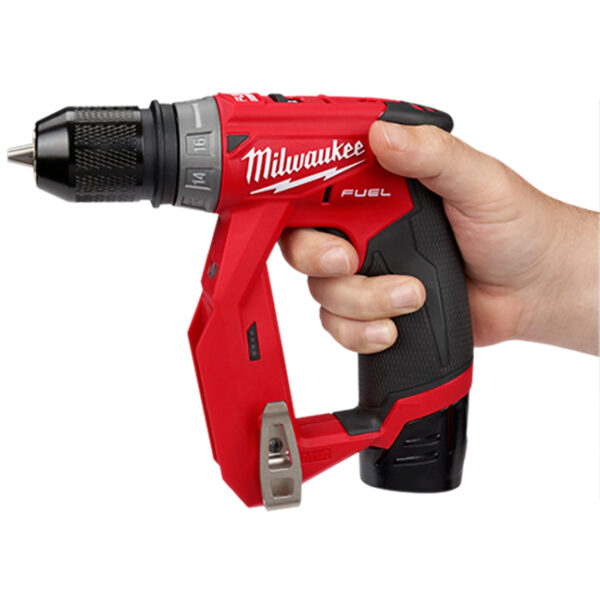

Milwaukee 2505-22 M12 FUEL Installation Drill Driver Kit

(3 customer reviews)


Only 2 Available (can be backordered)

UOM: EA SKU: 2505-22 Categories: , , , , , , , UPC: 045242541232


Milwaukee 2505-22 M12 FUEL Installation Drill Driver Kit

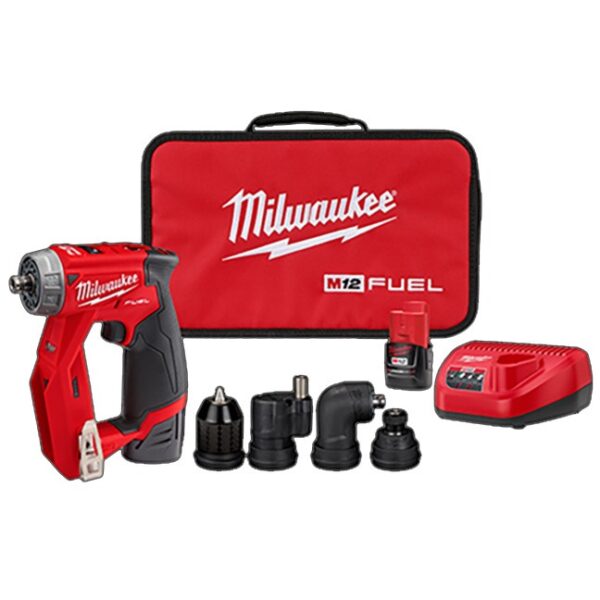

The Milwaukee 2505-22 M12 FUEL Installation Drill Driver Kit includes:

  • 2505-20 M12 FUEL™ Installation Drill/Driver – tool only
  • 2 – 48-11-2420 M12™ REDLITHIUM™ CP2.0 Battery Packs
  • 48-59-2401 M12™ Lithium-ion Battery Charger
  • Right Angle Attachment
  • Offset Attachment
  • 3/8″ Metal Chuck Attachment
  • 1/4″ Hex Attachment
  • Belt Clip
  • Compartmentalized Contractor Bag

Also available as a tool/attachment only – no batteries or charger: 2505-20

4-1 Dedicated Solutions:
  • 4 interchangeable solutions provide maximum versatility
  • Each attachment connects in 16 different positions for access at almost every angle
  • 1/4” Hex, 3/8” Chuck, and Offset attach to the right angle for additional drilling or fastening needs at a right angle

Unrivaled Access and Control:

  • Purposefully designed to access uniquely challenging locations
  • Inline grip on the back of the tool provides additional tool control & balance
  • Lightest, Most Compact
  • Only 5.12” in length
  • 2.0 lbs with battery attached
  • Allows easier access in tight spaces
  • Less user fatigue


  • 4-in-1 Dedicated Solutions
  • Unrivaled Access and Control
  • Up to 300 in-lbs of maximum torque
  • Offset Attachment provides ultimate access to tight corners and will not damage or mar finished materials when fastening
  • Right Angle Attachment provides efficient fastening and/or drilling at 90º for unrivaled access in tight spaces
  • All Metal 3/8” Chuck and ¼” Hex attachments
  • Delivers the versatility to efficiently perform most drilling & fastening applications
  • Magnetic Bit Holder holds multiple bits on board to save time when switching accessories
  • 5.12” wide and only 2.0 lbs with battery attached
  • Inline grip allows for maximum tool control and easier access to hard to reach places
  • Flat Top of tool allows easier drilling/fastening when tool is flush to a surface
  • ¼” Hex, 3/8” Chuck, and Offset attachments connect to Right Angle attachment
  • Provides added versatility when drilling and fastening at a right angle
  • POWERSTATE™ Brushless Motor delivers 300 in-lbs of max torque
  • Attachments connect in 16 different positions for access at almost every angle
  • Belt Clip attached
  • Compatible with all M12™ batteries
  • Compartmentalized Contractor Bag allows for easy attachment organization and tool mobility


  • Battery voltage and chemistry: 12V Lithium Ion
  • Maximum torque: 300 in-lbs
  • Length: 5.12″
  • Height: 7″
  • Width: 1.8″
  • Weight: 2 lbs

Additional information

Weight 2 lbs
Brand Name

3 reviews for Milwaukee 2505-22 M12 FUEL Installation Drill Driver Kit

  1. Jarad

    Coming from a electrician side of work i really think this is a tool i have found my self using it more then i ever thought i would it gets into some awkward spaces with out a problem and hands down id buy it again

  2. Christopher Weber

    Great product that gives you close proximity performance! A must have for any trade…

  3. Steven Shigetomi

    When you don’t need the driving power of an impact and need a more of a controlled drive….this is it!! In addition, if you install cabinetry or build furniture…this tool is a must have!
