Milwaukee 2217-20NST True RMS Multimeter


Special Order Item (Ships within 10-14 Business Days)

Available on backorder


Milwaukee 2217-20NST True RMS Multimeter

The Milwaukee 2217-20NST True RMS Multimeter comes with:

  • NIST Certificate of Calibration with Data
  • Electrical test lead set
  • Dual banana thermocouple
  • 2 – AA batteries
  • Manual

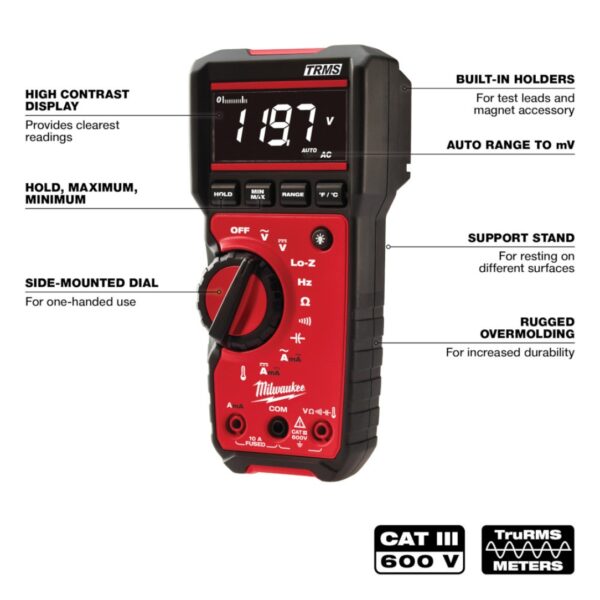

Features and Specifications:

  • A True-RMS electrical tester for accurate measurement in all applications
  • An NIST Certificate of Calibration with Data is included (needed by many organizations as proof of calibration with the date when NIST Calibration was performed)
  • Auto range to millivolts and milliamp ranges
  • Measures current up to 10 amps AC/DC
  • Measures voltage range up to 600 volts AC/DC
  • Lo-Z measurement eliminates ghost voltage
  • Easy-read high contrast, white-on-black LCD display with backlight
  • Durable over-molding increases user grip
  • Runs on AA alkaline batteries
  • Voltage: 600V AC/DC
  • Current: 10.00A AC/DC
  • Lo-Z: yes
  • Safety rating: CAT III 600V
  • Frequency: 10 Hz to 50.00 kHz
  • Voltage AC/DC: 600V
  • Resistance: 40 MΩ
  • Continuity: Audible
  • Capacitance: 1,000 μF
  • Contact temperature range: -40°F to 752°F (-40°C to 400°C)
  • HOLD/MIN/MAX: yes
  • Bar graph: yes
  • Accessory attachment: Magnetic meter holder
  • Calibration needed: Yes – calibration service recommended once a year
  • Switch type: Dial
  • Length: 6-1/2″”
  • Tool warranty: 5 years

Additional information

Weight 1.42 lbs
