Metal Hollow Wall Anchor

$0.23$0.62

UOM: N/A SKU: N/A Categories: , ,

Description

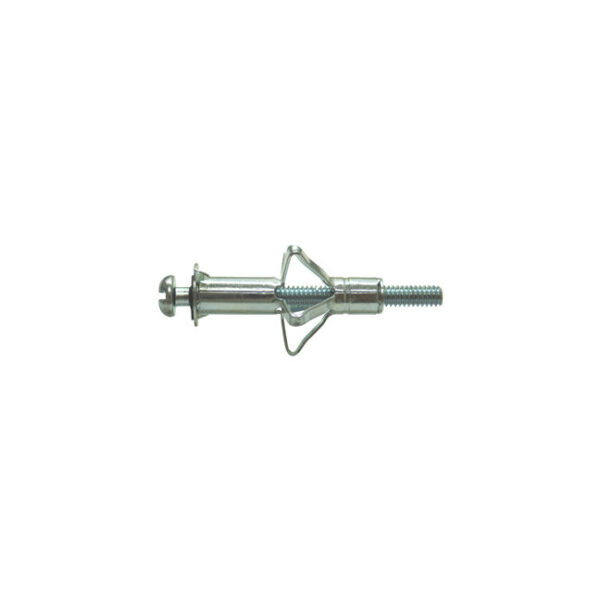

Metal Hollow Wall Anchor

Metal Hollow Wall Anchor:

  • A light duty screw type zinc plated expansion anchor
  • Designed specifically for fastening to cavity walls, constructed of drywall, plaster or wallboard
  • Anchor creates a bearing surface with expanded arms guaranteeing a secure and reliable fixture
  • Combination head for both Square socket and slot screw drivers
  • One piece unit for fast installation
  • Installs with a hollow wall anchor installation tool or a screw driver

Typical Applications:

  • Fastening into hollow material
  • Light loading applications
  • Fastening into panel-boards
  • Light shelving
Part No. Screw Size Drill Size Grip Range
MWA 18XS 1/8″ x 3/4″ 5/16″ 0-1/2″
MWA 18S 1/8″ x 1-3/4″ 5/16″ 1/8-1/2″
MWA 18SL 1/8″ x 3/4″ 5/16″ 1/8-3/4″
MWA 18L 1/8″ x 1-3/4″ 5/16″ 5/8-7/8″
MWA 316S 3/16″ x 2″ 7/16″ 1/8-5/8″
MWA 316L 3/16″ x 2-1/2″ 7/16″ 5/8-1-1/4″
MWA 14S 1/4″ x 2″ 1/2″ 1/8-5/8″
MWA 14L 1/4″ x 2-1/2″ 1/2″ 5/8-1-1/4″

Additional information

Weight N/A
Screw Size

1/8 x 3/4, 1/8 x 1-3/4, 3/16 x 2, 3/16 x 2-1/2, 1/4 x 2, 1/4 x 2-1/2

Grip Range

0-1/2, 1/8-1/2, 1/8-3/4, 5/8-7/8, 1/8-5/8, 5/8-1-1/4, 1/8-5/8, 5/8-1-1/4
