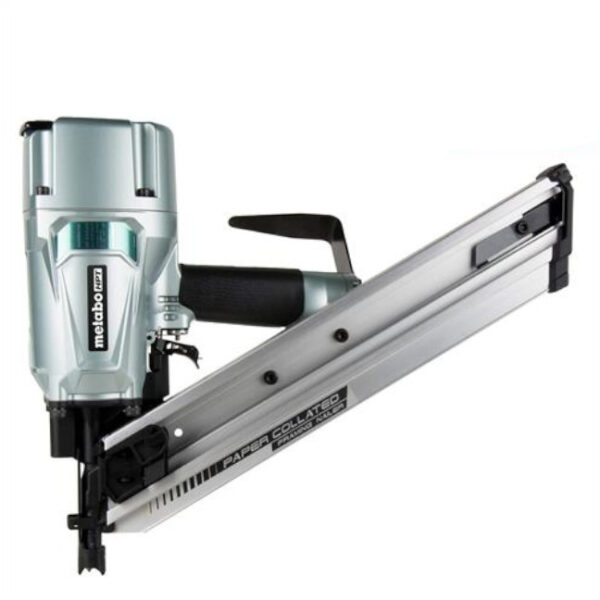

Metabo HPT NR83AA5 3-1/4″ Paper Collated Framing Nailer

Hitachi NR83AA5 Paper Collated Framing Nailer with Rafter Hook


Out of stock

SKU: NR83AA5 Categories: , , ,


Metabo HPT NR83AA5 3-1/4″ Paper Collated Framing Nailer

The Metabo HPT NR83AA5 3-1/4″ Paper Collated Framing Nailer comes with:

  • Rafter hook
  • Safety glasses


  • Cylinder valve drive system for rapid response and increased durability
  • Selective actuation on trigger allows for either sequential or contact nailing
  • Rafter hook is included for convenience on the job site
  • Accepts both 30º paper strip collated clipped head nails and 30º paper strip collated offset round head nails
  • Fires nails from 2″ to 3-1/4″ in length and .113 to .131 in nail diameter
  • Equipped with an industrial 2-piece magazine that can withstand job site abuse
  • Open nose design for easy extraction of a jammed nail
  • Ergonomic non-slip rubber grip on handle helps maintain a secure hold and comfort during use
  • Hardened claw tip resists wear on the nose and minimizes slippage when driving at an angle or “toe-nailing”
  • 9 lbs (or 9.3 lbs if the rafter hook is installed) lightweight and well balanced for easy maneuverability


  • Fastener type: Paper strip collation
  • Magazine angle: 30º
  • Fastener Length Capacity: 2″ to 3-1/4″
  • Fastener Diameter Range: .113″ to .131″
  • Magazine Capacity: 86 to 94 nails
  • Magazine Loading: Rear
  • Jam clearing: Open nose
  • Air inlet: 1/4″ NPT thread
  • Operating Pressure: 70 to 120 PSI (4.9 to 8.3 bar)
  • Dimensions (LxWxH): 18-1/8″ x 4-1/4″ x 14-3/16″
  • Weight: 9.0 lbs

Additional information

Weight 10 lbs
