Description

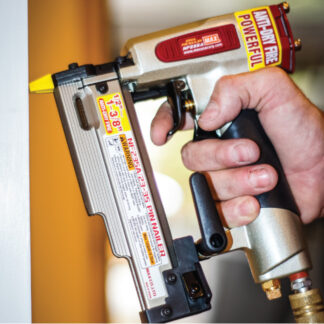

Max Tools NF235A/23-35 23ga Micro Pinner 1/2” to 1-3/8”
The Max Tools NF235A/23-35 23ga Micro Pinner 1/2” to 1-3/8”:
Features:
- Product no. NF235A/23-35
- Series: SuperFinisher
- Fires pins from 1/2” to 1-3/8”
- Anti-dry fire mechanism:
-
-
- Nailer won’t fire when no pins loaded
- Helps to prevent driver marks on surfaces
-
-
- Built with a rear exhaust helps to divert air from the operator’s face
- Large magazine capacity for lengthy operation with constant reload
- Nail indicator on the magazine clearly shows you when you are running low on nails
- Integrated belt hook for safe placement or hanging of tool when it’s not in use
Typical Applications:
- Cabinets
- Mirror and picture frame
- Finish & trim
|
Fasteners
|
|
|
COLLATION TYPE
|
Glue
|
|
NAIL GUN ANGLE
|
Straight |
|
STRIP OR COIL
|
Strip
|
|
COMPATIBLE FASTENER TYPES
|
Micro pins
|
|
MINIMUM FASTENER SIZE
|
1/2″
|
|
MAXIMUM FASTENER SIZE
|
1-3/8″
|
|
Specifications
|
|
|
WEIGHT
|
2.2 lbs
|
|
DIMENSIONS
|
7-1/2″(H) x 2-3/8″(W) x 9-3/8″(L) |
|
MINIMUM OPERATION PRESSURE
|
60 PSI
|
|
MAXIMUM OPERATION PRESSURE
|
120 psi
|
|
AIR INLET SIZE
|
1/4″
|
|
MAGAZINE CAPACITY
|
100
|
|
DEPTH CONTROL
|
No
|
|
JAM CLEARING
|
Yes
|
|
TRIGGER TYPE |
Double Trigger |
|
AIR CONSUMPTION
(FT3/CYCLE) |
0.009
|
|
ACCESSORIES
|
Carry Case
|
