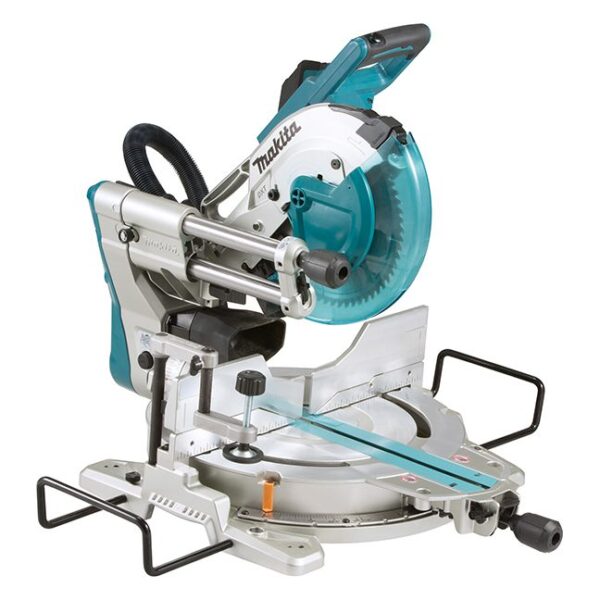

Makita LS1019L 10″ Sliding Compound Mitre Saw With Laser



UOM: EA SKU: LS1019L Categories: , , UPC: 088381843980


Makita LS1019L 10″ Sliding Compound Mitre Saw With Laser

The Makita LS1019L 10″ Dual Sliding Compound Mitre Saw includes:

  • Factory calibrated class II laser
  • 10″ 60TPI Carbide tooth blade
  • Hex wrench
  • Dust bag
  • Vertical vise
  • Triangle rule
  • Dust nozzle
  • 2 – Holders
  • Wrench holder

Maximum cutting capacities:

  • 12″ in 2X material
  • 6-5/8″ Nested crown moulding
  • 5-1/4″ Vertical baseboard

Features and Specifications:

  • Factory calibrated class II laser enables accurate alignment of blade and cutting line
  • Close To Wall “Zero Clearance” Design
  • Incorporates Makita’s Deep And eXact Cutting Technology (DXT)
  • Rail forward design enables saw to be placed against wall to maximize effective workspace
  • 3 stage gear reduction system increases capacity when cutting vertical baseboard or nested crown molding
  • 1-3/16″ guide rail diameter increases stability and cutting precision
  • Integrated guide fence and lower fence for greater rigidity and support of materials
  • Fence secures to holders to prevent damage and/or loss
  • Front bevel knob for easy adjustments without reaching
  • Electronic speed control maintains constant speed under heavy load
  • Soft start feature gradually increases speed to eliminate start up shock
  • No load speed: 4,300 RPM
  • Sliding Rail Mechanism w/3 Linear Ball Bearings increases rigidity for precise, adjustment-free cuts
  • Left Side Sliding Fence adjusts outwards when bevel cutting or inwards to support of small or delicate materials
  • Soft Start eliminates start up shock by gradually increase speed
  • Large mitre table ideal for use with wide materials
  • Easy to operate mitre angle lock with free spin releasing lever and locking lever
  • Dual dust collection ports for excellent dust collection
  • Horizontal handle design
  • 2 stage safety switch for increased operator safety
  • Ergonomic horizontal soft rubber grip design for vibration absorption and comfortable operation
  • Bevel capacity: 48º Left or Right with Positive Stops at 0º, 22.5º, 33.9º, 45º & 48º
  • Mitre capacity: 60º Left or 60º Right with Positive Stops at 0º, 15º, 22.5º, 31.6º, 45º & 60º
  • Blade diameter: 10″ (255 mm)
  • Arbor size: 5/8″ (15.88 mm)
  • No load speed: 3,200 RPM
  • Amperage: 15.0 A (120V AC)
  • Vibration level: 2.5 m/s²
  • Noise level: 91 dB(A)
  • Saw overall dimensions: 31-3/4″L x 25″W x 26″H (805 mm x 644 mm x 660 mm)
  • Net weight: 57.6 lbs (26.1 kg)

Click here for a selection of Mitre Saw Blades

Additional information

Weight 57.9 lbs
