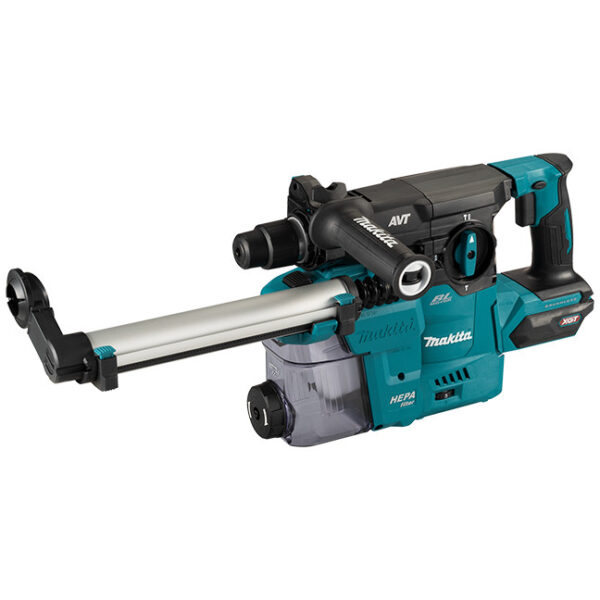

Makita HR008GZ05 40V Max XGT 1-3/16″ SDS Plus Rotary Hammer with DX10 Dust Extraction Attachment



UOM: EA SKU: HR008GZ05 Categories: , ,


Makita HR008GZ05 40V Max XGT 1-3/16″ SDS Plus Rotary Hammer with DX10 Dust Extraction Attachment

The Makita HR008GZ05 40V Max XGT 1-3/16″ SDS Plus Rotary Hammer with DX10 Dust Extraction Attachment includes:

  • Tool only – batteries and charger sold separately
  • DX10 Dust Extraction System
  • Side Handle
  • Depth Gauge
  • Bit Grease


  • Product no. HR008GZ05
  • Works with Onboard DX10 Dust Extraction System:
        • Also works with Auto-start Wireless System (AWS) Dust Extractors – sold separately
  • Brushless motor
        • Generates less heat buildup
        • Ideal for use in prolonged manufacturing / production applications
  • AWS (Auto-Start Wireless System):
        • Uses Bluetooth® technology to communicate between tool and vacuum
        • Enables wireless control when used with Makita AWS cordless tools
  • Anti-vibration technology (AVTTM) actively counteracts vibration of tool
  • eXtreme Protection Technology (XPT):
        • Maximizes protection against dust, dirt and debris
        • Optimizes performance in extreme conditions
  • Active Feedback sensing Technology (AFT):
        • Automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
  • Constant speed control maintains speed under heavy load
  • Anti-restart prevents accidental start up of tool during battery changing when switch is locked in the on position
  • 3 Operating Modes:
        • Rotation  / Hammer /  Rotation + Hammer
  • Trigger-lock button prevents accidental start-up for increased safety
  • Torque limiter stops bit rotation if bit jams for increased operator safety and tool protection
  • Electric brake stops bit immediately when trigger is released for maximum operator safety
  • Variable speed dial and trigger allows operator to adjust speed based on materials or application
  • One-touch SDS-PLUS sliding chuck for easy bit installation and removal
  • LED job light with pre-glow and after-glow illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • Use with Makita DX12 Dust Extraction Attachment for dust-free operation


  • Battery voltage and chemistry: 40V Lithium Ion
  • Bit type: SDS-PLUS
  • Drilling capacities:
        • Concrete – 1-3/16″ (30 mm)
        • Steel – 1/2″ (13 mm)
        • Wood – 1-1/4″ (32 mm)
  • Impact energy: 3.9 J (2.9 ft. lbs)
  • No load speed range: 0 to 840 RPM
  • Impacts Per Minute range: 0 to 4,500 IPM
  • Vibration level: 9.1 m/s2
  • Noise level: 91 dB(A)
  • Net weight: 10 lbs (4.5 kg)
  • Overall length: 16-5/8″ (422 mm)
DX10 Dust Extractor Attachment with HEPA Filter Cleaning Mechanism:
  • Model no. DX10
  • Compatible with Makita Rotary Hammer model HR3011FC
  • Captures concrete dust during drilling
  • Activated by the tool for operator convenience
  • OSHA Table 1 compliant on-board dust extractor:
        • Includes a filter cleaning mechanism designed to help maintain optimum suction efficiency
  • Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
  • Powered by motor fan blade in tool to maintain concrete dust suction performance
  • Extraction extension allows drilling up to 7-1/2″ deep and up to 1-3/16″ diameter holes
  • Depth stop adjustment button allows for accurate drilling depth
  • Transparent dust container provides needed visibility in determining container fullness


  • HEPA filter efficiency: 99.97% of .3 microns
  • Maximum hole diameter: 1.187″
  • Maximum hole depth: 7-1/2″
  • Container hole count capacity: 50 holes 3/8″ x 2-3/8″
  • Filter life (approx. container fillings): 200
  • Container capacity: 13.52 oz
  • Auto shut off time: After 0 seconds
  • Overall length: 22-3/4″
  • Net weight: 2.4 lbs
