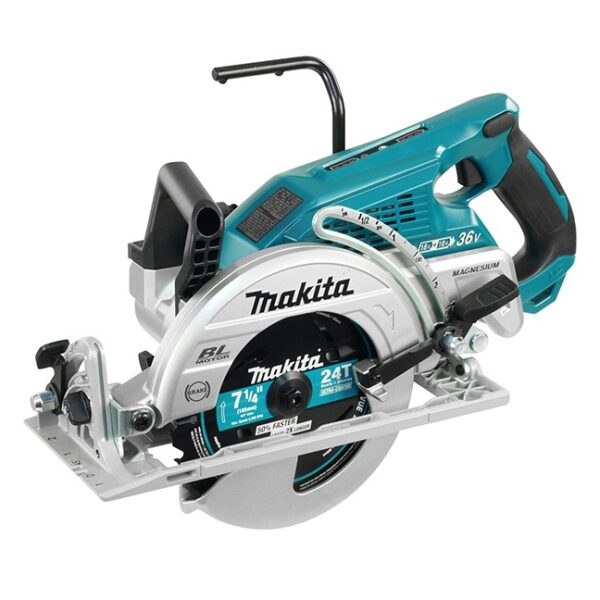

Makita DRS780Z 7-1/4″ Brushless Rear Handle Circular Saw

Makita DRS780Z 7-1/4" Brushless Rear Handle Circular Saw



UOM: EA SKU: DRS780Z Categories: , , , , UPC: 088381838665


Makita DRS780Z 7-1/4″ Brushless Rear Handle Circular Saw

Makita DRS780Z  – the world’s first Cordless Rear Handle Circular Saw

Makes 558 Cuts in 2″ x 4″ lumber using dual 5.0 Ah Batteries

Automatic torque Drive Technology (ADT):

  • Adjusts the torque and speed according to the load condition
  • Enables rapid movement between high speed and high torque applications

Maximum cutting depths:

  • 2-9/16″ (65 mm) at 0º
  • 1-3/4″ (45 mm) at 45º
  • 1-1/2″ (38 mm) at 53º

Features and Specifications:

  • Runs on 2 – 18V Li-Ion batteries
  • Two-stage safety trigger switch prevents accidental start up
  • Electric brake stops blade 3-5 seconds after trigger is released
  • Soft start eliminates start up shock
  • Brushless DC motor delivers high power to weight and size ratio
  • Brushless DC motor generates less heat buildup – ideal for prolonged use applications
  • eXtreme Protection Technology (XPT) maximizes protection against dust, debris and liquids
  • LED charge level indicator displays approximate remaining battery power
  • Lightweight design with magnesium base plate and blade case
  • Enlarged depth scale with rubberized lever for maximum operator convenience and accuracy
  • Large integrated tool hanger for job site convenience – fits 4″ x 4″ material
  • Battery protection system enhances performance, battery cycle life and overall battery life
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • Battery capacity: runs on two 18V Lithium ion batteries
  • Blade diameter: 7-1/4″ (185 mm)
  • Arbor size: 5/8″ (15.9 mm)
  • Bevel capacity: 0o to 53o with positive stops at 22.5o and 45o
  • No load speed: 5,100 RPM
  • Overall length: 17-1/2″ (446 mm)
  • Net weight: 11.0 lbs (5.0 kg)


  • Tool only (batteries and charger sold separately)
  • 7-1/4″ 24T Carbide tooth blade
  • Offset wrench

Additional information

Weight 11 lbs
Brand Name

18V Power Tools
