Description

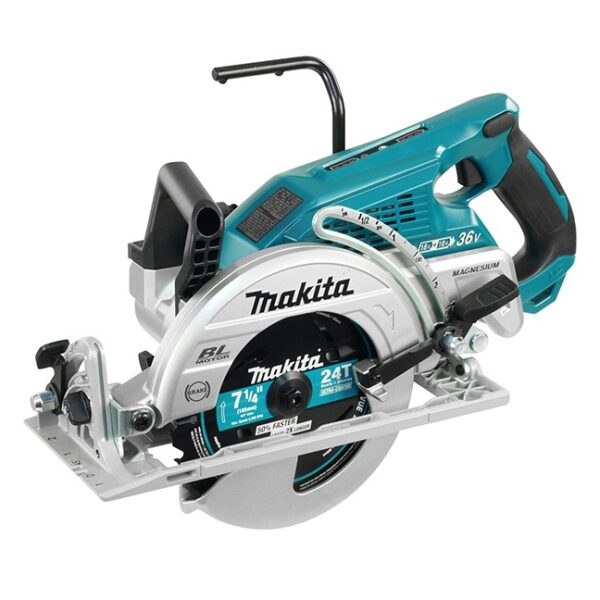

Makita DRS780Z 7-1/4″ Brushless Rear Handle Circular Saw
The Makita DRS780Z 7-1/4″ Brushless Rear Handle Circular Saw includes:
- Tool only (batteries and charger sold separately)
- 7-1/4″ 24T Carbide tooth blade
- Offset wrench
Features:
- Product no. DRS780Z
- Runs on 2 – 18V Li-Ion batteries
- Makes 558 Cuts in 2″ x 4″ lumber using dual 5.0 Ah Batteries
- Two-stage safety trigger switch prevents accidental start up
- Electric brake stops blade 3-5 seconds after trigger is released
- Soft start eliminates start up shock
- Brushless DC motor:
-
-
- Delivers high power to weight and size ratio
- Generates less heat buildup
- Ideal for prolonged use applications
-
-
- eXtreme Protection Technology (XPT):
-
-
- Maximizes protection against dust, debris and liquids
-
-
- Automatic torque Drive Technology (ADT):
-
-
- Adjusts the torque and speed according to the load condition
- Enables rapid movement between high speed and high torque applications
-
-
- LED charge level indicator displays approximate remaining battery power
- Lightweight design with magnesium base plate and blade case
- Enlarged depth scale with rubberized lever for maximum operator convenience and accuracy
- Large integrated tool hanger for job site convenience – fits 4″ x 4″ material
- Battery protection system enhances performance, battery cycle life and overall battery life
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation
Specifications:
- Battery capacity: runs on two 18V Lithium ion batteries
- Blade diameter: 7-1/4″ (185 mm)
- Arbor size: 5/8″ (15.9 mm)
- Maximum cutting depths:
-
-
- 2-9/16″ (65 mm) at 0º
- 1-3/4″ (45 mm) at 45º
- 1-1/2″ (38 mm) at 53º
-
-
- Bevel capacity: 0o to 53o with positive stops at 22.5o and 45o
- No load speed: 5,100 RPM
- Overall length: 17-1/2″ (446 mm)
- Net weight: 11.0 lbs (5.0 kg)
Also available as a kit with batteries and charger: DRS780PT2X
Click here for a selection of Makita 7-1/4″ Circular Saw Blades
