Description

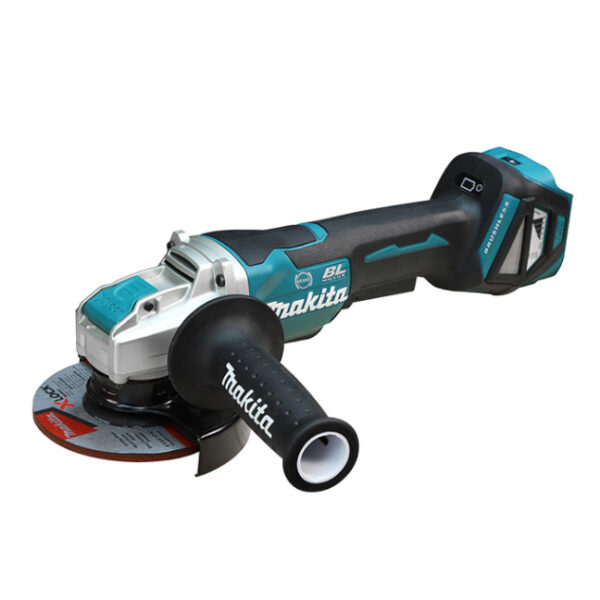

Makita DGA519Z 18V LXT Brushless 5″ X-Lock Angle Grinder – tool only
The Makita DGA519Z 18V LXT Brushless 5″ X-Lock Angle Grinder – tool only includes:
- Tool only – batteries and charger sold separately)
- 5″ Depressed center wheel
- Wheel cover
- Side handle

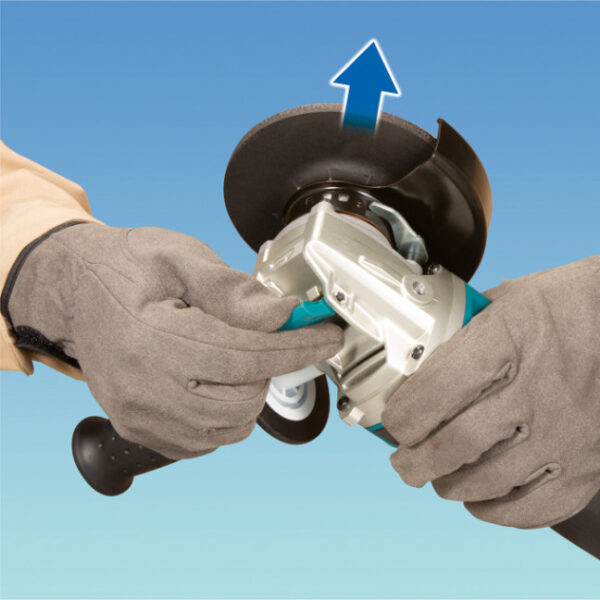

X-Lock Mechanism:
- Enables installation and removal of discs without a wrench
- Prevents over or under tightening of abrasive wheels
- X-lock abrasives may be used with other 5” arbor angle grinders with 7/8” arbor
Automatic torque Drive Technology (ADT):
- Adjusts the torque and speed according to load condition
- Enables quick changes between high speed and high torque applications
eXtreme Protection Technology (XPT):
- Maximizes protection against dust, debris and liquids
- Optimizes performance in extreme conditions
Active Feedback sensing Technology (AFT):
- Automatically shuts the tool down if there is a sudden drop in rotation speed (e.g. kick-back)
Brushless DC motor:
- Delivers high power to weight and size ratio
- Generates less heat buildup
- Ideal for prolonged use manufacturing / production applications
Battery protection system:
- Provides over-discharge, temperature and circuit protection
- Enhances performance, battery cycle life, and overall battery life
More Features:
- Product no. DGA519Z
- Two-Stage Safety Paddle Switch
- Cordless
- Electric brake stops wheel immediately for maximum operator safety
- Anti-restart prevents accidental start up of tool during battery changing when switch is locked in the on position
- Soft start gradually increases speed to eliminate start up shock
- Variable speed dial enables operator to adjust wheel speed based on materials or application
- Electronic current limiter protects motor from accidental overload
- Integrated dust screens act as additional protection against dust, dirt and debris
- Comfortable ergonomic soft rubber grip design absorbs vibration
Specifications:
- Battery voltage and chemistry: 18V Lithium Ion
- Grinding wheel diameter: 5″ (125 mm)
- No load speed: 8,500 RPM
- Arbor size: 5/8″-11 UNC
- Vibration level: 5.5 m/s2
- Noise level: 80 dB(A)
- Overall length: 15-1/2″ (396 mm)
- Net weight: 4.9 lbs (2.2 kg)
Makita X-LOCK Diamond Blades – sold separately |
||||
Part no. | Diameter | Rim Type | Cut Type | Material |
E-07238 | 5″ | Segmented |
Aggressive | Masonry |
E-07244 | 5″ | Turbo |
Smooth | Masonry |
E-07406 | 5″ | Continuous |
Precise | Ceramic and Granite |
Makita X-LOCK Wire Wheels – sold separately |
||
Part no. | Diameter | Description |
Stainless Steel | ||
D-72590 | 4-1/2″ | Full Cable Knotted Twist Wire Wheel |
D-72609 | Stringer Bead Knot Wire Wheel | |
Carbon Steel | ||
D-72643 | 4-1/2″ | Full Cable Knotted Twist Wire Wheel |
D-72659 | Stringer Bead Knot Wire Wheel | |
D-72665 | Crimped Wire Wheel Brush |
Makita X-LOCK Wire Cup Brushes – sold separately |
||
Part no. | Diameter | Description |
Stainless Steel | ||
D-72584 | 3″ | Crimped Wire Cup Brush |
D-72578 | 3-1/8″ | Knot Wire Cup Brush |
Carbon Steel | ||
D-72637 | 3″ | Crimped Wire Cup Brush |
D-72621 | 3-1/8″ | Knot Wire Cup Brush |
D-72615 | 3-1/8″ | Knot Thin Wire Cup Brush |
Brass Coated Carbon Steel | ||
D-72671 | 3″ | Crimped Wire Cup Brush |
