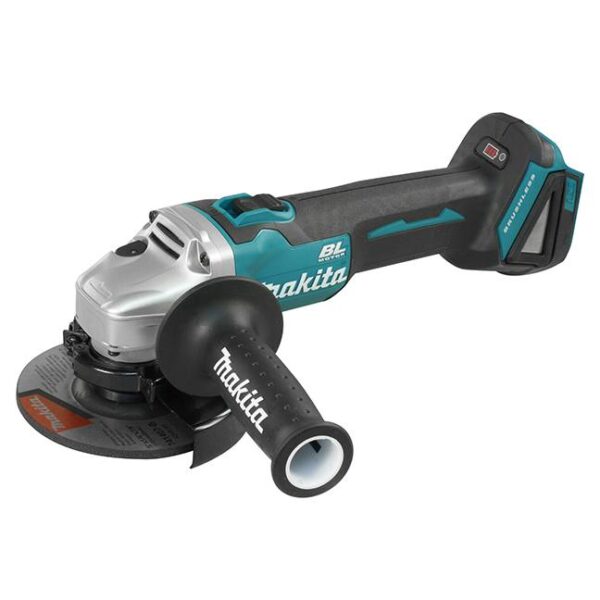

Makita DGA506Z 5″ 18V Angle Grinder – Thumb Switch and Electric Brake – Tool Only


Only 1 Available (can be backordered)

UOM: EA SKU: DGA506Z Categories: , , UPC: 088381814287


Makita DGA506Z 5″ 18V Angle Grinder – Thumb Switch and Electric Brake – Tool Only

The Makita DGA506Z 18V 5″ Angle Grinder – Thumb Switch and Electric Brake includes:

  • Tool only (batteries and charger sold separately)
  • 5″ Depressed Center Grinding disc
  • Side handle
  • Tool-less wheel guard
  • Lock nut wrench
  • Inner flange
  • Lock nut


  • Product no. DGA506Z
  • Thumb Switch with Lock-On
  • Electric Brake
  • Brushless DC motor:
        • High power to weight and size ratio
        • Generates less heat buildup
        • Ideal for prolonged use in manufacturing / production applications
  • Automatic torque Drive Technology (ADT):
        • Adjusts the torque and speed according to the load condition
        • Enables rapid movement between high speed and high torque applications
  • XPT (eXtreme Protection Technology):
        • Enhances dust and drip resistance
        • Optimizes performance
  • LED charge level indicator displays approximate remaining battery power
  • Anti-restart prevents accidental start up of tool during battery changing when switch is locked in the on position
  • Soft start gradually increases speed to eliminate start up shock
  • Electronic current limiter protects motor from accidental overload
  • Electric brake stops wheel or disc 3-5 seconds after switch is released for increased operator safety
  • Battery protection system:
        • Provides over-discharge, temperature and circuit protection
        • Enhances performance, battery cycle life and overall battery life
  • Integrated dust screens act as additional protection against dust, dirt and debris
  • Slim, ergonomic soft rubber grip design for vibration absorption and comfortable operation


  • Battery voltage and chemistry: 18V Lithium Ion
  • Grinding wheel diameter: 5″ (125 mm)
  • No load speed: 8,500 RPM
  • Arbor size: 7/8″ – 11 UNC
  • Spindle thread: 5/8″-11 UNC
  • Vibration level: 6.0 m/s²
  • Noise level: 79 dB(A)
  • Overall length: 14-1/4″ (362 mm)
  • Net weight: 4.2 lbs (1.9 kg)
Available model variations – 18V 5″ Brushless Angle Grinders:

Click here for a selection of Cutoff Wheels
