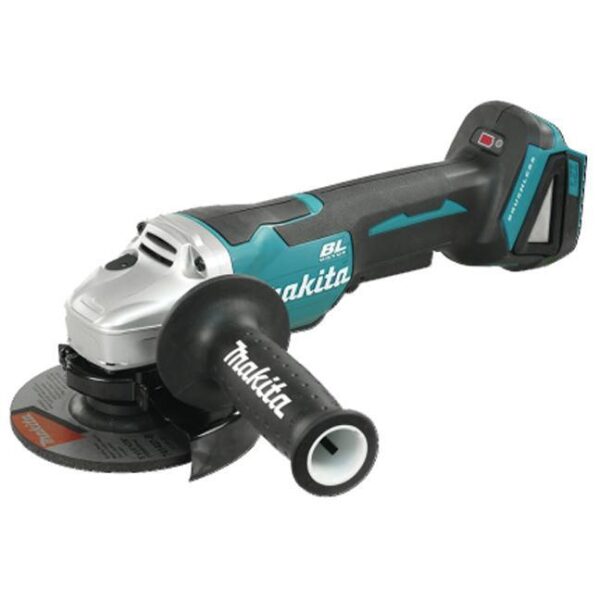

Makita DGA505Z 18V 5″ Brushless Angle Grinder – Paddle Switch – Tool Only

Description

Makita DGA505Z 18V 5″ Brushless Angle Grinder – Paddle Switch – Tool Only

The Makita DGA505Z 18V 5″ Brushless Angle Grinder – Paddle Switch includes:

• Tool only (batteries and charger sold separately)
• 5″ Depressed Center Grinding disc
• Side handle
• Tool-less wheel guard
• Lock nut wrench
• Inner flange
• Lock nut

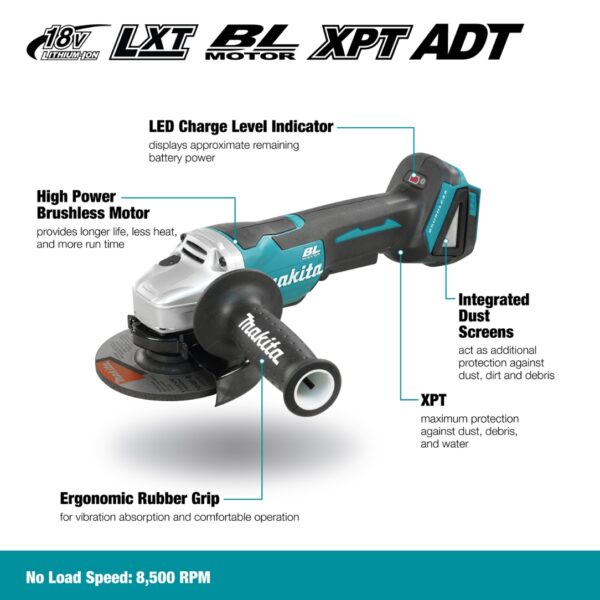

Features:

• Product no. DGA505Z
• 2-Stage Safety Paddle Switch
• Brushless DC motor:
  • • • High power to weight and size ratio
      • Generates less heat buildup
      • Ideal for prolonged use in manufacturing / production applications
• Automatic torque Drive Technology (ADT):
  • • • Adjusts the torque and speed according to the load condition
      • Enables rapid movement between high speed and high torque applications
• XPT (eXtreme Protection Technology):
  • • • Enhances dust and drip resistance
      • Optimizes performance
• LED charge level indicator displays approximate remaining battery power
• Anti-restart prevents accidental start up of tool during battery changing when switch is locked in the on position
• Soft start gradually increases speed to eliminate start up shock
• Electronic current limiter protects motor from accidental overload
• Electric brake stops wheel or disc 3-5 seconds after switch is released for increased operator safety
• Battery protection system:
  • • • Provides over-discharge, temperature and circuit protection
      • Enhances performance, battery cycle life and overall battery life
• Integrated dust screens act as additional protection against dust, dirt and debris
• Slim, ergonomic soft rubber grip design for vibration absorption and comfortable operation

Specifications:

• Battery voltage and chemistry: 18V Lithium Ion
• Grinding wheel diameter: 5″ (125 mm)
• No load speed: 8,500 RPM
• Arbor size: 7/8″ – 11 UNC
• Spindle thread: 5/8″-11 UNC
• Vibration level: 6.5 m/s²
• Noise level: 79 dB(A)
• Overall length: 14-1/4″ (362 mm)
• Net weight: 4.2 lbs (1.9 kg)

Available model variations – 18V 5″ Brushless Angle Grinders:

• DGA504Z – tool only – Thumb Switch with Lock-On
• DGA505Z – tool only – 2-Stage Safety Paddle Switch
• DGA506Z – tool only – Thumb Switch with Lock-On & Electric Brake
• DGA508Z – tool only – 2-Stage Safety Paddle Switch & Electric Brake
• DGA508RTX2 Kit with Paddle Switch, Electric Brake, Battery and Charger
