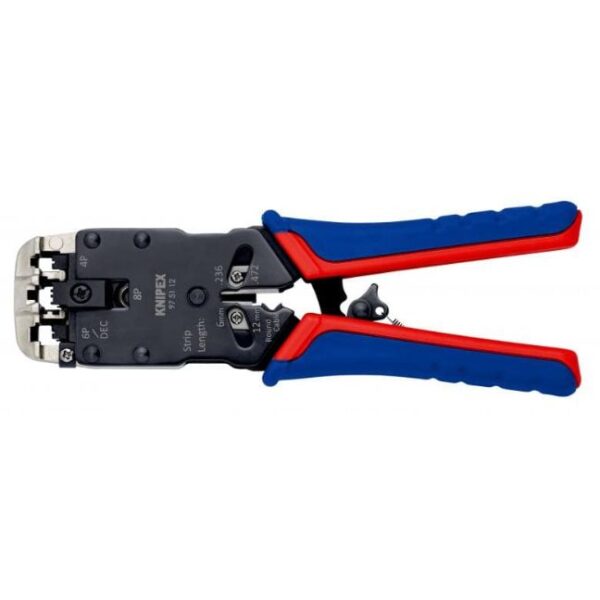

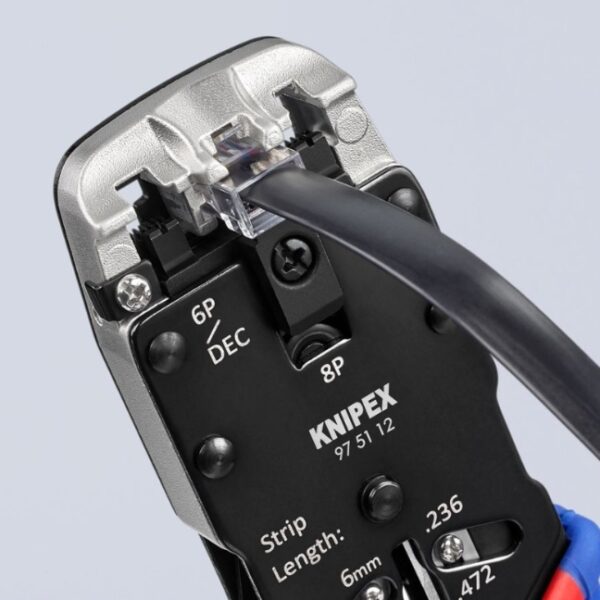

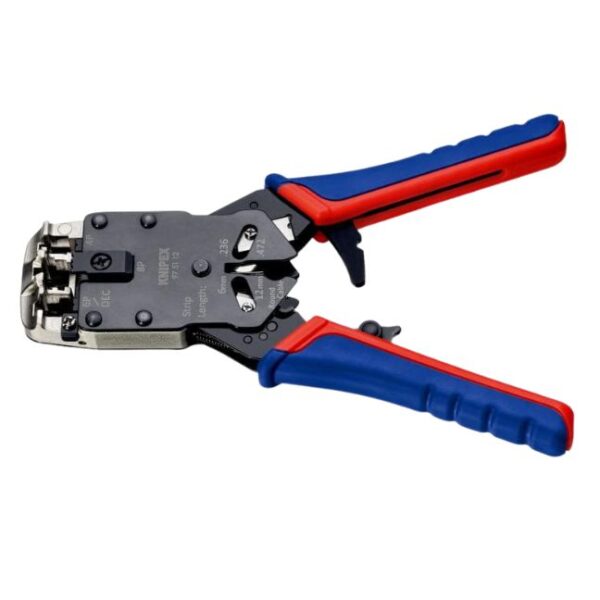

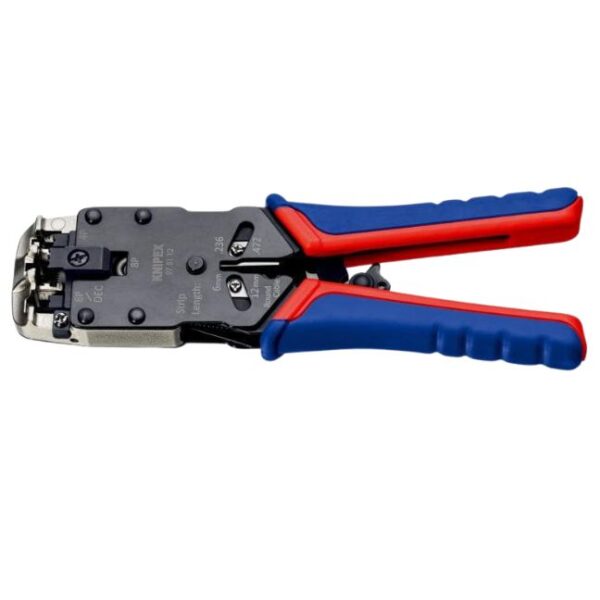

Knipex 975112 8-1/4″ Crimping Pliers for 4, 6 and 8 Pole Western Plug Types

$244.34

Backorder

UOM: EA SKU: 975112 Categories: , , UPC: 843221006143

Description

Knipex 975112 8-1/4″ Crimping Pliers for 4, 6 and 8 Pole Western Plug Types

Knipex 975112 8-1/4″ Crimping Pliers for 4, 6 and 8 Pole Western Plug Types:

  • Product no. 975112
  • Improved opening mechanism, optimized design, less weight
  • Used to crimp 4-pin, 6-pin and 8-pin Western plugs
  • For cutting and stripping unshielded ribbon telephone cables
  • Parallel crimping ensures precise crimping
  • Ratchet mechanism (unlockable):
        • Ideal for repetitive, high-crimping quality
  • Lever action delivers:
        • Optimum transmission of force
        • Fatigue-reduced operation
  • For Western plug types:
        • RJ 10 (7.65 mm wide) 4-poles
        • RJ 11/12 3/8″ (9.65 mm wide) 6-poles
        • RJ 45 15/16″ (11.68 mm wide) long design 8-poles

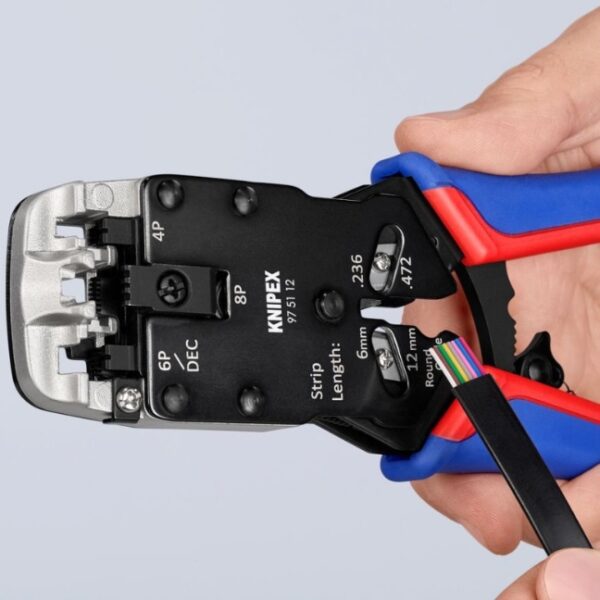

  • With length cutter and stripping knife for ribbon cables 1/4″ and 1/2″ (6 and 12 mm) length
  • Head burnished, handles with two-color multi-component grips

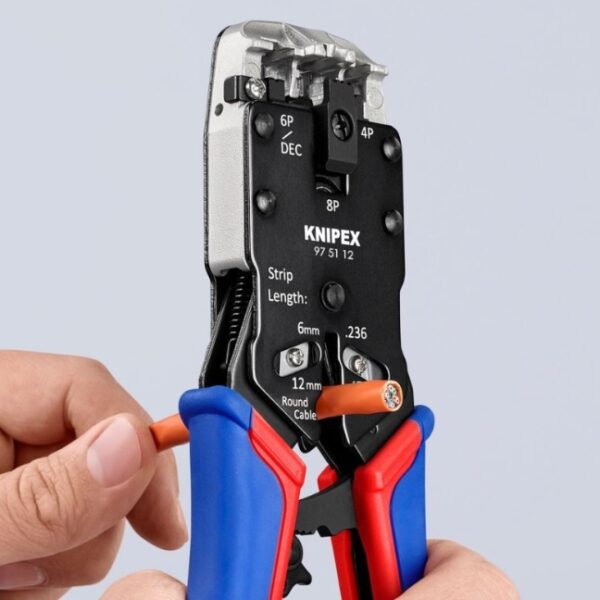

  • With additional stripping device for round cables
  • Made of special quality chrome vanadium electric steel, oil-hardened
  • 3 Crimping positions

Specifications:

  • Country of Origin: Taiwan
  • Length: 8-1/4″
  • Width: 2-3/8″
  • Height: 1″
  • Weight: 1.175 lbs.
  • 1000 Volt Insulated: No
  • ESD Indicator: No
  • Spring Loaded: Yes
  • Material Type: Chrome vanadium electric steel, oil-hardened
  • Handle Type: Multi-component
  • Surface Finish: Black-oxide
  • Crimping Profile: Western crimp
  • Crimping Positions: 3
  • Crimping Capacity:
        • RJ 10 (4-poles) 7.65 mm
        • RJ 11/12 (6-poles) 3/8″ (9.65 mm)
        • RJ 45 (8-poles) 15/32″ (11.68mm)
  • Cable Type: RJ 10|RJ 11|RJ 12|RJ 45

Replacement Blades sold separately:

Click here for more Knipex Strippers and Crimpers

Additional information

Weight .5 lbs
Brand Name

Handle Type

Ergonomic

Plier Type

Wire Stripper

Length

8-1/4", 200mm
