Description

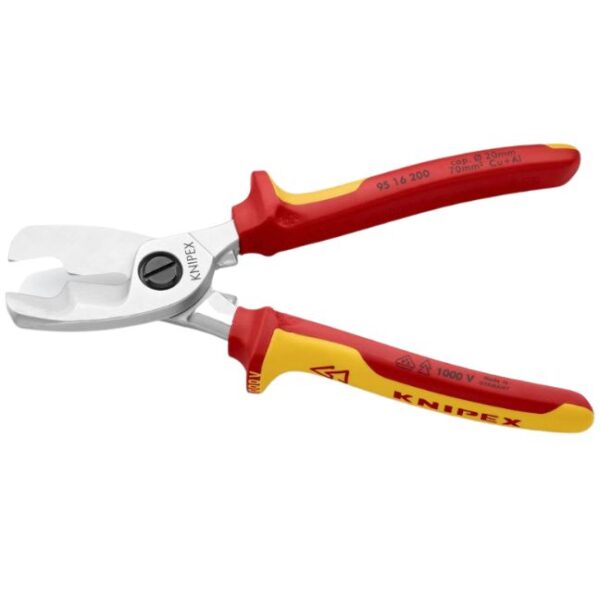

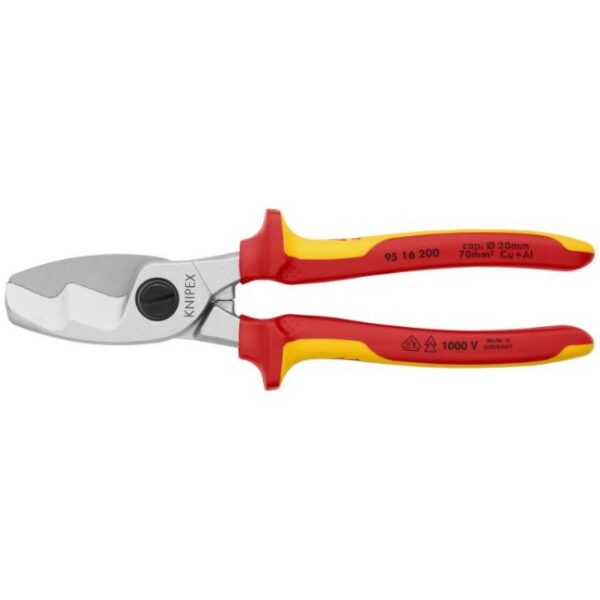

Knipex 9516200 8″ (200mm) Cable Shears with Twin Cutting Edge – 1000V Insulated
Knipex 9516200 8″ (200mm) Cable Shears with Twin Cutting Edge – 1000V Insulated:
Features:
- Article no. 9516200
- Handles insulated to 1000V with multi-component grips
- VDE-tested

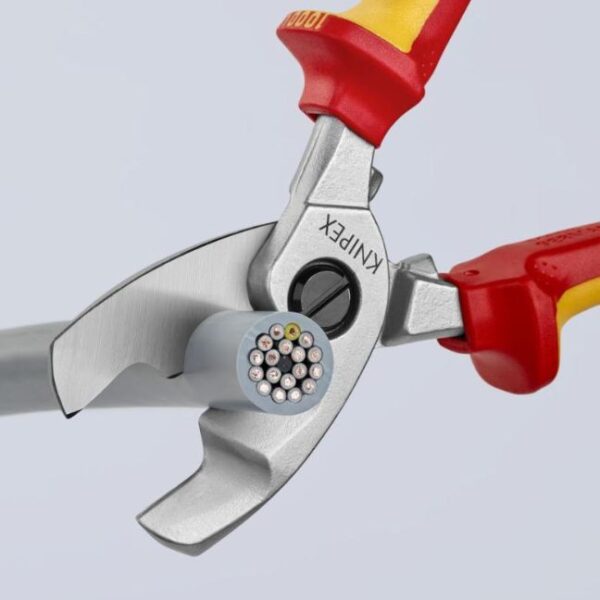

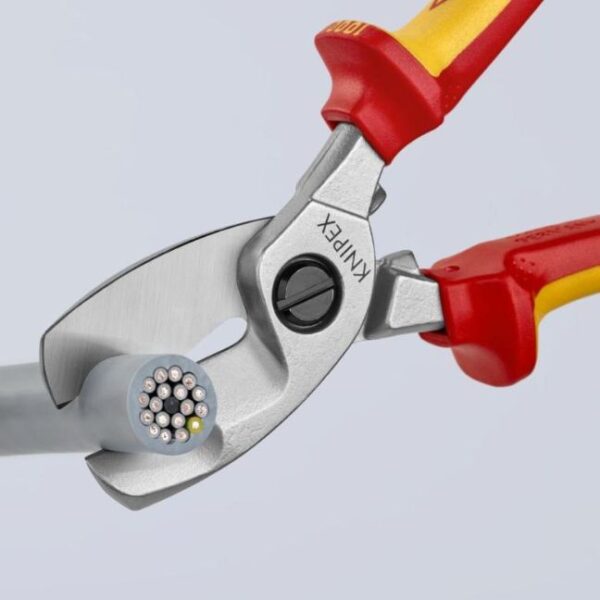

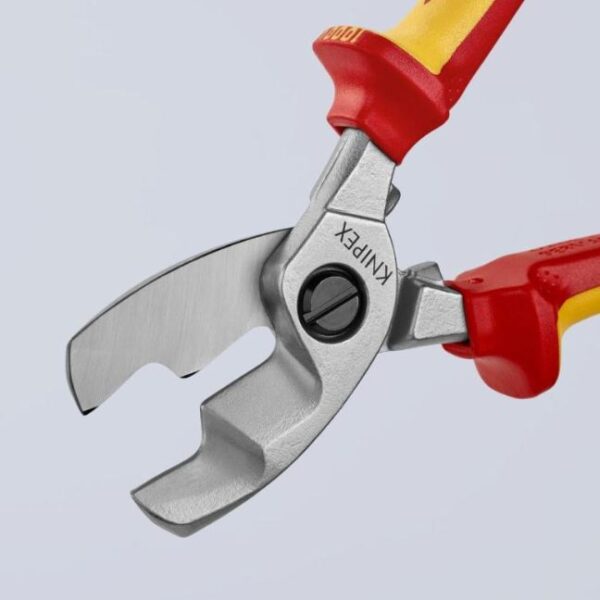

- Double cutting edge:
-
-
- Initial cut – insulating sheath in the front cutting area
- Final cut – conductor in the back cutting area
- Provides a comfortable handle position in all cutting situations inside the specified cutting capacity
-
-
- Cutting Capacity:
-
-
- Copper cable, multiple-stranded – diameter: 25/32″ (20mm) / 2-3/4″(70mm2)
- AWG (American Wire Gauge): 2/0
-
-
- For cutting copper and aluminum cables
- Not suitable for steel wire and hard drawn copper conductors
- Precision-ground, hardened blades
- Clean and smooth cut without crushing and deformation
- Adjustable bolted joint, self-retaining screw
- Low handforce required due to favourable lever ratio and special blade geometry
- Pinch guard prevents operators’ fingers being pinched
- High-grade special tool steel, forged, oil-hardened
Specifications:
- Shears: Chrome-plated
- Handles: Insulated with multi-component grips, VDE-tested
- Weight: 340 g
- Dimensions: 200 mm x 68 mm x 19 mm
- Standard: DIN EN 60900 IEC 60900
- Cutting Capacity:
-
-
- Copper cable, multiple-stranded: 70 mm2 (Ø 20 mm)
- AWG (American Wire Gauge): 2/0
-
-
- VDE tested: Yes
Available model variations – sold separately:
- 9511200 8″ (200mm) Cable Shears with Twin Cutting Edge and Plastic Coated Handles
- 9512200 8″ (200mm) Cable Shears with Twin Cutting Edges and Multi-component Handles
- 9516200 8″ (200mm) Cable Shears with Twin Cutting Edge – 1000V Insulated
