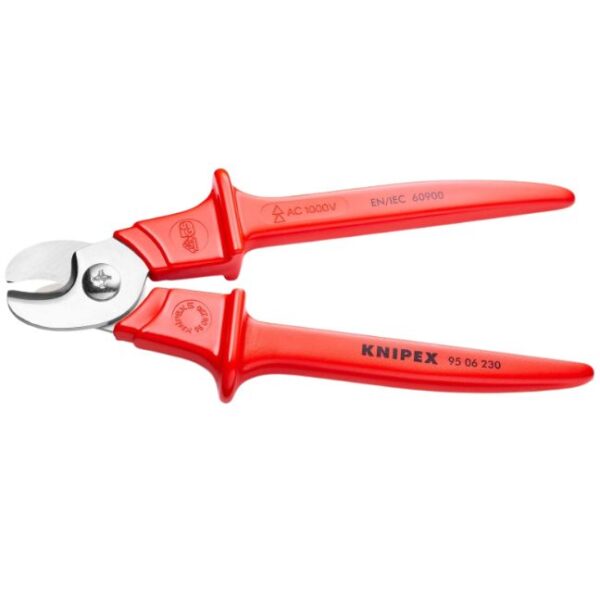

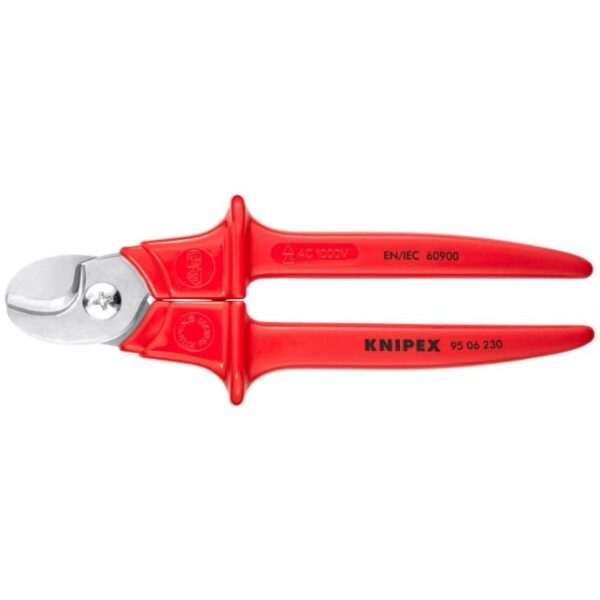

Knipex 9506230 9″ (230mm) Cable Shears – 1000V Insulated
Knipex 9506230 9″ (230mm) Cable Shears – 1000V Insulated:
Features:
- Article no. 9506230
- For cutting copper:
-
-
- Single conductors up to 16 mm²
- Multiple stranded wires up to 50 mm²
- Fine stranded up to 70 mm²
-
-
- Aluminum conductors:
-
-
- Multiple stranded wires up to 70 mm²
-
-
- Easy cutting with one-hand operation due to high transmission ratio
- Special grade stainless steel: oil-hardened and tempered
- Not suitable for steel wire and hard drawn copper conductors
- Precision-ground, hardened blades
- No crushing (slight deformation of the cable only)
- Pinch guard prevents operators’ fingers being pinched
- Adjustable bolted joint
- Shears body: surgical steel, stainless, vacuum-hardened
- Handles: plastic, impact-proof
Specifications:
- Head: polished
- Handles: plastic coated insulated, VDE-tested
- Weight: 274 g
- Dimensions: 230 mm x 82 mm x 30 mm
- Cutting capacity:
-
-
-
Copper cable, multiple-stranded: 50 mm² (Ø 16 mm)
-
AWG: 1 / 0
-
-
-
- VDE tested: Yes
Also available – sold separately: 9505165 6-1/2″ (165mm) Cable Shears
