Knipex 8603400US XL 16″ (400mm) Pliers Wrench


Special Order Item (Ships within 7-10 Business Days)


UOM: EA SKU: 8603400US Categories: , , UPC: 843221008512

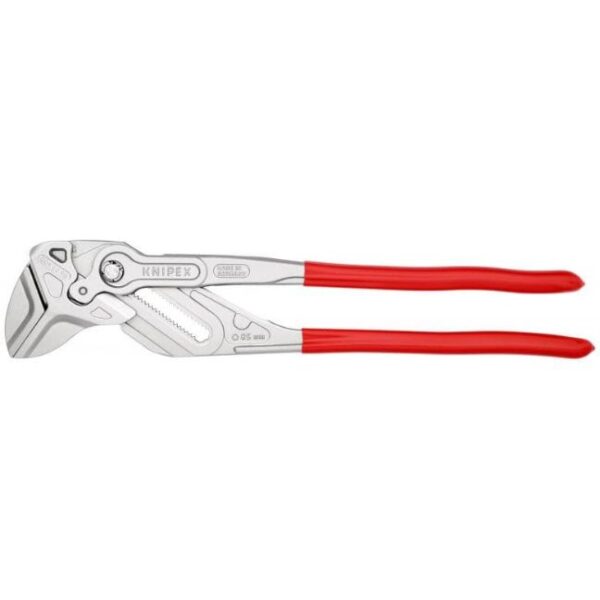

Knipex 8603400US XL 16″ (400mm) Pliers Wrench

Knipex 8603400US XL 16″ (400mm) Pliers Wrench:


  • Item no. 8603400
  • Length: 16″ (400mm)
  • Capacity (Hex nut): 3-3/8″ (85mm)
  • Number of adjustment positions: 25
  • Replaces a full set of inch and metric open end wrenches up to 3-3/8″ (85mm)
  • Multi-component handle grips
  • Excellent for gripping, holding, pressing and bending applications
  • Optimized adjustment to the workpiece with hand-friendly position of grips
  • Reliable catching of the hinge bolt: no unintentional shifting
  • Lever transmission greater than 10-1 for strong gripping power
  • Adjustable tightening tool
  • Parallel jaws allow infinitely variable gripping of all widths to the specified maximum size
  • Smooth jaws for gentle installation of quality union joints made from brass or stainless steel
  • The action of the jaws allows bolted connections to be tightened and released quickly using the ratchet principle
  • 25 adjustment positions at the touch of a button directly on the workpiece
  • Zero backlash jaw surface pressure prevents damage to edges of sensitive components
  • Chrome vanadium electric steel: forged, oil-hardened


  • Country of Origin: Germany
  • Length: 16″
  • Width: 3-1/8″
  • Height: 7/8″
  • Weight: 3.235 lbs.
  • 1000 Volt Insulated: No
  • Material Type: Chrome vanadium electric steel, forged, oil-hardened
  • Handle Type: Plastic coated
  • Gripping Surface: Smooth
  • Surface Finish: Chrome Plated
  • Joint Type: Box-joint
  • Number of Adjustment Positions: 25
  • Jaw Thickness: 25/32″
  • Tip Thickness: 31/64″
  • Max Jaw Opening – Hex: 3-3/8″
  • Max Jaw Opening – Working Capacity: 3-3/8″

Click here for more Knipex Pliers Wrenches

Additional information

Weight 1 lbs
Brand Name

Plier Type

Pliers Wrench


16", 400mm
