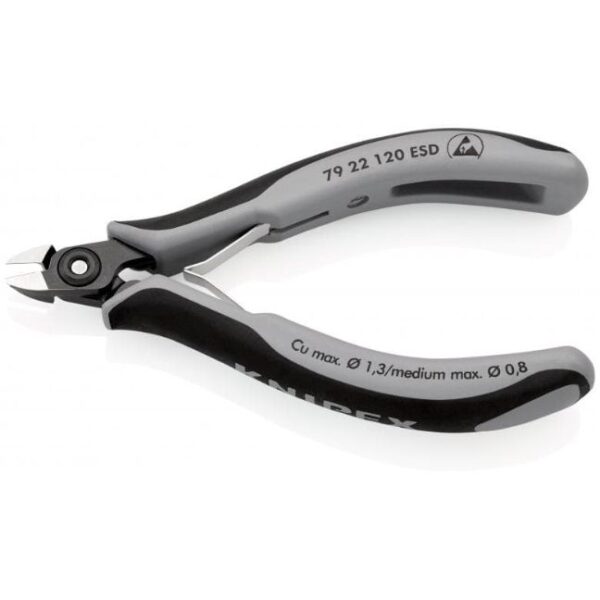

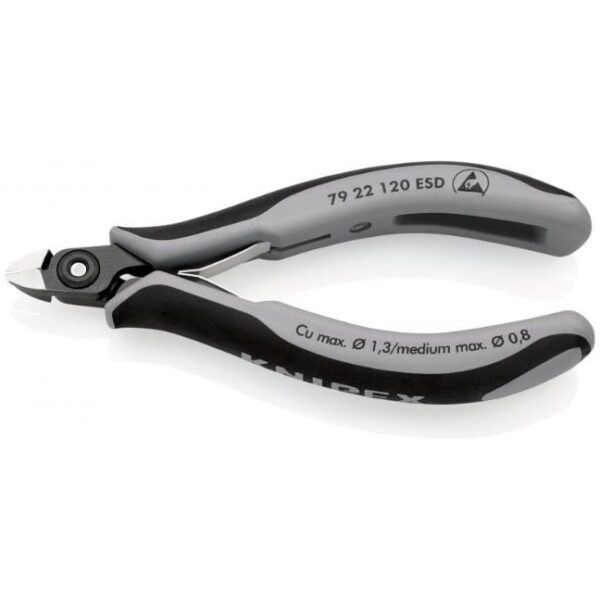

Knipex 7922120ESD 4-3/4″ (120mm) Precision Electronics Diagonal Cutters with Mini Head and No Bevel – ESD

Description

Knipex 7922120ESD 4-3/4″ (120mm) Precision Electronics Diagonal Cutters with Mini Head and No Bevel – ESD

Knipex 7922120ESD 4-3/4″ (120mm) Precision Electronics Diagonal Cutters with Mini Head and No Bevel – ESD:

Features:

• Article no. 7722120ESD
• ESD: Electrically discharging handles – dissipative
• Mini-head

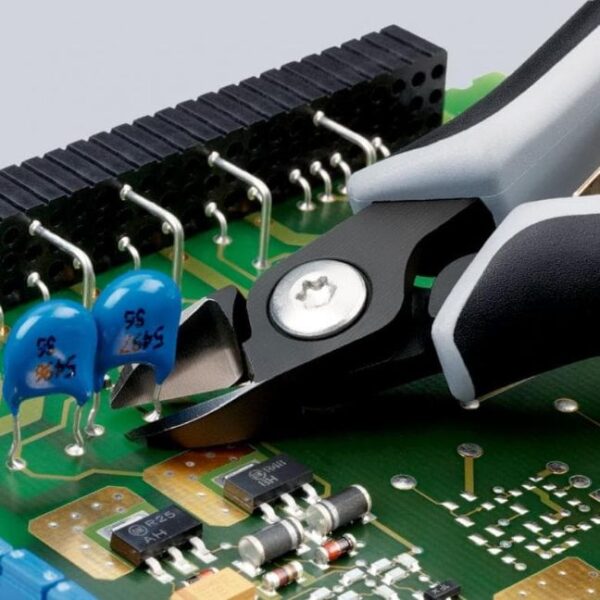

• Precision pliers for ultra fine cutting work e. g. in electronics and fine mechanics
• Very precisely ground and sharp cutting edges with without bevel:
  • • • For flush cutting
• Precision cutting edges additionally induction-hardened
• Cutting edge hardness approx. 64 HRC
• Approx. 20% lighter than conventional electronics pliers
• Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
• Smooth-running double spring for a gentle and even opening
• Ergonomically optimized multi-component handles
• Ball bearing chrome steel, forged, multi stage oil-hardened

Specifications:

• Pliers: burnished
• Head: polished
• Handles: with multi-component grips
• Weight: 57 g
• Dimensions: 120 mm x 61 mm x 19 mm
• Standard: DIN ISO 9654 DIN EN 61 340-5
• Cutting capacities:
  • • • Medium hard wire (diameter) Ø 0.8 mm
      • Soft wire (diameter) Ø 0.1 mm to 1.3 mm
• Jaw length: 6.5 mm
• Jaw thickness at the joint: 6.5 mm
• Head width: 9 mm
• ESD: Yes

Similar Knipex ESD Precision Electronics Diagonal Cutters – sold separately:

• 7902120ESD 4-3/4″ (120mm) Precision Electronics Diagonal Cutters with Mini Head and Small Bevel – ESD
• 7922120ESD 4-3/4″ (120mm) Precision Electronics Diagonal Cutters with Mini Head and No Bevel – ESD
• 7902125ESD 5″ (125mm) Precision Electronics Side Cutters with Round Head and Small Bevels – ESD
• 7922125ESD 5″ (125mm) Precision Electronics Side Cutters with Round Head and No Bevel – ESD
• 7912125ESD 5″ (125mm) Precision Electronics Side Cutters for Ultra Fine Wire – ESD
