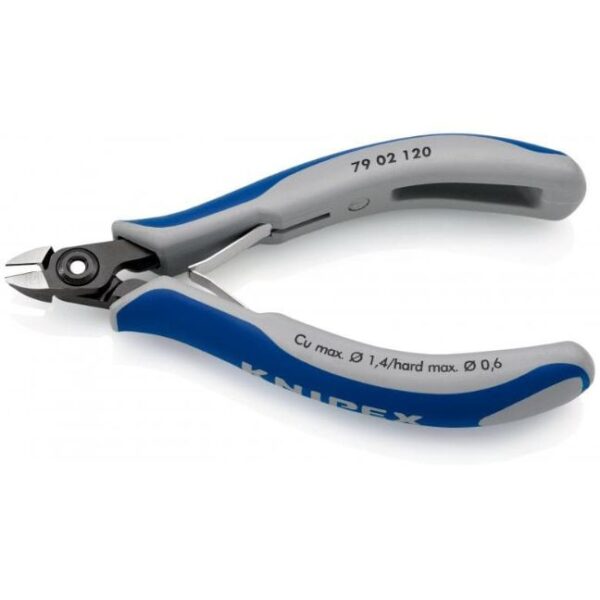

Knipex 7902120 4-3/4″ (120mm) Precision Electronics Diagonal Cutters with Mini Head and Small Bevel

Description

Knipex 7902120 4-3/4″ (120mm) Precision Electronics Diagonal Cutters with Mini Head and Small Bevel

Knipex 7902120 4-3/4″ (120mm) Precision Electronics Diagonal Cutters with Mini Head and Small Bevel:

Features:

• Article no. 7902120
• Mini-head
• Cutting edges with very small bevel
• Precision pliers for ultra fine cutting work: e. g. in electronics and fine mechanics
• Very precisely ground and sharp cutting edges with very small bevels:
  • • • For exact cutting on delicate electronic components
      • Also available without bevel for flush cutting
• Cutting edges additionally induction-hardened
• Cutting edge hardness approx. 64 HRC
• Approx. 20% lighter than conventional electronics pliers
• Bolted joint with carefully manufactured joint surfaces:
  • • • For even, low-friction movement throughout the entire opening range
• Smooth-running double spring for a gentle and even opening
• Ergonomically optimized multi-component handles
• Ball bearing chrome steel, forged, multi stage oil-hardened

Specifications:

• Pliers: burnished
• Head: polished
• Handles: with multi-component grips
• Weight: 57 g
• Dimensions: 120 mm x 60 mm x 17 mm
• Standard: DIN ISO 9654
• Cutting capacities:
  • • • Medium hard wire (diameter) Ø 1.0 mm
      • Hard wire (diameter) Ø 0.6 mm
      • Soft wire (diameter) Ø 0.2 mm to 1.4 mm
• Jaw length: 6.5 mm
• Jaw thickness at the joint: 6.5 mm
• Head width: 9.0 mm
• ESD: No
