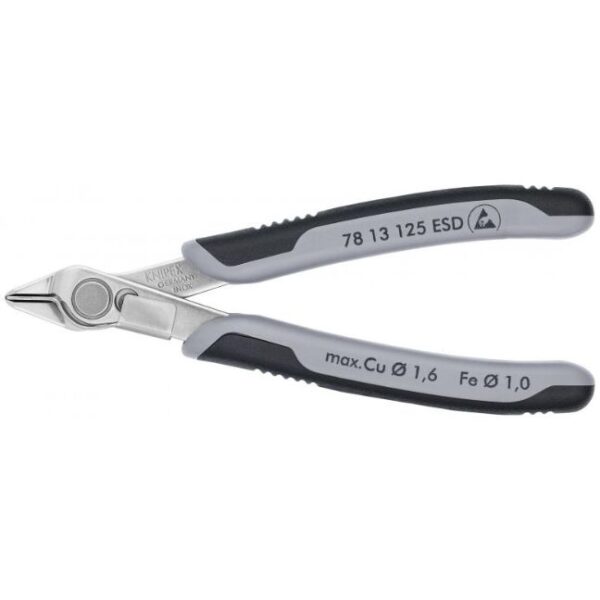

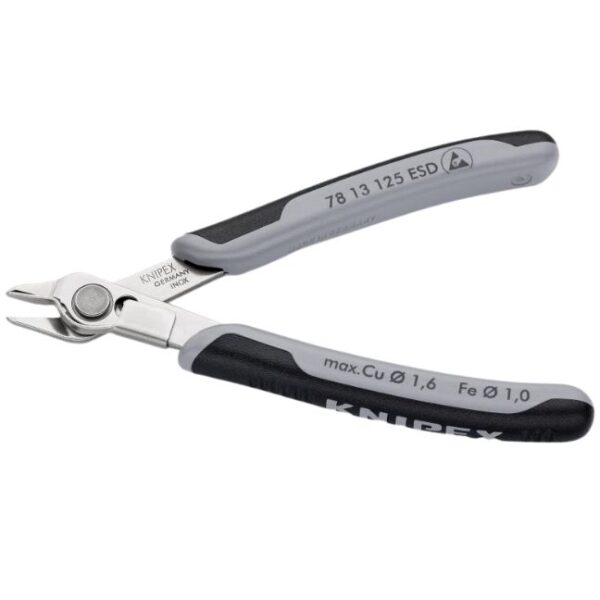

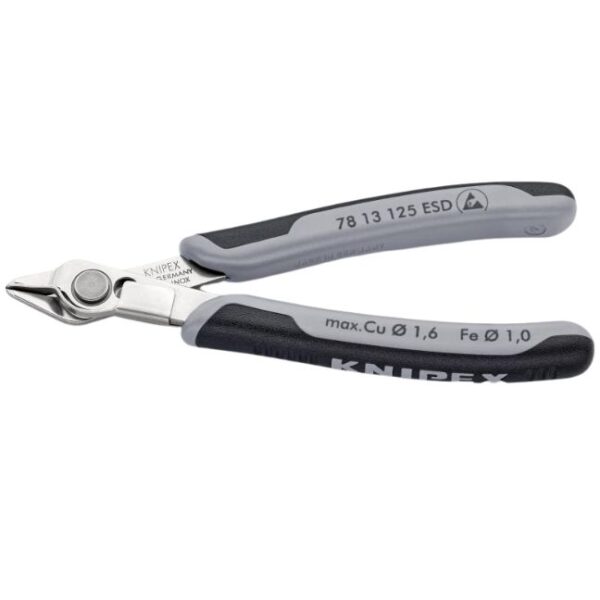

Knipex 7813125ESD 5″ (125mm) Electronics SUPER KNIPS with Lead Catcher – 54 HRC – ESD

Description

Knipex 7813125ESD 5″ (125mm) Electronics SUPER KNIPS with Lead Catcher – 54 HRC – ESD

Knipex 7813125ESD 5″ (125mm) Electronics SUPER KNIPS with Lead Catcher – 54 HRC – ESD:

Features:

• Article no. 7813125ESD
• ESD: Electrically discharging handles – dissipative
• With lead catcher: no uncontrolled loss of cut wire ends
• Cutting edge hardness approx. 54 HRC
• INOX tool steel
• Precision pliers for ultra fine cutting work: e. g. in electronics and fine mechanics
• Ground, very sharp cutting edges without bevel
• Shear cut with controlled micro cutting edge misalignment:
  • • • For the most precise cutting of even the thinnest of wires and for a long service life
• Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
• Joint with stainless steel rivet
• Extremely smooth movement for minimum operator fatigue
• ESD protection of electronics:
  • • • Through conductive multi-component grips
      • There is a slow, controlled discharge of electrostatic energy

Specifications:

• Head: polished
• Handles: with multi-component grips
• Weight: 57 g
• Dimensions: 125mm x 61mm x 12mm
• Standard: DIN ISO 9654 DIN EN 61 340-5
• Cutting capacities:
  • • • Medium hard wire (diameter) Ø 1.0 mm
      • Soft wire (diameter) Ø 0.2 mm to 1.6 mm
• Jaw length: 9.0 mm
• Jaw thickness at the joint: 7.5 mm
• Head width: 13.5 mm
• ESD: Yes

Available Knipex Electronics SUPER KNIP models – sold separately:

• 7803125ESD 5″ (125mm) Electronics SUPER KNIPS – 54HRC – ESD
• 7803140ESD 5-1/2″ (140mm) Electronics SUPER KNIPS XL – 54HRC – ESD
• 7813125ESD 5″ (125mm) Electronics SUPER KNIPS with Lead Catcher – 54HRC – ESD
• 7861125ESD 5″ (125mm) Electronics SUPER KNIPS – 62HRC – ESD
• 7861140ESD 5-1/2″ (140mm) Electronics SUPER KNIPS XL – 64HRC – ESD
• 7871125ESD 5″ (125mm) Electronics SUPER KNIPS with Lead Catcher – 62HRC – ESD
