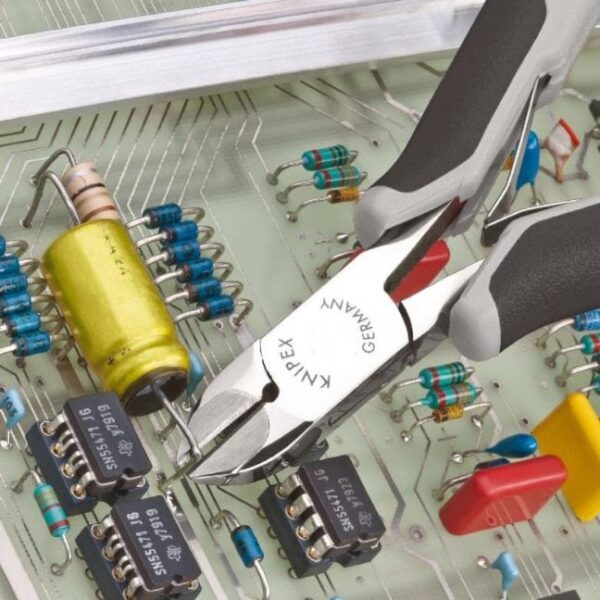

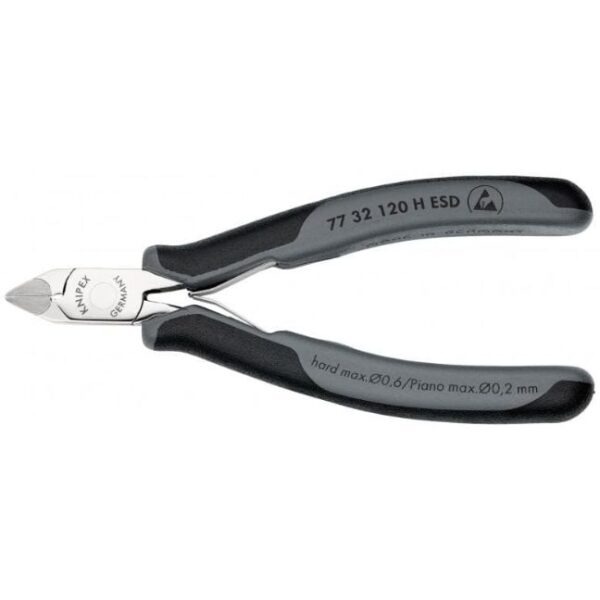

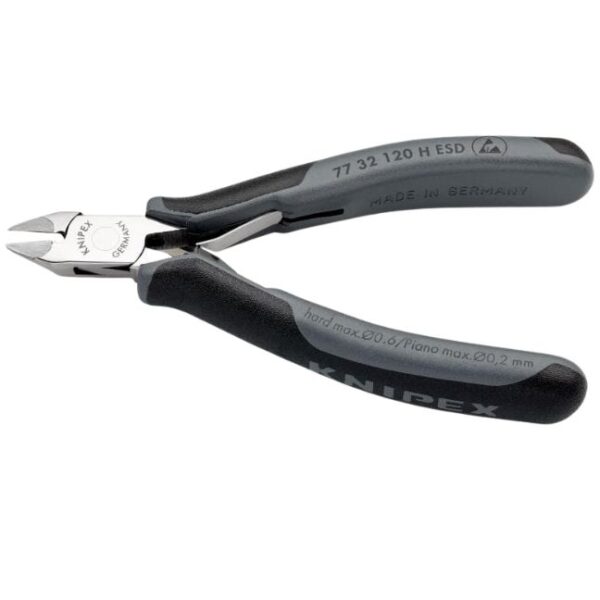

Knipex 7732120HESD 4-3/4″ (120mm) ESD Electronics Diagonal Cutters with Carbide Cutting Edges

Description

Knipex 7732120HESD 4-3/4″ (120mm) ESD Electronics Diagonal Cutters with Carbide Cutting Edges

Knipex 7732120HESD 4-3/4″ (120mm) Electronics Diagonal Cutters with Carbide Cutting Edges – ESD:

Features:

• Article no. 7732120HESD
• ESD: Electrically discharging handles – dissipative
• Carbide metal cutting edges
• Pointed head with chamfer
• With small bevel
• Cutting capacities:
  • • • Medium hard wire (diameter) Ø 1.0 mm
      • Hard wire (diameter) Ø 0.6 mm
      • Piano wire (diameter) Ø 0.2 mm
      • Soft wire (diameter) Ø 1.6 mm
• For extreme demands on cutting pliers caused by hard or tough materials such as:,
  • • • Piano, nickel, tungsten and diode wire
      • Used more frequently in the electronics and aerospace industries
• Precision carbide metal cutting edges soldered into forged blanks
• Sturdy, zero-backlash box joint
• Hardness of the carbide cutting edges 80 to 83 HRC
• Constantly reliable cutting results due to the avoidance of cutter deformations
• High cost saving due to longer service life of the pliers

Specifications:

• Head: mirror polished
• Handles: with multi-component grips
• Weight: 80 g
• Dimensions: 120 mm x 50 mm x 19 mm
• Standard: DIN ISO 9654 DIN EN 61 340-5
• Cutting capacities:
  • • • Medium hard wire (diameter) Ø 1.0 mm
      • Hard wire (diameter) Ø 0.6 mm
      • Piano wire (diameter) Ø 0.2 mm
      • Soft wire (diameter) Ø 1.6 mm
• Jaw length: 14 mm
• Jaw thickness at the joint: 7.0 mm
• Head width: 11 mm
• ESD: Yes

Also available without ESD: 7732120H 4-3/4″ (120mm) Electronics Diagonal Cutters with Carbide Cutting Edges
