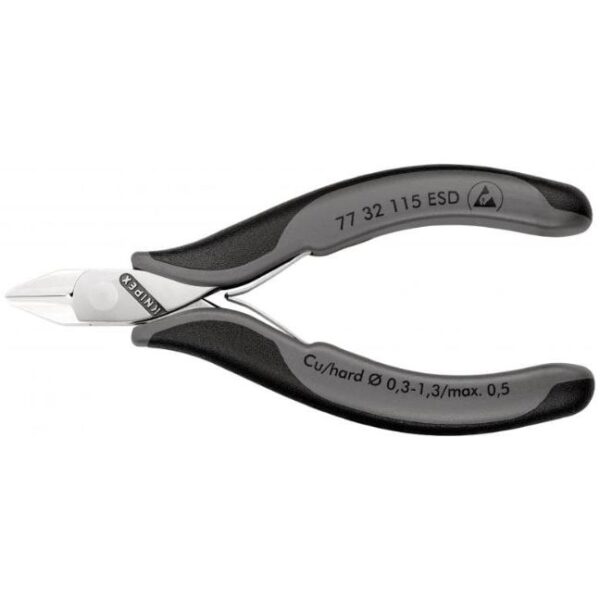

Knipex 7732115ESD 4-1/2″ (115mm) ESD Electronics Diagonal Cutters with Pointed head and Small Bevel

Description

Knipex 7732115ESD 4-1/2″ (115mm) ESD Electronics Diagonal Cutters with Pointed head and Small Bevel

Knipex 7732115ESD 4-1/2″ (115mm) ESD Electronics Diagonal Cutters with Pointed head and Small Bevel:

Features:

• Article no. 7732115
• ESD: Electrically discharging handles – dissipative
• Pointed head with small bevel
• Cutting capacities:
  • • • Medium hard wire (diameter) Ø 1.0 mm
      • Hard wire (diameter) Ø 0.5 mm
      • Soft wire (diameter) Ø 0.3 mm to 1.3 mm
• Cutting edge hardness approximately 60 HRC
• For fine cutting work such as electronics and fine mechanics
• Sturdy, zero-backlash box joint
• Low-friction double spring for gentle and even opening
• The mirror polish together with a fine film of oil offer effective rust protection:
  • • • No circuit faults caused by peeling chrome from plated tools
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
• Handles with two-color multi-component grips black/grey
• Ball bearing chrome steel oil hardened

Specifications:

• Head: mirror polished
• Handles: with multi-component grips
• Weight: 70 g
• Dimensions: 115mm x 67mm x 17mm
• Standard: DIN ISO 9654 DIN EN 61 340-5
• Cutting capacities:
  • • • Medium hard wire (diameter) Ø 1.0 mm
      • Hard wire (diameter) Ø 0.5 mm
      • Soft wire (diameter) Ø 0.3 mm to 1.3 mm
• Jaw length: 14 mm
• Jaw thickness at the joint: 7.0 mm
• Head width: 11 mm
• ESD: Yes

Available model variations – sold separately:

• 7732115ESD 4-1/2″ (115mm) ESD Electronics Diagonal Cutters with Pointed head and Small Bevel
• 7742115ESD 4-1/2″ (115mm) ESD Electronics Diagonal Cutters – Pointed Head without Bevel
• 7772115ESD 4-1/2″ (115mm) ESD Electronics Diagonal Cutters with Pointed Mini-Head and Small Bevel
