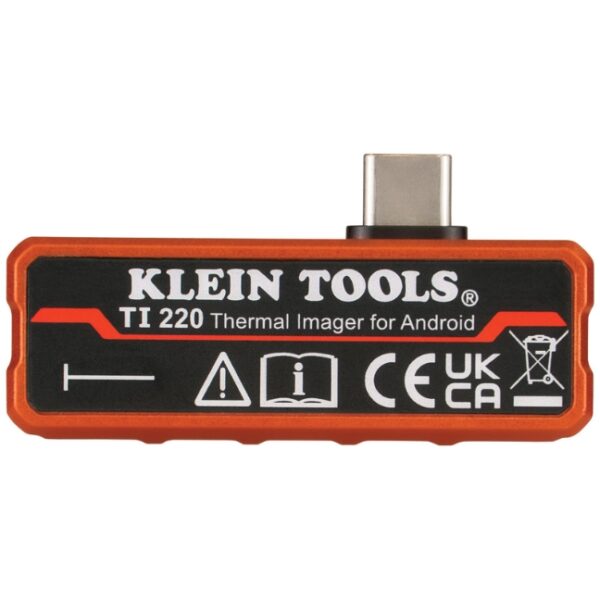

Klein TI220 Android Thermal Imager

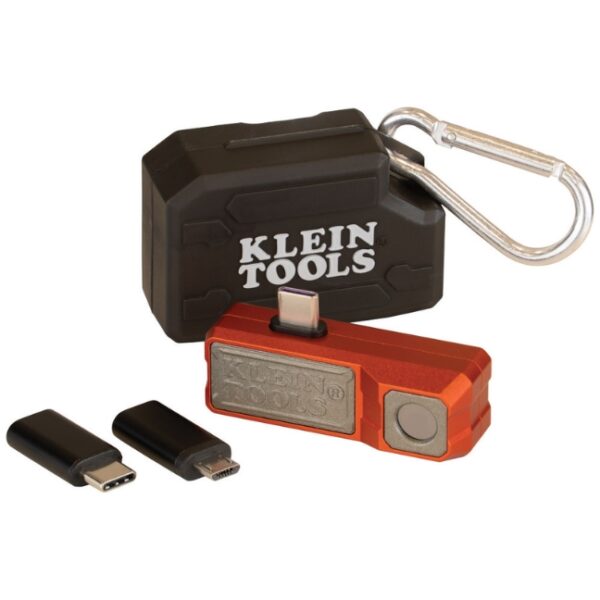

The Klein TI220 Android Thermal Imager includes:

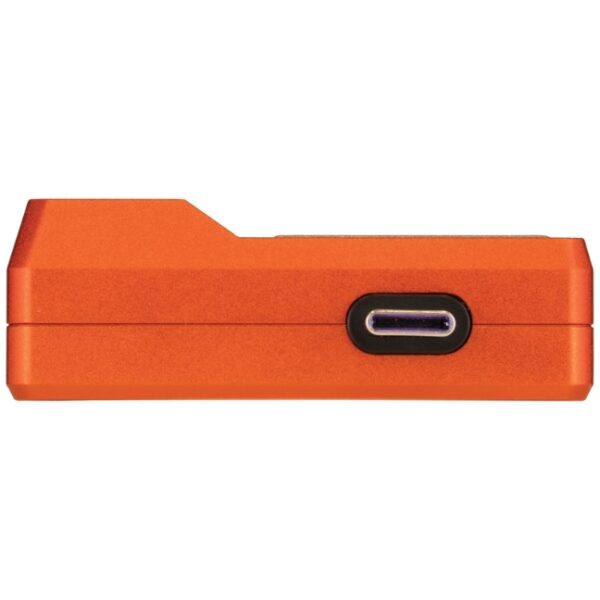

  • USB-C Connector
  • Micro-USB Connector/Adapter

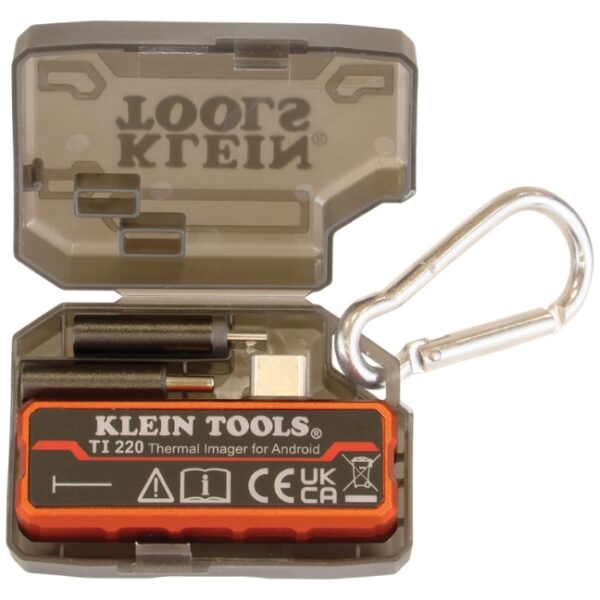

  • Hard Storage Case with Carabiner
  • Instructions


  • Product no. TI220
  • Thermal Imager for Android® Devices:
        • 10,800 pixels deliver excellent resolution for troubleshooting hot and cold spots
  • Easily capture, store and share thermal images and video, including time-lapse video
  • Touch screen temperature:
        • High/low temperatures readout
        • Differential temperature readout
  • View temperature ranges from -4º to 752º Fahrenheit (-20º to 400º Celsius) in three color palettes:
        • Ironbow
        • Rainbow
        • Grayscale
  • High/low temperature alarms to monitor systems
  • Compatible with most Android® devices versions 6.0 or higher with USB-C or Micro-USB connectors
  • Klein Tools Thermal Imager Android® App is available for free in Google Play™ store
  • Durable 6.6-Foot (2 m) drop test protection
  • Typical applications:
        • Detecting hot spots in panels, on wiring, or on parts of equipment
        • Helping find sources of energy loss within a home/building
        • Help detect moisture behind walls and flooring; clogs in pipes; and much more


  • Type: Thermal Imager
  • Application: View Hot and Cold Spots For Instant Troubleshooting
  • Special Features:
        • High and Low Temperature Points
        • Touch-Point Temperature
        • Options for Temperature Alarms
        • Time-Lapse Video
        • 3 Color Palettes
  • Display: External Device
  • Display Resolution: 10,800 Pixels
  • Sensor Type: VOx Microbolometer
  • Sensor Resolution: 10,800 Pixels
  • Thermal Sensitivity: <60 mK at 25°C
  • Spectral Range: 8 to 14 μm
  • Temperature Range: -4° to 752°F (-20° to 400°C)
  • Accuracy: +/-2°C or 2% (whichever is greater). Not calibrated below 10°C (14°F)
  • Field of View: Horizontal: 50°, Vertical: 50°
  • Laser Sighting: No
  • Emissivity: 0.01 to 0.99, Adjustable
  • Color Palettes: Ironbow, Rainbow, and Grayscale
  • Photo Capture: Yes
  • Maximum Frames per Second: <9 Hz
  • Memory: External Device
  • Batteries: Powered from External Device
  • Length: 2.13” (5.4 cm)
  • Width: 0.73” (1.9 cm)
  • Height: 1.07” (2.7 cm)
  • Material: Aluminum Housing, Electronic Components
  • Standards: CE and UKCA
  • Weight: 1 oz (31 g)

Also available: TI222 iOS Thermal Imager
