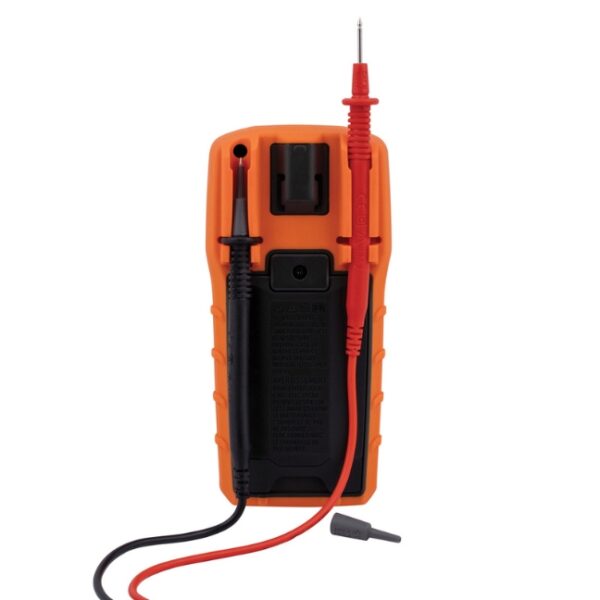

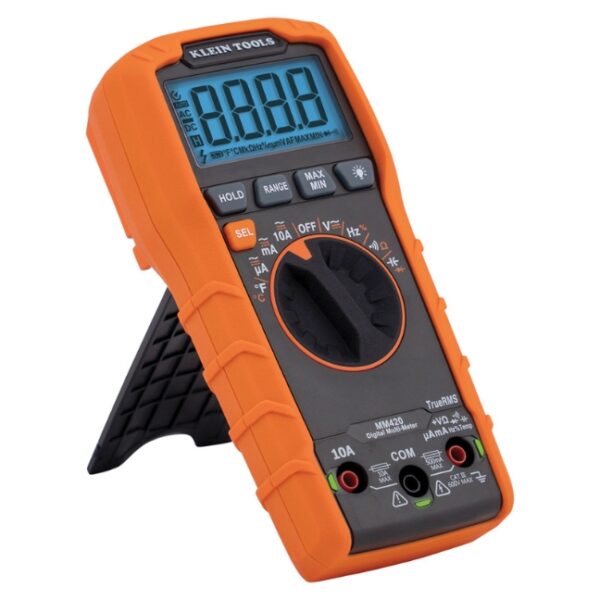

Klein MM420 600V Temp TRMS Auto-Ranging Digital Multimeter



UOM: EA SKU: MM420 Categories: , , UPC: 092644693748


Klein MM420 600V Temp TRMS Auto-Ranging Digital Multimeter

The Klein MM420 600V Temp TRMS Auto-Ranging Digital Multimeter comes with:

  • Test leads
  • Thermocouple with Adaptor
  • Batteries
  • User Manual


  • Catalog no. MM420
  • Multimeter with:
        • Automatic ranging true root mean square (TRMS) technology for increased accuracy
  • Measures up to:
        • 600V AC/DC voltage
        • 10A AC/DC current
        • 50 MOhms resistance
        •  Continuity, temperature, capacitance, frequency, duty-cycle, and test diodes
  • Lead Alert protection with LED illumination for lead placement and an easy-to-view backlit display
  • Low battery indicator
  • Easily accessible battery compartment
  • Built to withstand:
        • 6.6-foot (2m) drop
        • Daily wear and tear on the job site
  • CAT III 600V safety rating
  • For use in basic and controlled electromagnetic environments such as:
        • Residential, business and light-industrial locations
  • Includes: test leads, thermocouple with adapter, batteries and user manual


  • Type: Digital Multimeter
  • Application: Testing and Measuring Voltage

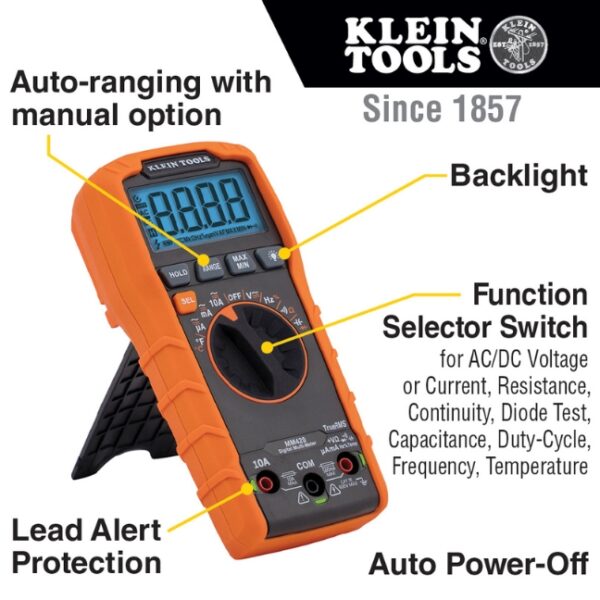

  • Special Features:
        • Lead-Alert; Auto-Range; Min/Max Measurements; Backlight; Auto Power-Off; Data-Hold
  • Material: ABS, Electrical Components
  • Batteries: 2 x AAA
  • Drop Protection: 6.6ft (2 m)
  • Display: 4000 Count LCD
  • Color: Orange/Black
  • Functions:
        • Measures up to 600V AC/DC voltage, 10A AC/DC current and 50 MΩ resistance
        • Measures temperature, capacitance, frequency, duty-cycle
        • Tests diodes and continuity
  • Voltage: 600V AC / 600 V DC
  • Frequency: 1 Hz – 50 KHz
  • Current: 10A AC / 10A DC
  • Capacitance: 400µF
  • Ohms (Resistance): 50MΩ
  • Standard: CAT III 600V; CE and UKCA Certified
  • Temperature Range: -40° to 1832°F (-40° to 1000°C)
  • Included: Test Leads, Batteries, Thermocouple and User Manual
  • Length: 6.00” (15.2 cm)
  • Height: 1.78” (4.5 cm)
  • Width: 3.16” (8 cm)
  • Weight: 8.2 oz (231 g)

Click here for more Klein Electronic Instruments
