Klein CL810 600A AC/DC Auto-Ranging Digital Pro Clamp Meter with Worklight

Description

Klein CL810 600A AC/DC Auto-Ranging Digital Pro Clamp Meter with Worklight

The Klein CL810 600A AC/DC Auto-Ranging Digital Pro Clamp Meter with Worklight includes:

• Clamp Meter
• Right-Angle Input Test Leads
• 3 x AAA Batteries
• Thermocouple
• Instruction Manual
• Storage Pouch

Features:

• Catalog no. CL810
• Clamp meter with True RMS:
  • • • Provides accurate and reliable measurements across various applications
• Measures:
  • • • AC/DC voltage, AC/DC current, resistance, DC micro amps, temperature,
      • Diode test, continuity, capacitance, frequency/duty cycle, and inrush
• Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments
• Illuminated dial ensures clear visibility and easy reading, even in low-light environments
• Low impedance (LoZ) mode:
  • • • Identifies and eliminates ghost voltages
      • Prevents false readings
      • Ensures more accurate measurements
• Integrated worklight illuminates the work area for improved visibility in dark or confined spaces

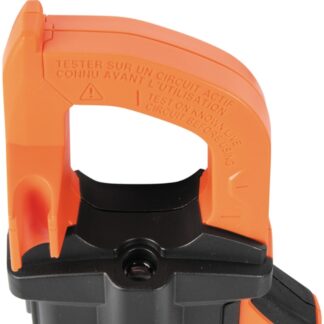

• Non-contact voltage detection is integrated into the clamp jaw:
  • • • With audible and visual indicators that intensify as the clamp moves closer to the voltage source
• Rated IP40 for ingress protection
• Withstands drops from 6.6 feet (2 m)
• Ergonomic design and overmold:
  • • • Provide a comfortable grip
      • With easy dial adjustment using the thumb
• Clamp body includes:
  • • • Side-mounted test lead holder
      • Back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation

Specifications:

• Type: Pro Clamp Meter
• Application: Variety of Electrical Diagnostic and Troubleshooting Applications
• Special Features:
  • • • Transflective Reverse-Contract Display;
      • Lighted Dial; Built-in Worklight; Built-in Lead Holder
• Material: ABS/Electronics
• Batteries: 3 x AAA
• Auto-Power Off: Yes
• Jaw Size: 1.4” (3.6 cm)
• Drop Protection: 6.6ft (2 m)
• Display: Transflective Reverse-Contrast with 6000 Count LCD
• Display Size: 1.5” x 1.0” (3.83 x 2.6 cm)
• Functions:
  • • • AC/DC/ Voltage, AC/DC Current, Resistance, DC Micro Amps, Audible Continuity,
      • Temperature, Low Impedance, Non-Contact Voltage Testing, Diode Test, Capacitance,
      • Frequency/Duty Cycle, Inrush, Min/Max Value, Rel/Zero, Data Hold Capability
• Auto Ranging: Yes
• TRMS: Yes
• Voltage: 1000V AC; 1000V DC
• Frequency: 1Hz – 500 KHz
• Current: 600A
• Capacitance: 6000µF
• Ohms (Resistance): 60MΩ
• DC Polarity Indicator: Yes
• DC Micro-Amp: Yes
• Temperature Range: 40° to 1832° F (-40° to 1000° C)
• Ingress Protection: IP40
• Standard: CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA
• Overall Length: 9.06” (2.3 cm)
• Overall Height: 1.65” (4.2 cm)
• Overall Width: 3.47” (8.8 cm)
• Weight: 13 oz (369 g) Including Batteries
