Description

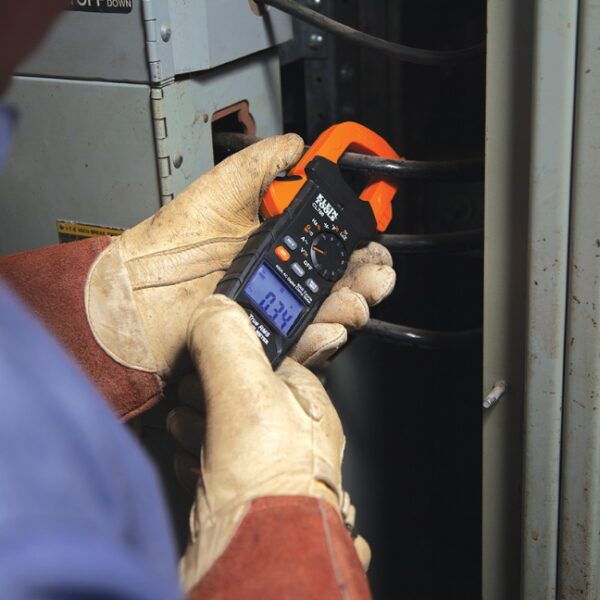

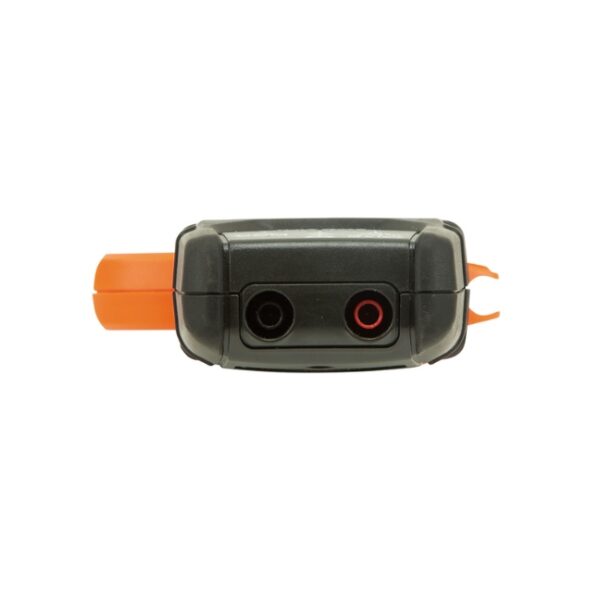

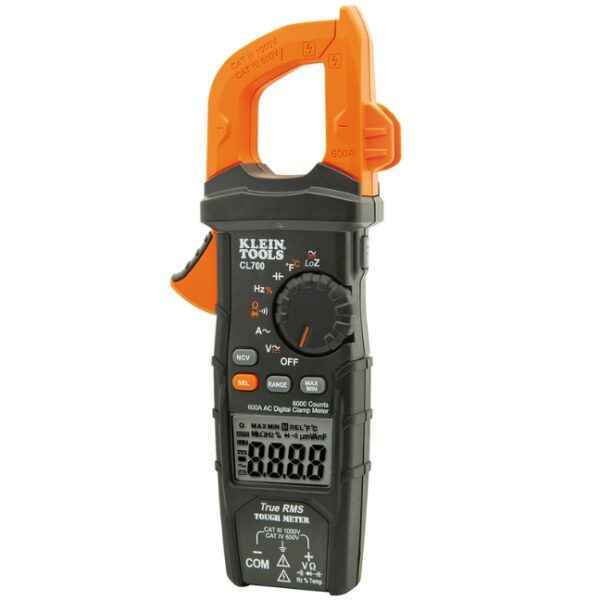

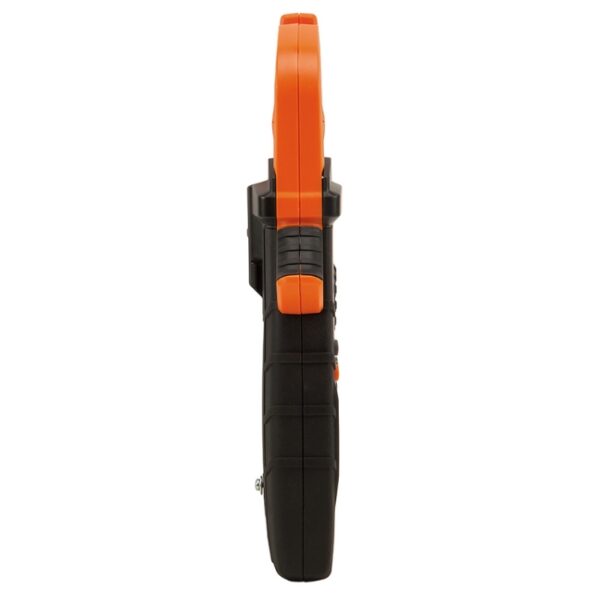

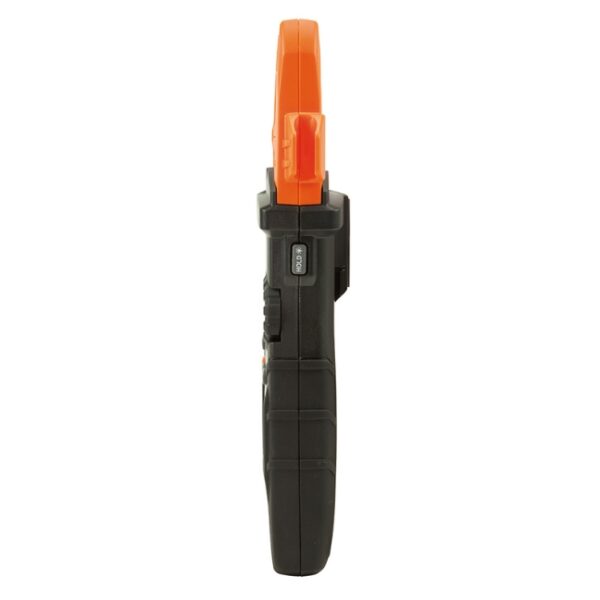

Klein CL700 AC Auto Ranging TRMS Digital Clamp Meter with Low Impedance Mode
The Klein CL700 AC Auto Ranging TRMS Digital Clamp Meter with Low Impedance Mode includes:
- Test Leads
- Thermocouple with Adapter
- 2 x AAA Batteries
- Carrying Case
Features:
- Product no. CL700
- Clamp Meter with:
-
-
- Automatically ranging true mean squared (TRMS) technology for increased accuracy
-
-
- Electronic Tester’s clamp measures: AC current
- Tester’s thermocouple probe measures: Temperature
- Test leads measure:
-
-
- AC/DC voltage
- Resistance
- Continuity
- Frequency
- Capacitance
- Tests diodes
-
-
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
- Built to withstand a 6.6-Foot (2 m) drop
- Low battery indicator and easily accessible battery compartment
- Meets requirements for use in basic and controlled electromagnetic environments including
-
-
- Residential, office and light-industrial locations
-
-
- Operating Temperature: 32-degrees F to 104-degrees F (0-degrees C to 40-degrees C)
- Operating altitude to 6562-Foot (2000 m)
Specifications:
- Application: Measures AC Current
- Special Features: Low Battery Indicator
- Functions:
-
-
- Clamp measures AC current and thermocouple probe measures temperature
- Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
-
-
- Batteries: 2 x AAA
- Jaw Size: 1.38” (3.5 cm)
- Drop Protection: 6.6ft (2 m)
- Display: 6000 Count LCD
- Voltage: 1000V AC; 1000V DC
- Frequency: 1Hz – 500 KHz
- Current: 600A
- Capacitance: 6000µF
- Ohms (Resistance): 60MO
- Temperature Range: -14° – 1000°F (-26° – 538°C)
- Ingress Protection: IP40
- Standard: CAT IV 600V; CE Certified
- Length: 9.09” (23.1 cm)
- Height: 1.55” (3.9 cm)
- Width: 3.81” (9.7 cm)
- Weight: 11.8 oz (335 g)
