Description

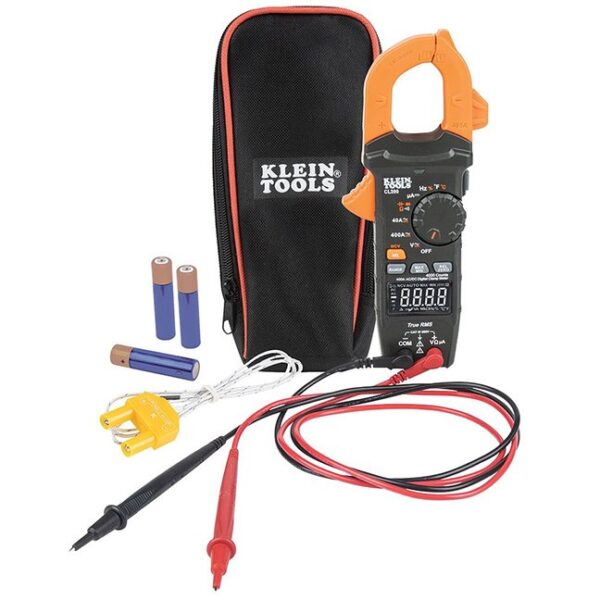

Klein CL390 Digital Clamp Meter – Auto-Ranging / 400 Amp
The Klein CL390 Digital Clamp Meter – Auto-Ranging / 400 Amp includes:
- Test leads
- Thermocouple
- Batteries: 3 x AAA
- Instructions
- Carrying pouch
Also available: CL800 Digital Clamp Meter
Features:
- Product no. CL390
- Test lead holder on side of clamp
- Non-contact voltage tester integrated into the clamp jaw
- High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Test leads measure:
-
-
- AC/DC current
- NCVT via clamp and AC/DC voltage
- Resistance
- Frequency
- DC microamps
- Capacitance
- Duty cycle
- Diode test
- Continuity via test-leads
-
-
- Thermocouple probe measures:
-
-
- Temperature
-
-
- Measures temperature with a K-Type thermocouple probe
- Max/Min, Rel/Zero and Data Hold capability
- Auto-power off after 10 minutes to conserve battery life
- CAT III 600V, Class 2, Double insulation safety rating
- Built to withstand a 6.6 ft (2 m) drop
- Low battery indicator
- Easily accessible battery compartment
- Operating temp: 32º F to 104º F (0º C to 40º C)
- Operating altitude to 6562 ft (2000 m)
- Meets requirements for use in basic and controlled electromagnetic environments like:
-
-
- Residential
- Office
- Light-industrial locations
-
-
Specifications:
- Type: AC/DC Current TRMS Clamp
- Application: Measures Current
- Special Features:
-
-
- Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy
- AC/DC Current Measurement
- High Visibility Reverse Contrast LCD
- NCVT
-
-
- Material: ABS / Electronics
- Batteries: 3 x AAA
- Auto-Power Off: Yes
- Jaw Size: 1.6” (4.1 cm)
- Drop Protection: 6.6ft (2 m)
- Display: 4000 Count Reverse Contrast LCD
- Voltage: 600V AC/DC
- Frequency: 10 Hz to 60 kHz for 8 V to 220 V AC RMS
- Current: 400A AC/DC
- Capacitance: 4000µF
- Ohms (Resistance): 40 MΩ
- AC Voltage: 600 V
- DC-Voltage: 600 V
- DC Polarity Indicator: Yes
- DC Micro-Amp: 200 µA
- Temperature Range: -40° to 1832°F (-40° to 1000°C)
- Standards: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
- Length: 8.45” (21.5 cm)
- Height: 1.5” (3.8 cm)
- Width: 3.5” (8.9 cm)
- Weight: 11 oz (314 g)
