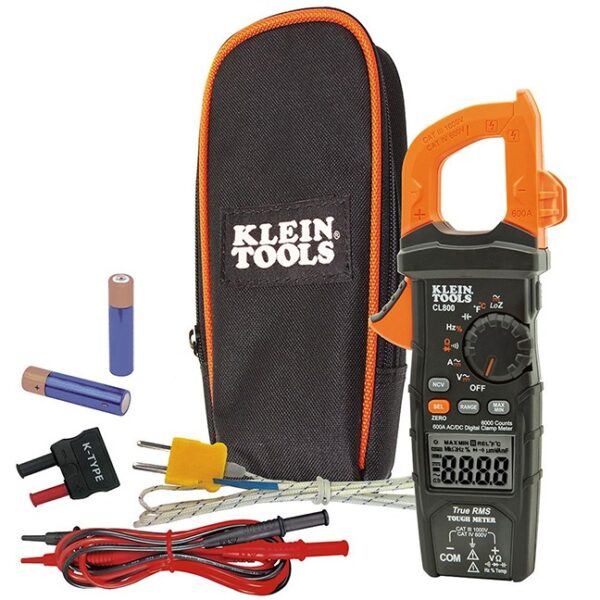

Klein CL800 Digital Clamp Meter

Klein CL800 Digital Clamp Meter

$200.21

In stock

SKU: CL800 Categories: , , UPC: 092758690167

Description

Klein CL800 Digital Clamp Meter

The Klein CL800 Digital Clamp Meter includes:

  • Test leads: 41” (1041.4 mm)
  • Thermocouple with adapter
  • Batteries: 2 x AAA
  • Carrying pouch

Features:

  • Product no. CL800
  • With automatically ranging true mean squared (TRMS) technology for increased accuracy
  • Low Impedance (LoZ)
  • Auto Off
  • Test leads measure:
        • AC/DC voltage
        • Resistance
        • Continuity
        • Frequency
        • Capacitance
        • Tests diodes
  • Thermocouple probe measures:
        • Temperature
  • Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
  • Built to withstand a 6.6 ft (2 m) drop
  • Low battery indicator
  • Easily accessible battery compartment
  • Operating temp: 32º F to 104º F (0º C to 40º C)
  • Operating altitude to 6562 ft (2000 m)
  • Meets requirements for use in basic and controlled electromagnetic environments like:
        • Residential
        • Office
        • Light-industrial locations

Specifications:

  • Application: Measures Current
  • Special Features:
        • Low Battery Indicator
        • Auto Shut Off
  • Batteries: 2 x AAA
  • Jaw Size: 1.38” (3.5 cm)
  • Drop Protection: 6.6ft (2 m)
  • Display: 6000 Count LCD
  • Voltage: 1000V AC; 1000V DC
  • Frequency: 1Hz – 500 KHz
  • Current: 600A AC; 600A DC
  • Capacitance: 6000µF
  • Ohms (Resistance): 60MO
  • Temperature Range: -14° to 1000°F (-26° to 538°C)
  • Ingress Protection: IP40
  • Standards: CAT IV 600V; CE Certified
  • Length: 9.09” (23.1 cm)
  • Height: 1.55” (3.9 cm)
  • Width: 3.81” (9.7 cm)
  • Weight: 12.5 oz (354 g)
