Description

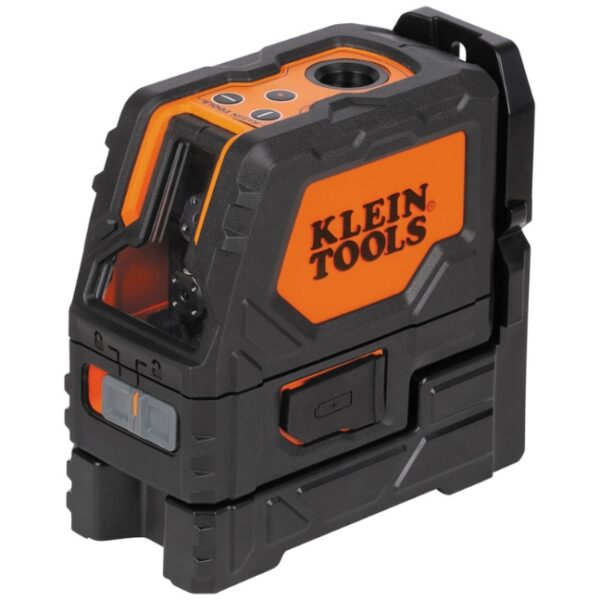

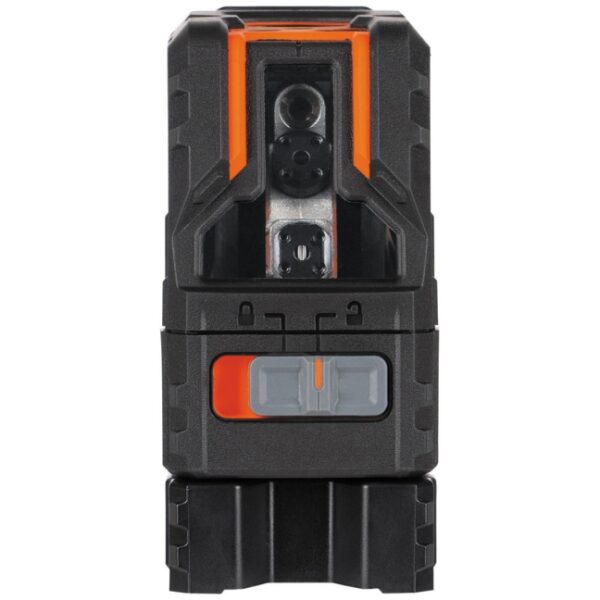

Klein 93LCLGR Green Rechargeable Laser Level
The Klein 93LCLGR Green Rechargeable Laser Level includes:
- Laser Level
- Instruction Manual
- Mounting Clamp

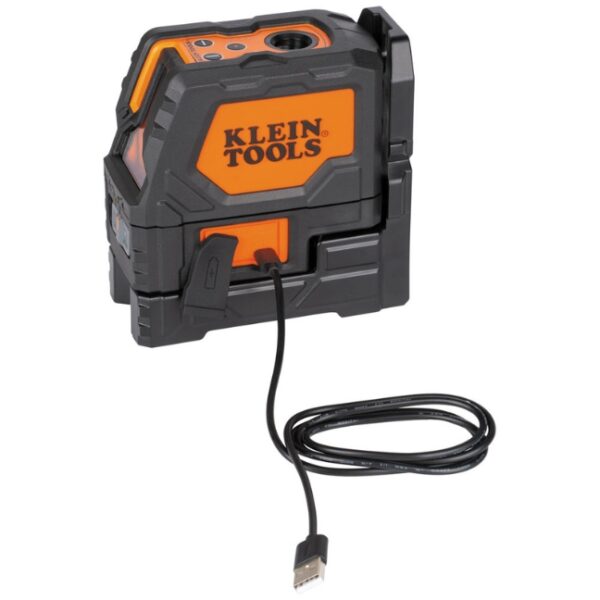

- Charging Cable
- Hard Carrying Case
Features:
- Catalog no. 93LCLGR
- Rechargeable self-leveling laser level
- Easy-to-read with:
-
-
- High-visibility green horizontal and vertical laser lines
- Red plumb spot lasers
- 165-Foot (50.3 m) working range
-
-
- Projects high precision horizontal and vertical lines and plumb up/down spots:
-
-
- Independently or together
- Addresses various alignment tasks with accuracy up to 3/32″ at 33 feet (10.1 m)
-
-
- High capacity rechargeable Li-ion battery:
-
-
- Powers all lasers with more than 15 hours of run time
-
-

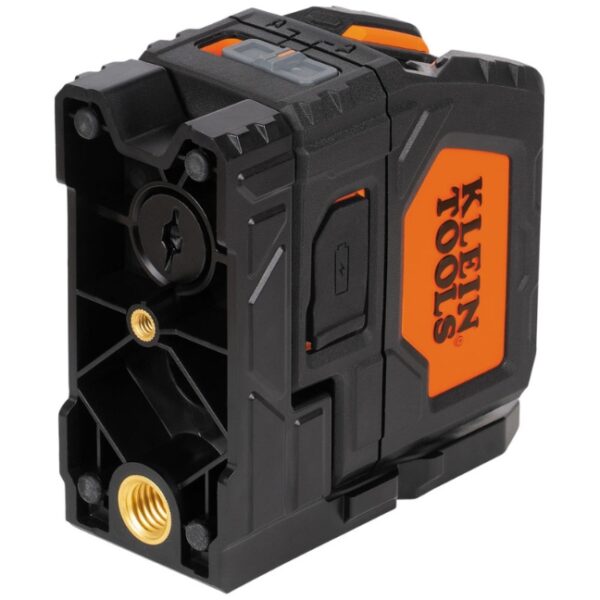

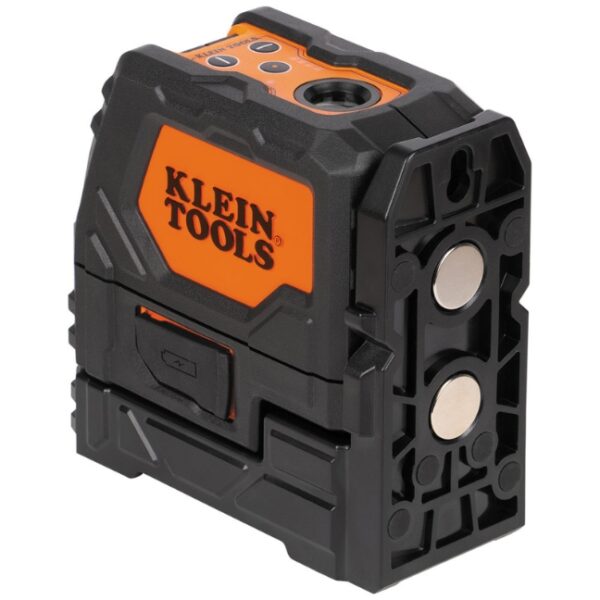

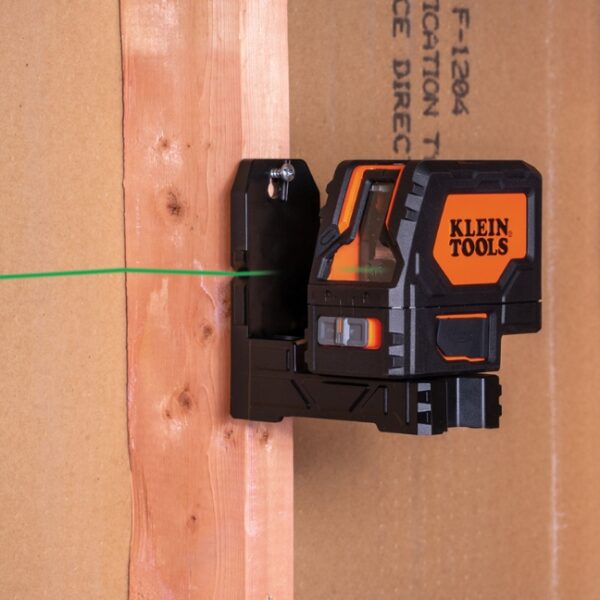

- Integrated magnetic 360º mounting bracket with:
-
-

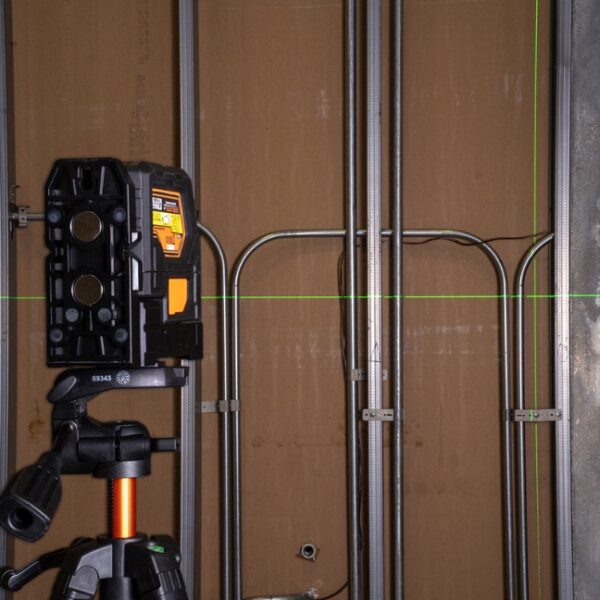

- 1/4″ and 5/8″ tripod mounting threads facilitates attachment to ferromagnetic objects
-
-

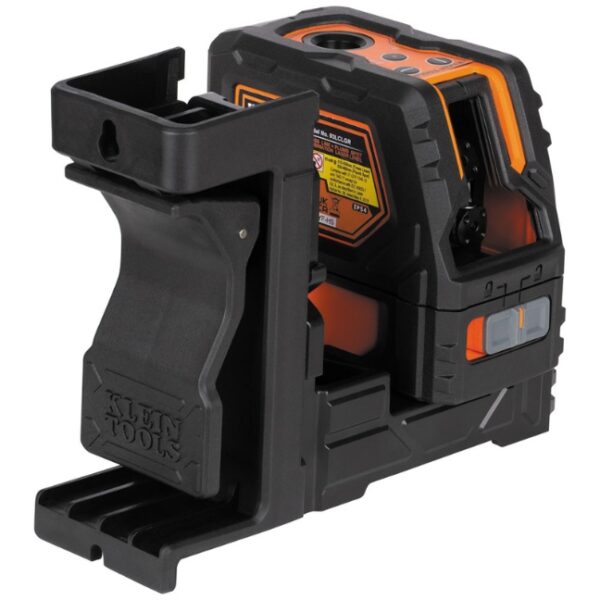

- Additional mounting clamp attachment for use on ceiling grid applications
- Rugged body provides IP54 water and dust resistance for job site durability
- Classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power <=1mW @ 510-530 nm)
Specifications:
- Type: Self-Leveling Laser Level
- Application: Self-Leveling Laser Alignment Instrument that Delivers Horizontal and/or Vertical Cross Lines, and/or Plumb Spots
- Special Features:
-
-
- Integrated Magnetic 360° Mounting Bracket with 1/4” and 5/8” Tripod Mounting Threads
- Mounting Clamp Attachment
- Excessive Tilt Indicator
-
-
- Material: ABS Housing and Electronic Components
- Batteries: Lithium-Ion
- Laser Wavelength: 515-530 nm (Cross-Lines), 630-680 nm (Plum Spots)
- Laser Safety: ≤1mW Each Beam, Class 2 Laser Product
- Number of Beams: Four; Horizontal, Vertical, Plumb Up, Plumb Down
- Laser Color: Cross Line: Green; Plumb: Red
- Plumb Laser: Yes
- Indoor Range: 165ft (50.3 m)
- Maximum Distance: 165ft (50.3 m)
- Accuracy:
-
-
- ±3/32” per 33′ (±2 mm per 10 m) Vertical & Horizontal Beam.
- ±1/8” per 33′ (±3 mm per 10 m) Plumb Up Spot
- ±5/32” per 33′ (±4 mm per 10 m) Plumb Down Spot
-
-
- Pulse Mode: No
- Receiver: No
- Magnet Type: Permanent Rare Earth
- Drop Protection: 3.3ft (1 m)
- Ingress Protection: IP54: Water and Dust Resistant
- Transit Locking Mechanism: Yes
- Low Battery Alarm: Yes
- Low Battery Indicator: Yes
- Out-of-Level Indicator: No
- Standard: EN61326-1, EN60825-1, 21 CFR 1040.10 and 1040.11
- Mounting Type: Magnetic, Tripod, Hang-Hole
- Bag or Case: Hard Carrying Case
- Included: Laser Level; Hard Carrying Case; Instruction Manual; Mounting Clamp; Charging Cable
- Overall Dimensions:
-
-
- Length: 5.2” (13.2 cm)
- Height: 5.3” (13.5 cm)
- Width: 2.6” (6.6 cm)
-
-
- Weight: 29.6 oz (839 g)
- Battery Life: More Than 12 Hr
