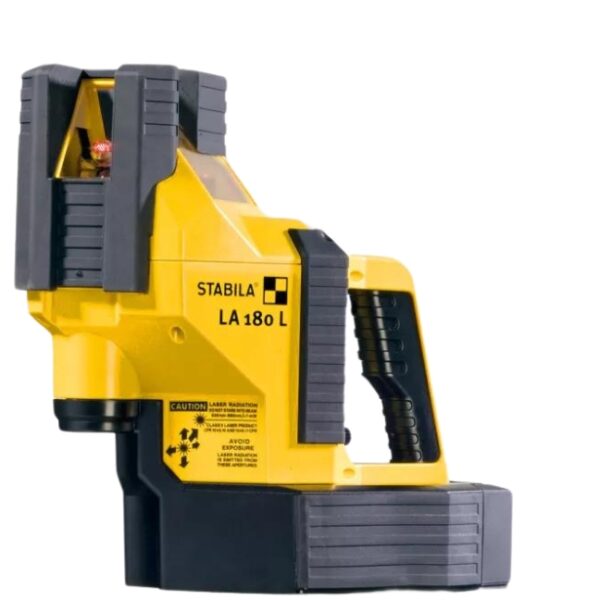

Stabila 02180 LA180L Layout Station with Auto Alignment

The Stabila 02180 LA180L Multi-Line Laser Layout Station with Auto Alignment includes:

  • LA180L laser
  • 2 – Target plates
  • Transceceiver with bracket
  • 4 – D alkaline batteries
  • 1 pair – Laser goggles
  • Manual
  • Storage case

Also available in a model with Manual Alignment:


  • Product no. 02180
  • Model no. LA180L
  • Self-Leveling
  • Plumb Points
  • Plumb and Level Lines
  • Auto-aligning 90º Layout Lines
  • Industry first laser “transceiver” transmits it’s location to the to the laser via radio frequency, signaling the laser to automatically pivot on “Point A” to find “Point B”. As soon as this connection is established, the laser locks into position and the transceiver automatically switches to receive mode, allowing you to pick it up and move it around the work site as a standard laser receiver
  • Layout lines are easy to establish and can be transferred by just one person
  • Full plane vertical beams cover floors, ceilings and walls
  • Generates bright, crisp lines visible to 65 ft. (to 328 ft. with the included receiver)
  • Coarse and fine adjustments allow precision alignment of 90º angles
  • Slide out battery drawer for battery changes without disturbing the laser reference position
  • Servo motor controls self-leveling
Stabila LA180L Laser Layout Station Specifications
Product no. 02180
Type LA180L
Self-leveling Range ±5º
Working Range Visual 65 ft. (328 ft. with receiver)
Accuracy Tolerance Level ± 3/32″ @ 100 ft.
Accuracy Tolerance Up/Down Beams ± 3/32″ @ 100 ft.
Tripod Connection 5/8″-11
Battery Life 20 hours
Batteries Included 4 x D alkaline
Laser Class 2
Output <1 mW
Laser Wavelength 635 nm
Dimensions 10.5″ x 10.5″ x 6″

Looking for more Stabila lasers?  Click here.

Additional information

Weight 10 lbs
