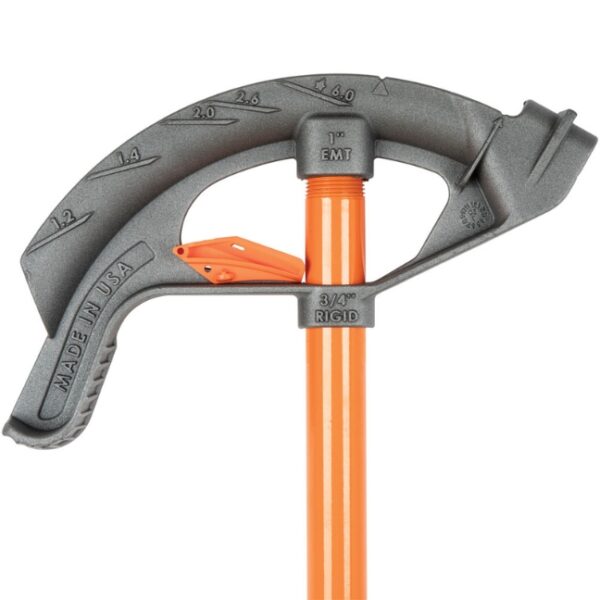

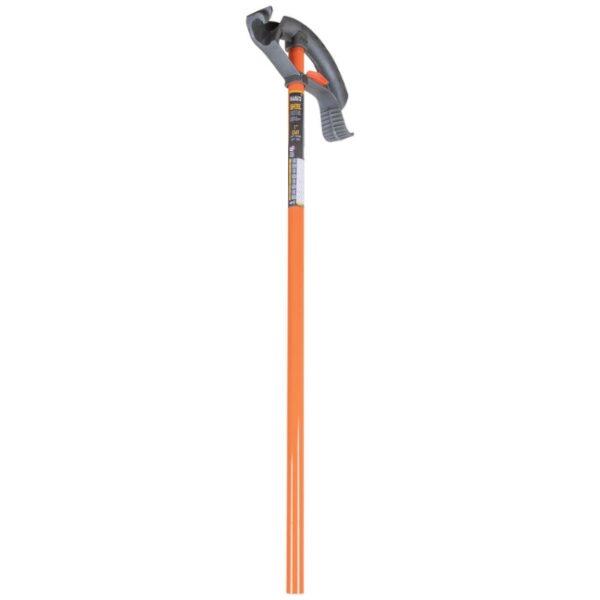

Klein 51605 1″ Iron Conduit Bender with ANGLE SETTER

Description

Klein 51605 1″ Iron Conduit Bender with ANGLE SETTER

The Klein 51605 1″ Iron Conduit Bender with ANGLE SETTER includes:

• 51610 Bender Head
• 51425 Handle
• 51613 Angle Setter

Features:

• Catalog no. 51605
• Designed to bend:
  • • • 1″ EMT
      • 3/4″ Rigid Conduit
      • 3/4″ IMC Conduit
• 1″ Assembled Iron Bender includes:
  • • • Klein’s unique Angle Setter™ technology for time-saving, repeated accurate bends
      • Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)
• Heavy duty cast ductile iron has the durability needed on the job site
• Bold cast markings and symbols:
  • • • For fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends
• Wide foot pedal provides excellent stability, leverage, and comfort
• Interior hook surface prevents conduit from rolling or twisting during bends
• Includes markings for:
  • • • 10º, 22.5º, 30º, 45º, 60º and corresponding offset multipliers
• With 51613 Klein 1″ Angle Setter™:
  • • • Creates a hard stop for quick, accurate, and consistent bends

Specifications:

• Type: Iron Conduit Bender
• Application: Bending Conduit
• Special Features: Patent Pending Angle Setter™ Technology
• Overall Length: 2.5” (6.4 cm)
• Overall Height: 52.1” (132.3 cm)
• Overall Width: 12.9” (32.9 cm)
• Material: Iron
• Handle Length: 44” (111.8 cm)
• Stub-Up Height: 8” (20.3 cm)
• Thinwall/EMT: 1” (2.5 cm)
• Rigid/IMC: 3/4” (1.9 cm)
• Conduit Size: 1”
• Conduit Type: EMT
• Marking:
  • • • 10°, 22°, 30°, 45°, 60°
• Included:
  • • • 51610 Bender Head; 51425 Handle; 51613 Angle Setter™
• Weight: 11.8 lb (5.4 kg)
