Klein 3223 Spud Wrench 1-1/2″ Nominal Size for 7/8″ Square and Regular Nuts
The Klein 3223 Spud Wrench 1-1/2″ Nominal Size for 7/8″ Square and Regular Nuts:
Features:
- Product no. 3223
- Nominal Size: 1-5/16″
- For use with 7/8″ Square and 7/8″ Regular nuts
- Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
- Extra heavy-duty head area gives maximum strength and durability

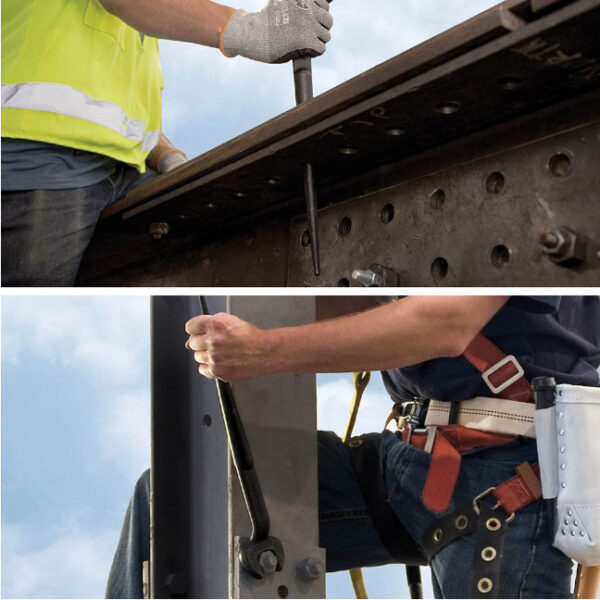

- Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
- Extra-large hub area works on larger diameter holes better than other wrenches
- Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
- American Bridge design
- Made in USA
Specifications:
- Type: Spud Wrench
- Application: Connecting Steel Members
- Overall Dimensions:
-
-
- Length: 17.375” (44.1 cm)
- Height: 1” (2.54 cm)
- Width: 3” (7.6 cm)
-
-
- Material: Alloy Steel
- Finish: Black Oxide with a Rust Preventative
- Nut Type: U.S. Regular
- Square Nut Size: 7/8” (2.2 cm)
- Regular Nut Size: 7/8” (2.2 cm)

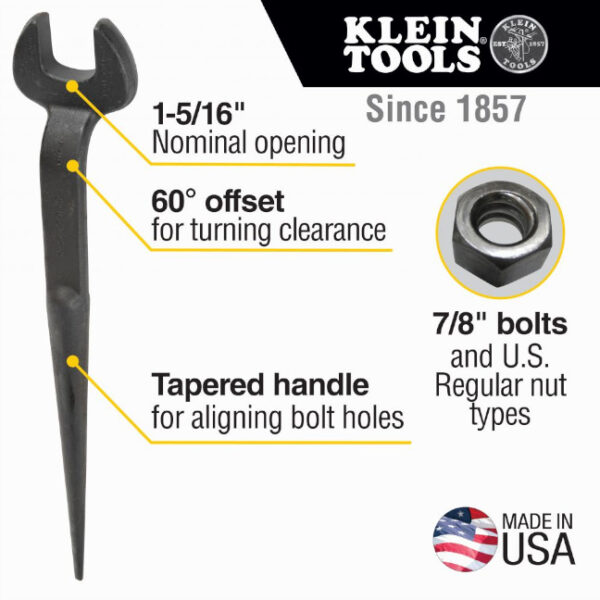

- Nominal Opening: 1-5/16” (3.3 cm)
- Head Width: 3” (7.6 cm)
- Taper Diameter: 1-1/8” to 9/32” (2.9 to 0.7 cm)
- Offset Angle: 60°
- Weight: 2.9 lb (1.3 kg)
Klein Spud Wrench available sizes – sold separately |
|||||
| Catalog no. | Nut Type | Square Nut Size | Regular Nut Size | Heavy Nut Size | Nominal Opening |
| 3210 | U.S. Regular & Heavy | n/a | 9/16″ | 1/2″ | 7/8″ |
| 3211 | U.S. Heavy | n/a | n/a | 5/8″ | 1-1/16″ |
| 3212 | U.S. Heavy | n/a | n/a | 3/4″ | 1-1/4″ |
| 3213 | U.S. Heavy | n/a | n/a | 7/8″ | 1-7/16″ |
| 3214 | U.S. Heavy | n/a | n/a | 1″ | 1-5/8″ |
| 3219 | U.S. Regular & Heavy | 7/16″ | 1/2″ | 7/16″ | 3/4″ |
| 3220 | U.S. Regular | 1/2″ | n/a | n/a | 13/16″ |
| 3221 | U.S. Regular | 5/8″ | n/a | n/a | 1″ |
| 3222 | U.S. Regular | 3/4″ | 3/4″ | n/a | 1-1/8″ |
| 3223 | U.S. Regular | 7/8″ | 7/8″ | n/a | 1-5/16″ |
| 3224 | U.S. Regular | 1″ | 1″ | n/a | 1-1/2″ |
| 3231 | Utility | n/a | 5/8″ | 9/16″ | 15/16″ |
| 3232 | Utility | n/a | n/a | 5/8″ | 1-1/16″ |
| Spud Wrenches with Tether Hole for Working at Height | |||||
| Catalog no. | Nut Type | Square Nut Size | Regular Nut Size | Heavy Nut Size | Nominal Opening |
| 3212TT | U.S. Heavy | n/a | n/a | 3/4″ | 1-1/4″ |
| 3213TT | U.S. Heavy | n/a | n/a | 7/8″ | 1-7/16″ |
| 3214TT | U.S. Heavy | n/a | n/a | 1″ | 1-5/8″ |
