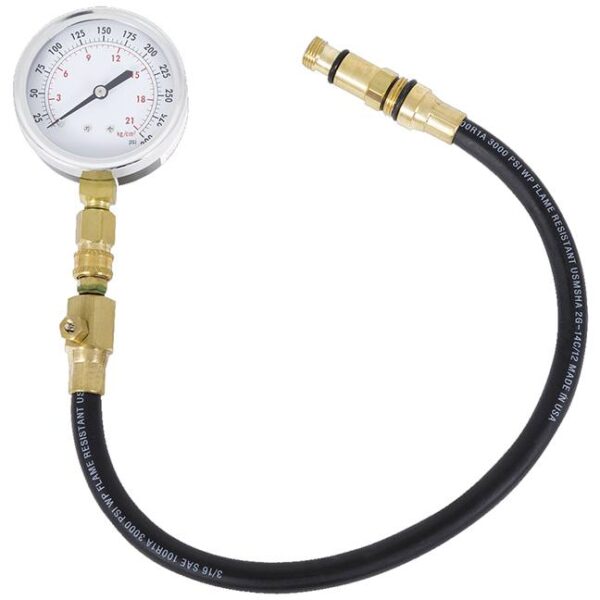

Jet H1730 Quick Disconnect Compression Tester for Gas Engines

Description

Jet H1730 Quick Disconnect Compression Tester for Gas Engines

The Jet H1730 Quick Disconnect Compression Tester for Gas Engines:

• Product no. H1730
• Gauge Range 0-300 lbs./square inch (0-21 kg/cm2)
• Quick disconnect flexible hose
• A quality, accurate tester
• Angle construction tip permits easy reading on back cylinders
• Heavy duty neoprene hose bends in all directions to reach hard to get at cylinders
• Handy side release valve allows multiple readings on the same cylinder without removing the tester from the cylinder
• Hose assembly disconnects easily from the gauge head
• Allows more flexibility and easier installation into spark plug holes

Also available: H1731 (same as H1730 without quick disconnect flexible hose)

Replacement Parts:

• H1730B Quick Coupler
• H1730C Hose Assembly – 8-1/4″ with 14 & 18mm Adaptors – Long Reach Adaptor 14mm (use H1730D)
• H1730D Long Reach Adaptor: 14mm
• H1734O Release Valve Assembly
• H1734X Y Gauge Head (H1730, H1731, H1726, H3041) Gauge Range 0-300 lbs./square inch (0-21 kg/cm2)

Accessories:

• H1730E Adaptor 10mm
• H1730F Adaptor 12mm
• H1730H Adaptor 16mm Ford™ Triton Engines
