Description

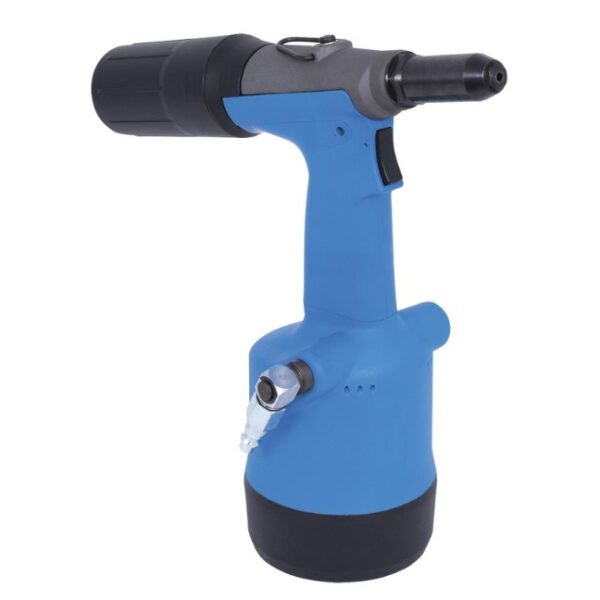

Jet 409009 1/4″ Air Riveter – Heavy Duty
The Jet 409009 1/4″ Air Riveter features:
- Product no. 409009
- Model AR14HDA
- Designed for professional automotive and light to medium duty industrial applications
- For use on steel and aluminum pop rivets up to 1/4″
- Rugged composite outer shell maximizes durability, protection and service life
- 20mm stroke sets rivets in one stroke for superior efficiency
- Adjustable spent mandrel collection bottle has screw-on attachment for ease of use
- Comes with 4 nose pieces for a wide range of applications
- Air relief valve prevents overloading to prolong riveter service life
- Convenient, high quality, see-through collection bottle
- Working air pressure: 72 PSI to 100 PSI
Looking for pop rivets? Click here.
| JET Air Riveter Specification & Comparison Chart | ||||||
| Product no. | 409001 | 409002 | 409005 | 409007 | 409008 | 409009 |
| Model no. | AR316HD | AR14HD | AR316HDA | AR316SD | AR14SD | AR14HDA |
| JET Rating | Heavy Duty | Heavy Duty | Heavy Duty | Super Heavy Duty | Super Heavy Duty | Heavy Duty |
| Rivet Capacity | 3/16″ | 1/4″ | 3/16″ | 3/16″ | 1/4″ | 1/4″ |
| Pull Force (lbs) | 2,150 | 2,750 | 1,940 | 2,600 | 3,520 | 2,248 |
| Stroke | 0.629″ (16 mm) | 0.625″ (16 mm) | 9/16″ (14.29 mm) | 0.78″ (20 mm) | 1.02″ (26 mm) | 13/16″ (21 mm) |
| Average Air Consumption (CFM) | 0.7 | 0.81 | 4.0 | 5.5 | 10.1 | 4.5 |
| Min. Hose Size | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ |
| Air Inlet (NPT) | 1/4″ | 1/4″ | 1/4″ | 1/4″ | 1/4″ | 1/4″ |
| Nose Piece | 3/32″(2.4 mm) | 5/32″ (4.0 mm) | 3/32″ (2.4 mm) | 3/32″ (2.4 mm) | 5/32″ (4.0 mm) | 1/8″ ( 3.2 mm) |
| 1/8″ ( 3.2 mm) | 3/16″ (4.8 mm) | 1/8″ (3.2 mm) | 1/8″ (3.2 mm) | 3/16″ (4.8 mm) | 5/32″ (4.0 mm) | |
| 5/32″ (4.0 mm) | 1/4″ (6.4 mm) | 5/32″ (4.0 mm) | 5/32″ (4.0 mm) | 3/16″ (4.8 mm) | 3/16″ (4.8 mm) | |
| 3/16″ (4.8 mm) | – | 3/16″ (4.8 mm) | 3/16″ (4.8 mm) | – | 3/16″ (4.8 mm) | |
| Sound Pressure (dBA) | 75 | 75 | – | 75 | 75 | – |
| Vibration (m/s²) | 2.5 | 2.5 | – | 2.5 | 2.5 | – |
| Weight | 3.08 lbs (1.39 kg) | 3.3 lbs (1.49 kg) | 3.3 lbs (1.49 kg) | 3.3 lbs (1.49 kg) | 3.3 lbs (1.49 kg) | 2.42 lbs (1.1 kg) |
